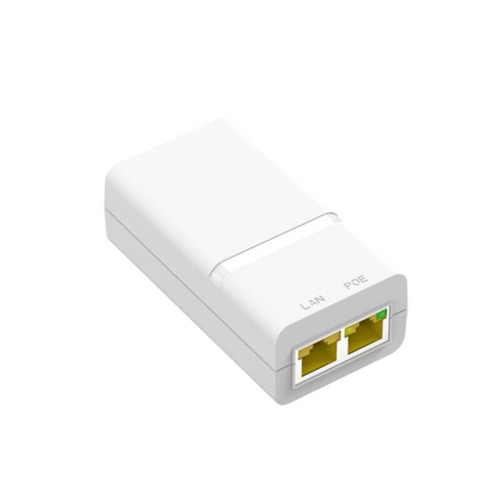

Single Port Midspan Injector 15W Indoor PoE Injector Procept indoor passive PoE injector 24Vdc 0.64A
from
$15.62
Ex Tax: $15.62
- Stock: In Stock
- Model: JE00006490
- Weight: 5.80g
- SKU: JE00006490
Products Sold: 0
Product Views: 87
Ask a Question About This Product
- Description
Designed for the passive powered 15W PoE Powered Devices (PDs), such as IP Cameras,wi-reless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.
Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with a Wall-plug mouted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables
| Parameter | Description |
| Key Features | Single-port |
| 10/100/1000Mbps | |
| Input 100-240Vac 0.5A 50/60Hz | |
| output 24Vdc 0.64A 15W | |
| Power pin: 4/5+,7/8- | |

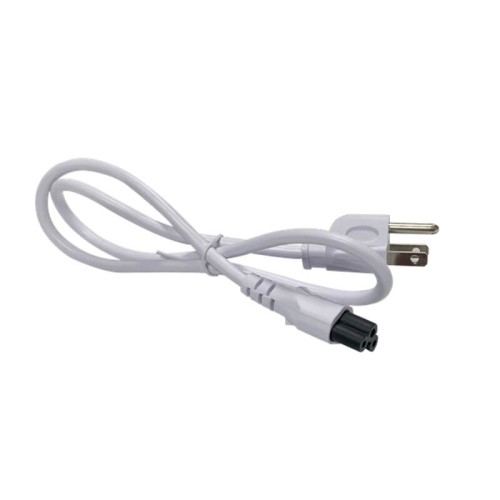

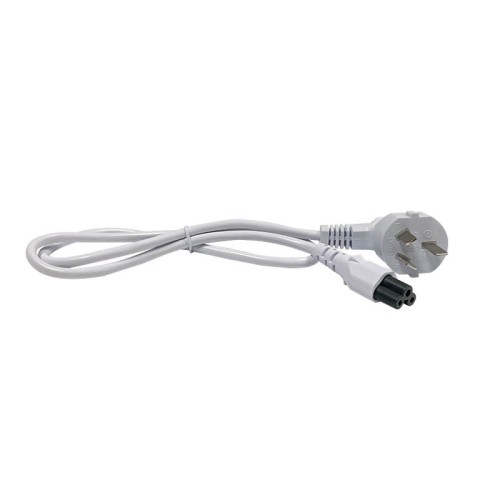

| Power cable with US/EU optional | |

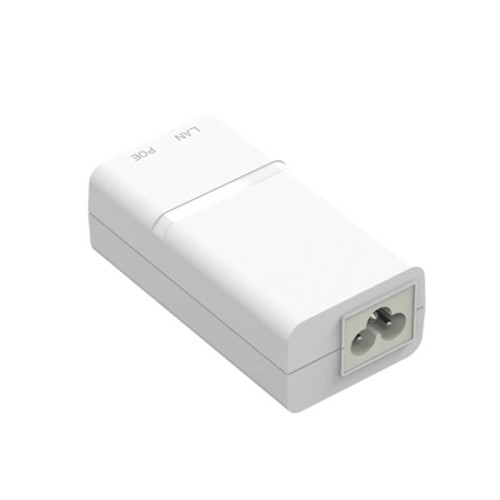

| AC input: 3 wire | |
| Ports condition | LAN Port*1, PoE Output Port*1，AC inout *1 |
| Regulatory Compliance | passive |
| RoHS Compliance | |
| WEEE Compliance | |
| Pass-Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: |
| 4/5(+), 7/8(-) | |
| Output Power Voltage: 24Vdc | |
| User Port Power: 15W Guaranteen | |
| Input | Input Voltage: 100-240Vac |
| Frequency: 50/60Hz Typ | |
| Working Environment | Operating Temperature: 0℃ to 40℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Storage Temperature: -20℃ to 70℃ | |
| Storage Humidity: 10% to 90%, non-condensation | |
| Operating Altitude: up to 2000meters | |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV |
| Line-Line 1.2/50us (8/20us): 1KV | |
| Mechanical Characteristics | Case: Plastic |
| Color: White | |
| Mounting: Wall-plug | |
| IP Rated: IP40 | |
| Connectors: Shielded RJ-45*2 | |
| Size: 85*46*30mm | |
| Weight: 100g(0.27lb) | |

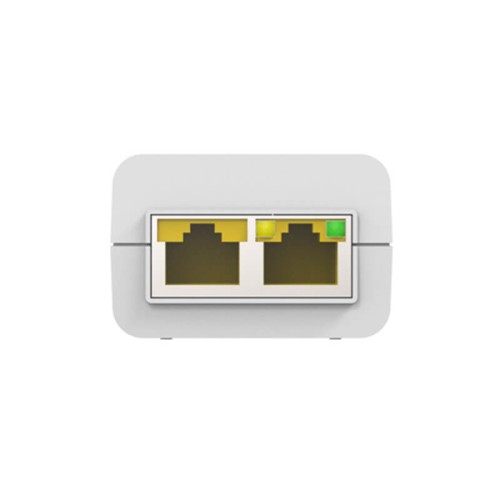

| LED Indicator | Power Indicator: Yellow |
| PoE Load Indicator: Green | |
| Safety Approvals | CE, FCC |
