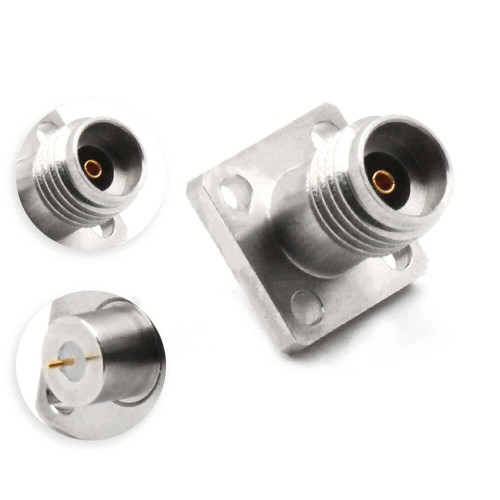

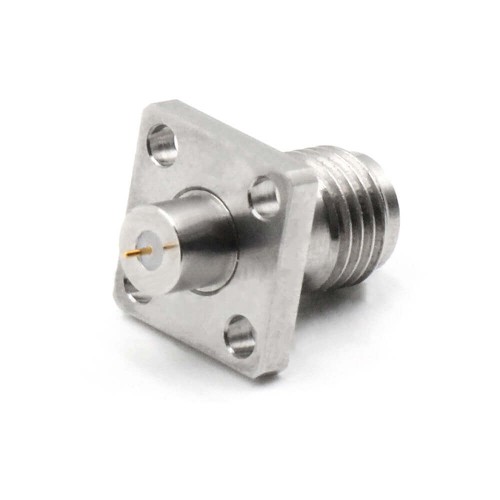

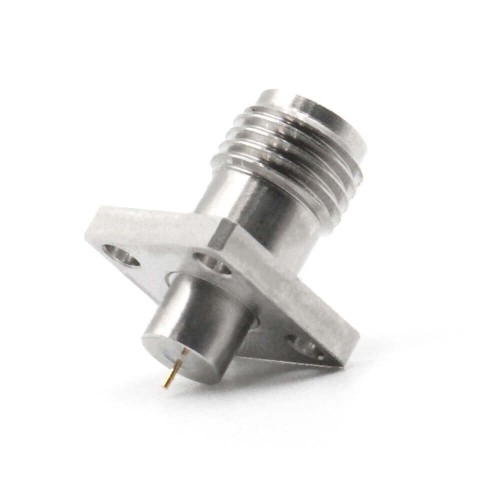

Stainless Steel 2.92Mm Female 4-Hole Flange Bulkhead Mount Dc To 40Ghz Rf Coax Connector

Stainless Steel 2.92Mm Female 4-Hole Flange Bulkhead Mount Dc To 40Ghz Rf Coax Connector
Stainless Steel 2.92Mm Female 4-Hole Flange Bulkhead Mount Dc To 40Ghz Rf Coax Connector
Stainless Steel 2.92Mm Female 4-Hole Flange Bulkhead Mount Dc To 40Ghz Rf Coax Connector
Stainless Steel 2.92Mm Female 4-Hole Flange Bulkhead Mount Dc To 40Ghz Rf Coax Connector
Stainless Steel 2.92Mm Female 4-Hole Flange Bulkhead Mount Dc To 40Ghz Rf Coax Connector
Stainless Steel 2.92Mm Female 4-Hole Flange Bulkhead Mount Dc To 40Ghz Rf Coax Connector
Stainless Steel 2.92Mm Female 4-Hole Flange Bulkhead Mount Dc To 40Ghz Rf Coax Connector

Features:

  • 2.92mm Connector, Female, Straight, 4-Hole Flange, Stainless Steel,High frequency RF coax connector;
  •  Operation from DC to  40 GHz
  • Impedance: 50 Ω
  • Compatible with 3.5mm and SMA Connector Series
  • Dielectric: Air
  • Ruggedized Construction for Repeatability and Reliability
  • Outer conductor diameter: 2.92 mm
  • Interface Standards: IEEE 287-2007
- Write a review
from
$38.97
Ex Tax: $38.97
  • Stock: In Stock
  • Model: SDSUB-4-F-FF-S-SS
  • SKU: SDSUB-4-F-FF-S-SS
Products Sold: 0
Product Views: 235
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Steel
Installation characteristics 4 Hole Flange
Gender Female
Direction Straight
Installation method PCB Mount
  • Description

Appliance:

  • Test and measurement systems
  • Network routers and switches
  • RFID
  • Instrumentation test fixtures equipment
  • Semiconductor ATE test boards
  • Radar systems



Stainless Steel 2.92Mm Female 4-Hole Flange Bulkhead Mount Dc To 40Ghz Rf Coax Connector

Electrical Characteristics

  • Impedance：50 ohm
  • Frequency Range:DC to 40  GHz
  • Insertion Loss:.04 √ f
  • Shielding Effectiveness:≥ 100 dB

Mechanical Characteristics

  • Mating Torque:5 - 7 in - lbs
  • Connector Durability：500 mating cycles min
  • Inter-mate ability:SMA, 3.5mm

Environmental Characteristics

  •  Temperature Range：-55°C to +135°C



Material:

Part Material Finish
Body Stainless Steel sliver
Center Contact Pin  cube gold plated gold
Insulator  PEI white
