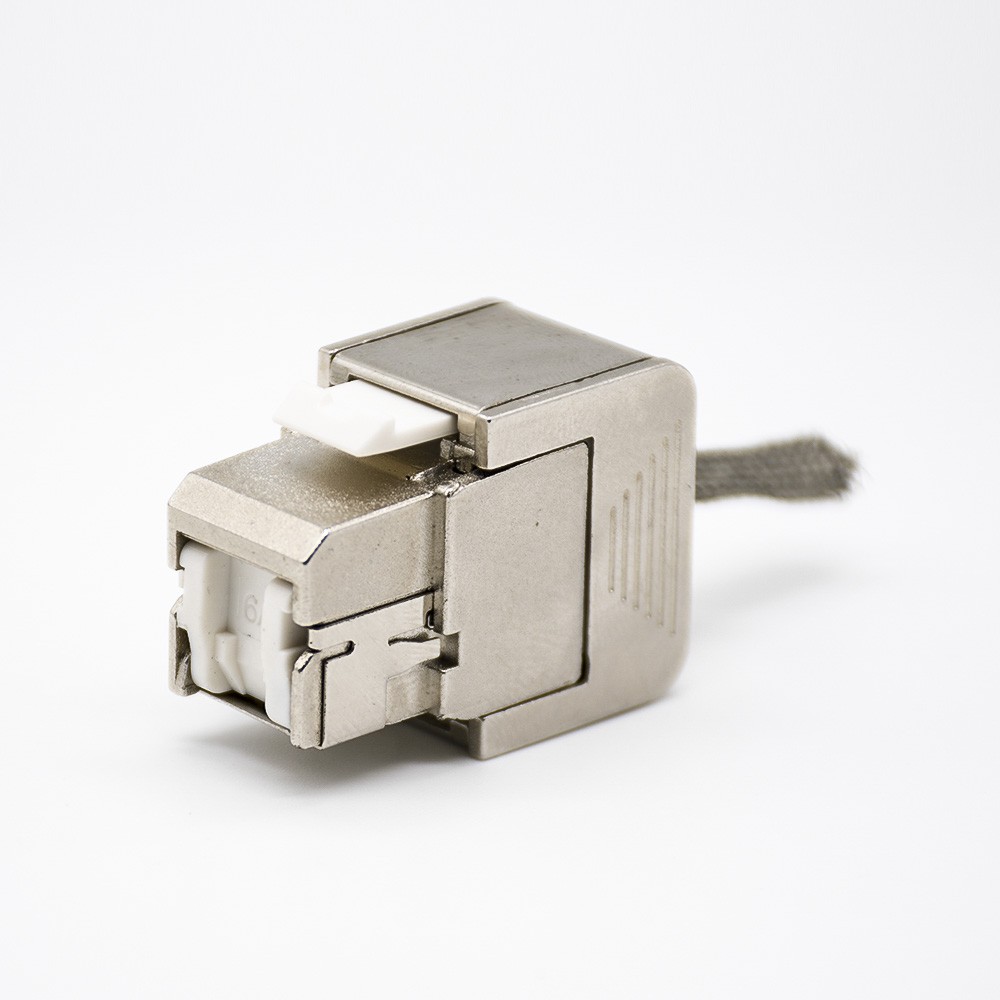

Cat6a Shielded RJ45 Connector 180 Degree FTP Toolless Shielded Keystone Jack Zinc Alloy
from
$2.92
Ex Tax: $2.92
10 or more $2.69
30 or more $2.48
50 or more $2.34
100 or more $2.19
200 or more $2.04
- Stock: In Stock
- Model: JE00006087
- SKU: JE00006087
Products Sold: 0
Product Views: 26
Ask a Question About This Product
- Description
Applications:
- Routers
- Ethernet switches
- ATMs
- Point of sales terminals
- Vending machines
- Set-top boxes
- Technology analysis equipment
- Laptops
- Phone line security systems
Electrical Characteristics
- Current rating: 3A continuous
- Insulation resistance: 500MΩ min.
- Dielectric withstanding voltage: 1500V min.
- Voltage rating 1000V rms
Mechanical Characteristics
- Mating force: 5N to 20N
- Unmating force: 8N to 20N
- Durability:10,000 mating cycles
Environmental Characteristics
- Operating Temperature: -40°C~ + 120°C
Material:
| Part | Material | Finish |
| Housing | Nylon 46 glass filled | UL94V-0 |
| Shield | Copper Alloy | Nickel Plating |
| Contact | Copper Alloy | Au over nickel |
