DC Supply 1a single port midspan Injector 48v/0.32a 48vdc Injector Switching 30W Power Adapter
from
$19.07
Ex Tax: $19.07
- Stock: In Stock
- Model: SPOWER-1-M-WALL-NA-IP40-RO
- Weight: 5.80g
- SKU: SPOWER-1-M-WALL-NA-IP40-RO
Products Sold: 0
Product Views: 185
Ask a Question About This Product
- Description
Designed for the passive powered 28W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.
Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with a Wall-plug mouted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables
| Parameter | Description |
| Key Features | Single-port |
| 10/100/1000Mbps | |
| Input 100-240Vac 0.5A 50/60Hz | |
| output 24Vdc 1.25A 28W | |
| Power pin: 4/5+,7/8- | |

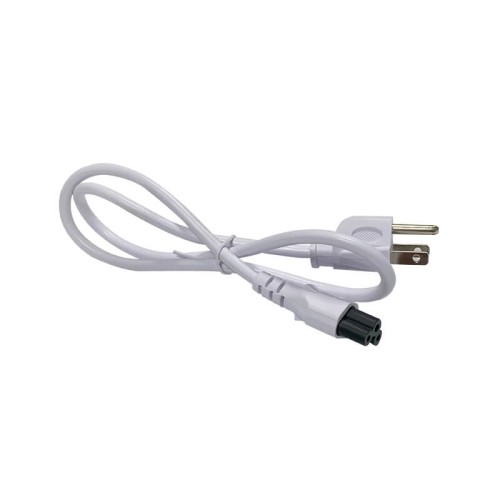

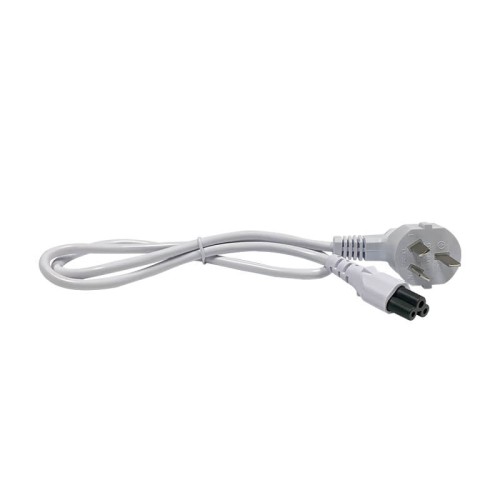

| Power cable with US/EU optional | |
| AC input: 3 wire | |
| Ports condition | LAN Port*1, PoE Output Port*1，AC input *1 |
| Regulatory Compliance | passive |
| RoHS Compliance | |
| WEEE Compliance | |
| Pass-Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: |
| 4/5(+), 7/8(-) | |
| Output Power Voltage: 48Vdc | |
| User Port Power: 28W Guarantee | |
| Input | Input Voltage: 100-240Vac |
| Frequency: 50/60Hz Typ | |
| Working Environment | Operating Temperature: 0℃ to 40℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Storage Temperature: -20℃ to 70℃ | |
| Storage Humidity: 10% to 90%, non-condensation | |
| Operating Altitude: up to 2000meters | |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV |
| Line-Line 1.2/50us (8/20us): 1KV | |
| Mechanical Characteristics | Case: Plastic |
| Color:White | |
| Mounting: Wall-plug | |
| IP Rated: IP40 | |

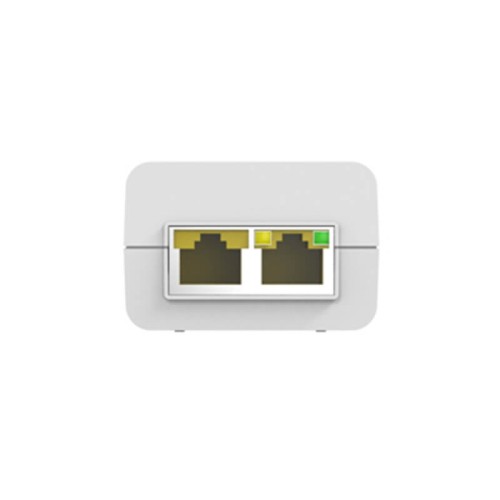

| Connectors: Shielded RJ-45*2 | |
| Size: 92*51*32mm | |
| Weight: 130g(0.35lb) | |
| LED Indicator | Power Indicator: Yellow |
| PoE Load Indicator: Green | |
| Safety Approvals | CE, FCC |
