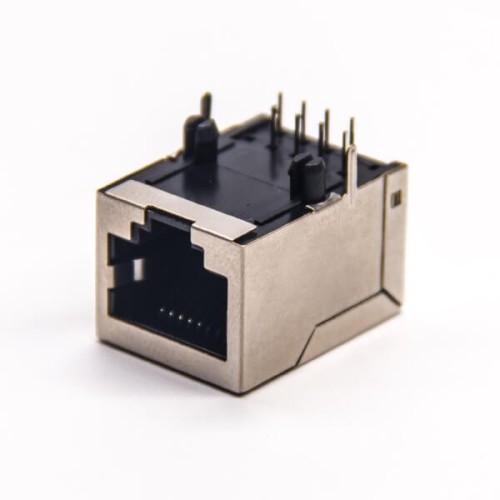

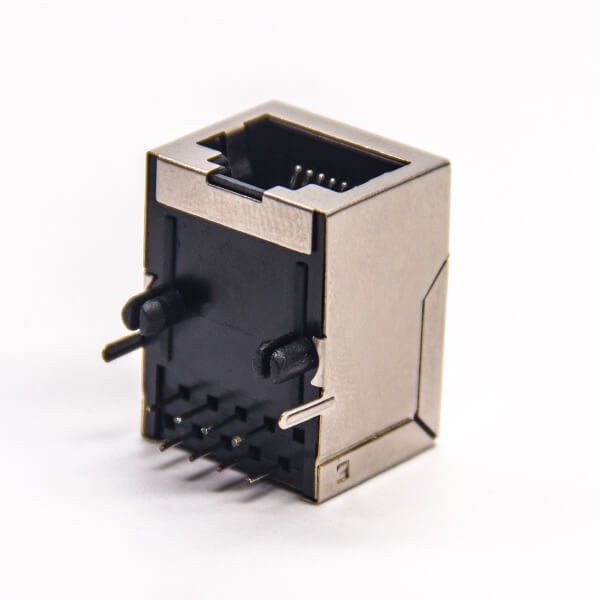

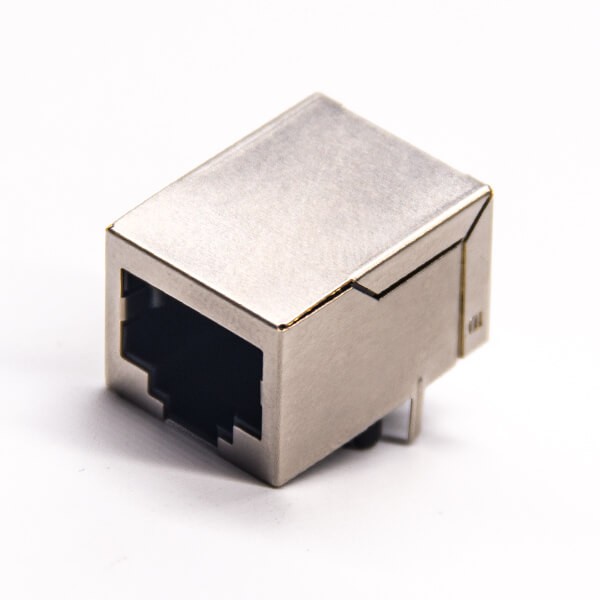

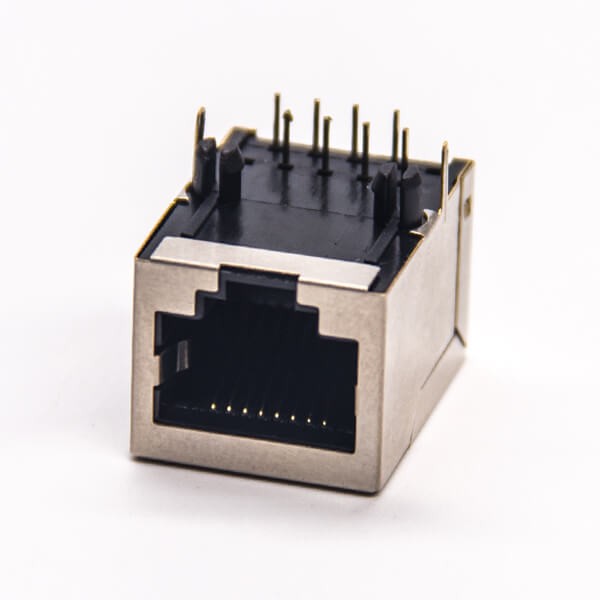

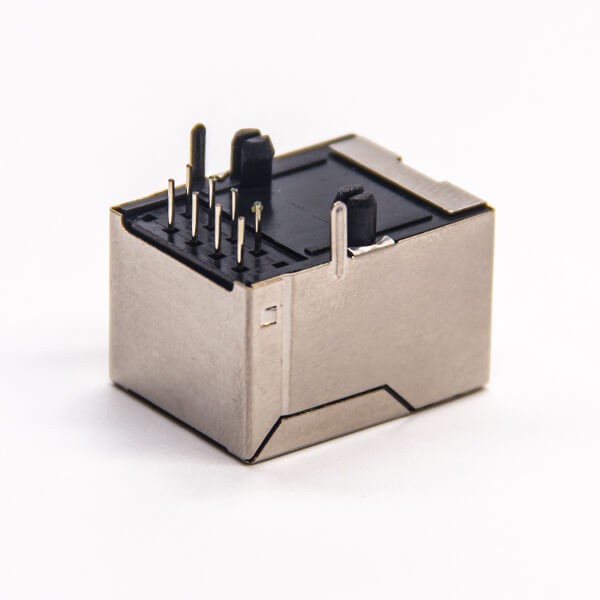

8p8c RJ45 Modules Network Connector Shielded Jack Through Hole

Applications:

• Routers
• Ethernet switches
• ATMs
• Point of sales terminals
• Vending machines
• Set-top boxes
• Technology analysis equipment
• Laptops
• Phone line security systems

Electrical Characteristics

• Current rating: 3A continuous
• Insulation resistance: 500MΩ min.
• Dielectric withstanding voltage: 1500V min.
• Voltage rating 1000V rms

Mechanical Characteristics

• Mating force: 5N to 20N
• Unmating force: 8N to 20N
• Durability:10,000 mating cycles

Environmental Characteristics

• Operating Temperature: -40°C~ + 120°C

Material:
