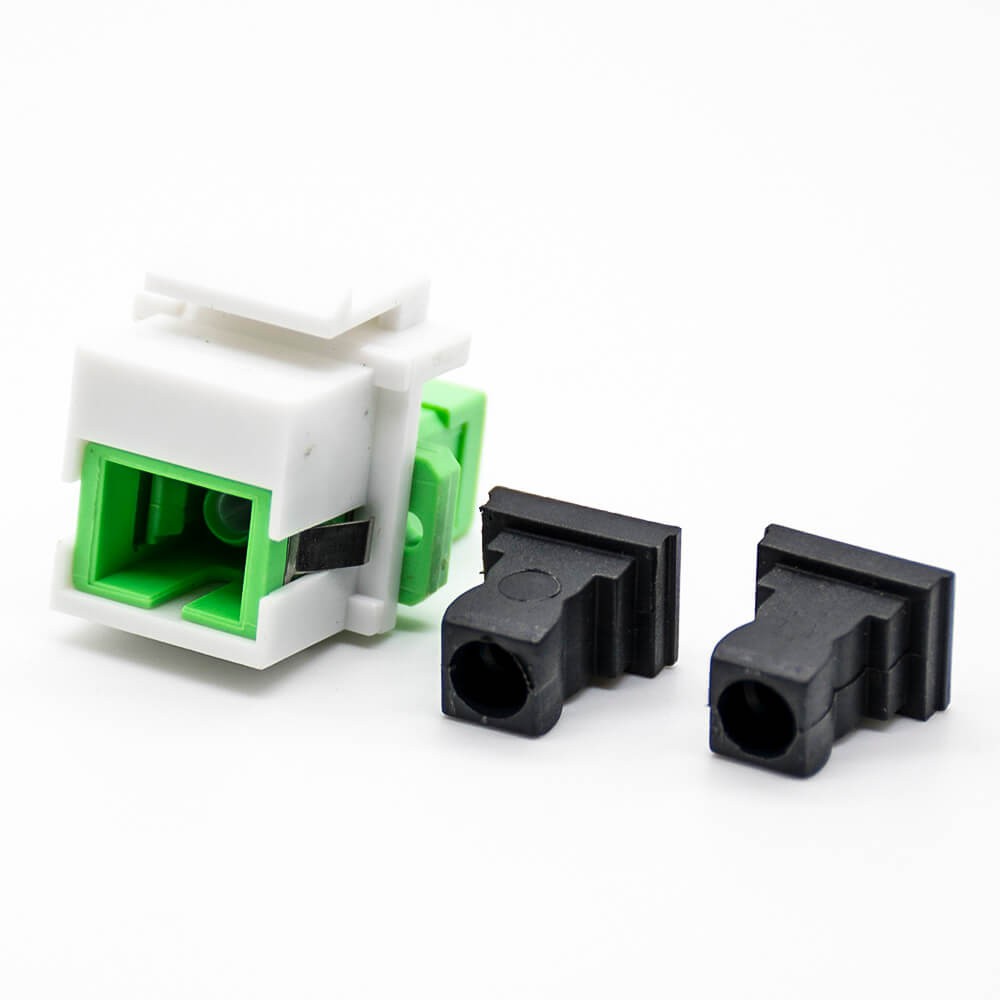

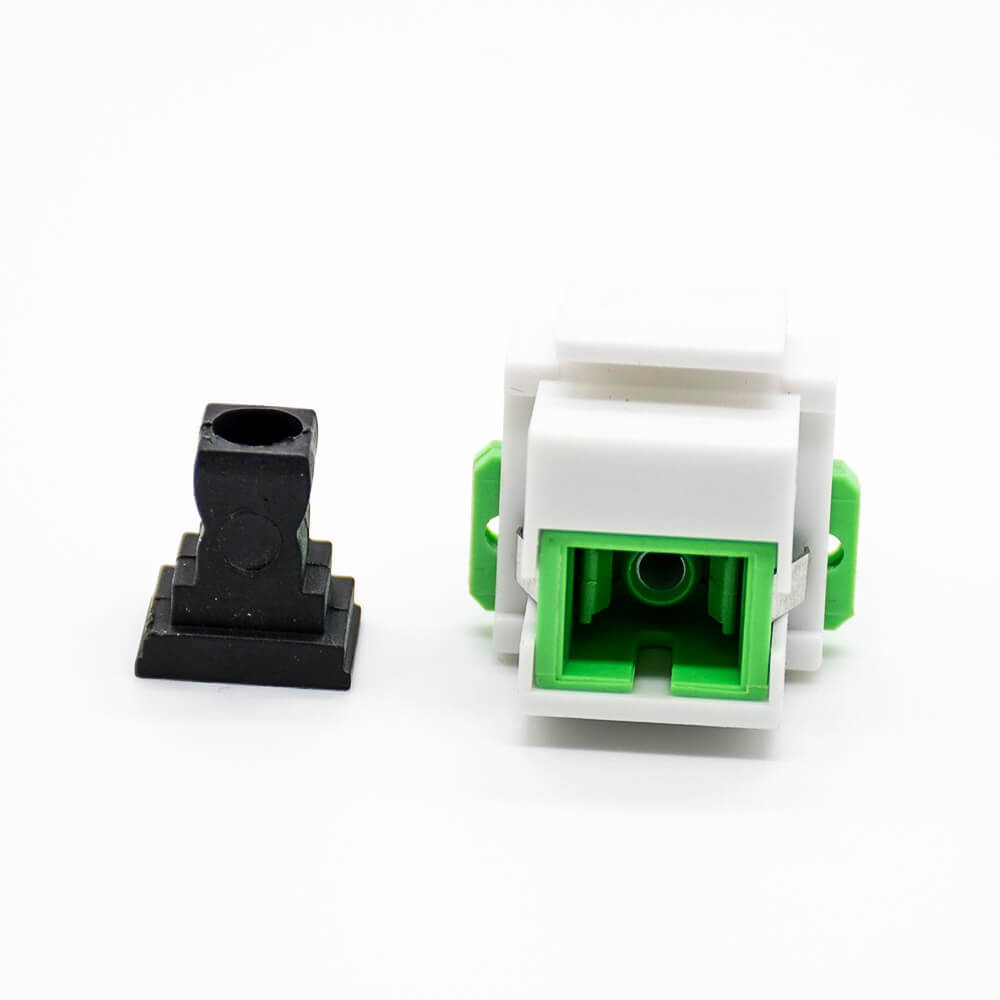

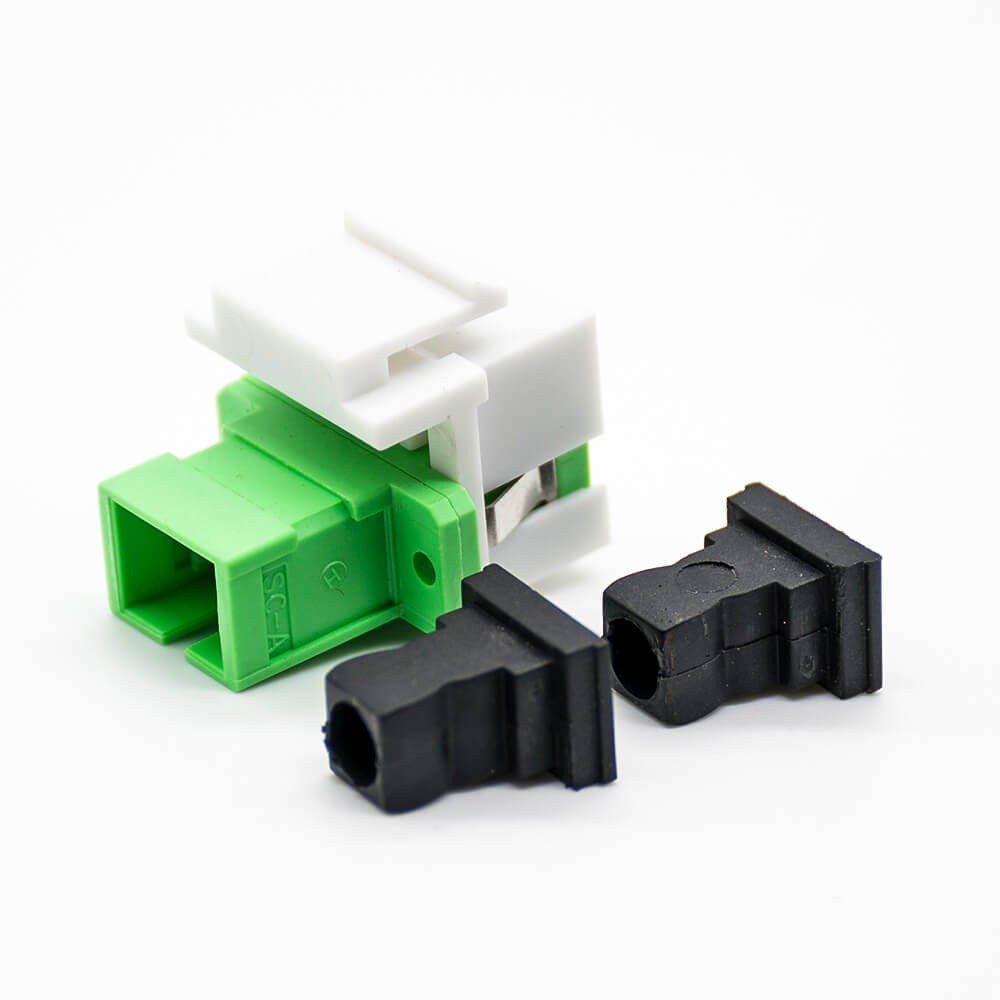

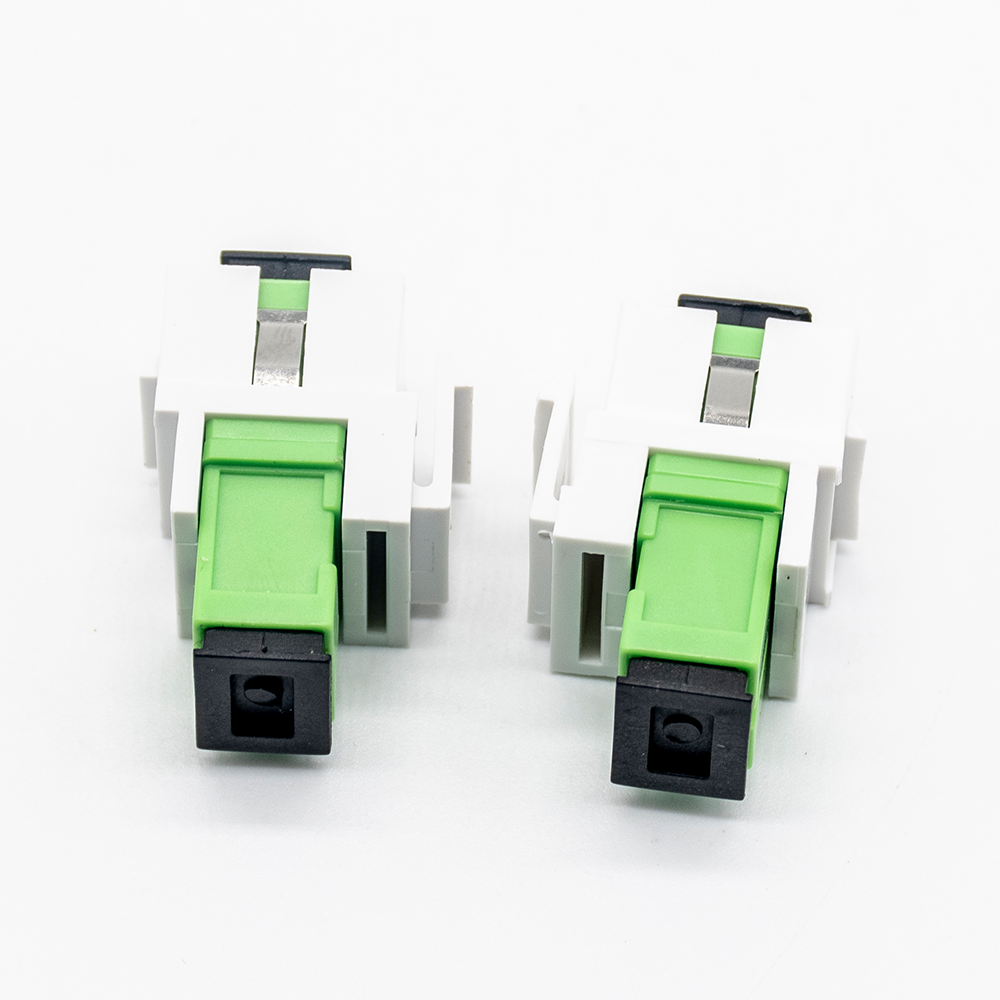

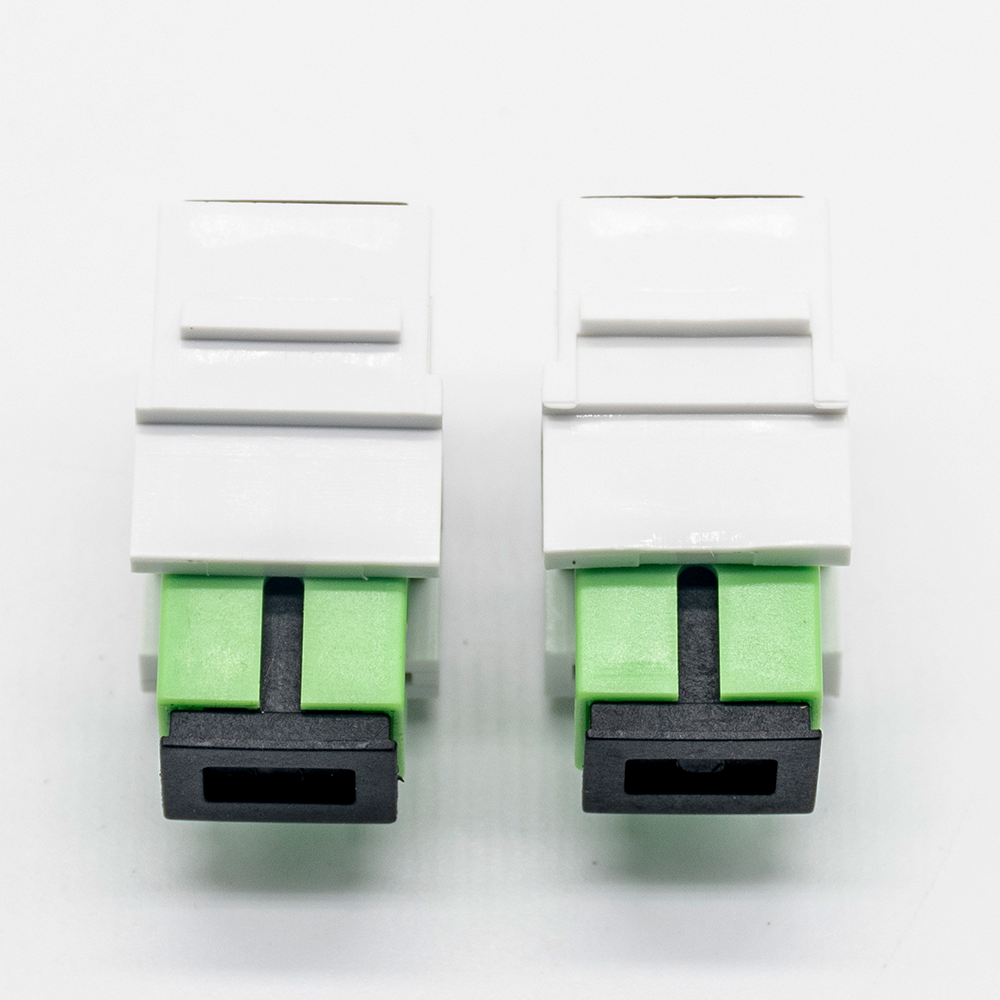

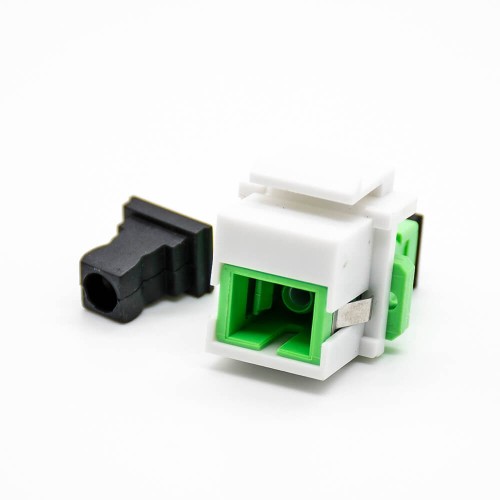

Optical Module SC-SC Through Hole Unshielded Panel Mount

Applications:

• Household appliances
• Transmission of Electrical Signals
• lighting
• medical equipment
• communications and networking equipment
• instrumentation
• TV camera vedio speaker computer or mobile phone charger

Environmental Characteristics

• Voltage Rating: 30V
• Current Rating:0.5A
• Contact Resistance Less 50M ohm
• Insulation Resistance Over 100M ohm
• Dielectric Withstanding: 1000V 50/60hz last for 1min
• Withstand Voltage AV250V(50Hz)/Min
• Electrical Life：Over 800000 times
• Supply Voltage: -0.5 to 7.0V maximum.
• Input Voltage: -0.5 to +0.5V maximum.
• Operating Temperature: -20 deg. C to +70 deg. C maximum.
• Storage Temperature: -30 deg. C to +80 deg. C maximum.
• Soldering Temperature: 260 deg. C maximum.

Mechanical Characteristics

• Installation angle : Straight/ Right Angle
• Connector Mounting Type :  Panel Mount/PCB Mount
• Mechanical Life：Over 10000 times
• Insertion Force: 5.9N minimum, 39.2N maximum.
• Withdrawal Force: 5.9N minimum, 39.2N maximum.

Environmental Characteristics

• Ambient temperature:  -20°C to 80°C

Material:

• Material：Copper
