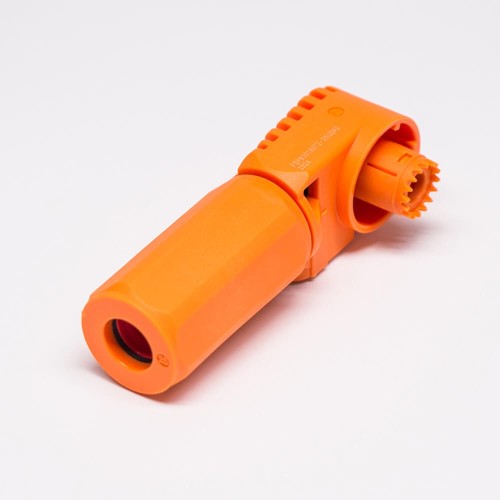

Waterproof High Current Battery Connectors Right Angle Plug Socket 6mm Orange IP67 60A Busbar Lug
from
$17.74
Ex Tax: $17.74
- Stock: In Stock
- Model: JE00010156
- Weight: 124.00g
- SKU: JE00010156
Products Sold: 0
Product Views: 191
Ask a Question About This Product
- Description
Applications:
- BMS/Energy Storage
- EV/HEV
- Rail Mass Transit
- Process Control/Automation
- Heavy Equipment
How To Order:
Packing Delivery:
Application:
| Specifications | |
| Rated Voltage | 1000V/DC |
| Rated Current | From 60A to 500A MAX |
| Withstand Voltage | 2500V AC |
| Insulation Resistance | ≥1000MΩ |
| Cable Range | 10-120m㎡ |
| Connection Type | Terminal machine |
| Mating Cycles | >500 |
| Shielding | 360° |
| IP Degree | IP67 (Mated) |
| Operating Temperature | -40℃~105℃ |
| Flammability Rating | UL94 V-0 |
| Positions | 1pin |
| Shell | PA66 |
| Contact | Cooper alloy,Silver plating |
| Specifications | |
| Rated Voltage | 1000V/DC |
| Rated Current | From 60A to 500A MAX |
| Withstand Voltage | 2500V AC |
| Insulation Resistance | ≥1000MΩ |
| Cable Range | 10-120m㎡ |
| Connection Type | Terminal machine |
| Mating Cycles | >500 |
| Shielding | 360° |
| IP Degree | IP67 (Mated) |
| Operating Temperature | -40℃~105℃ |
| Flammability Rating | UL94 V-0 |
| Positions | 1pin |
| Shell | PA66 |
| Contact | Cooper alloy,Silver plating |
