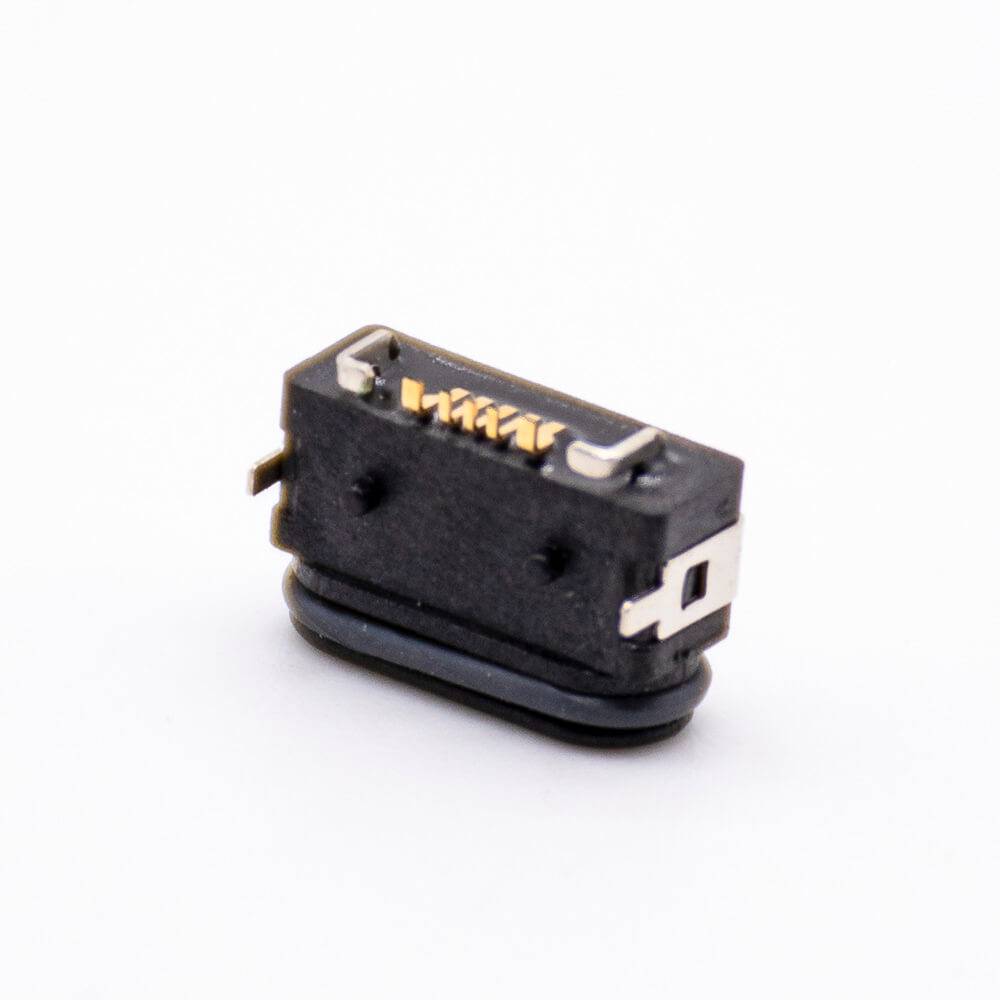

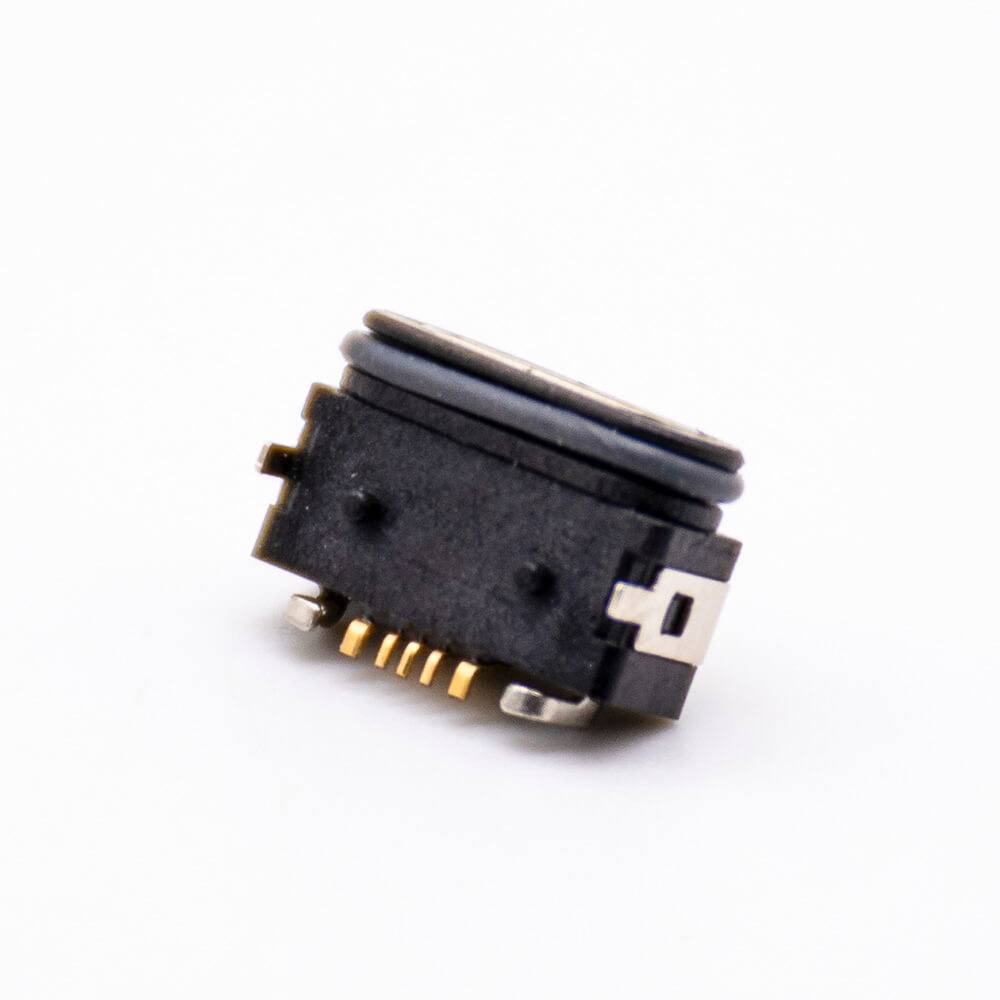

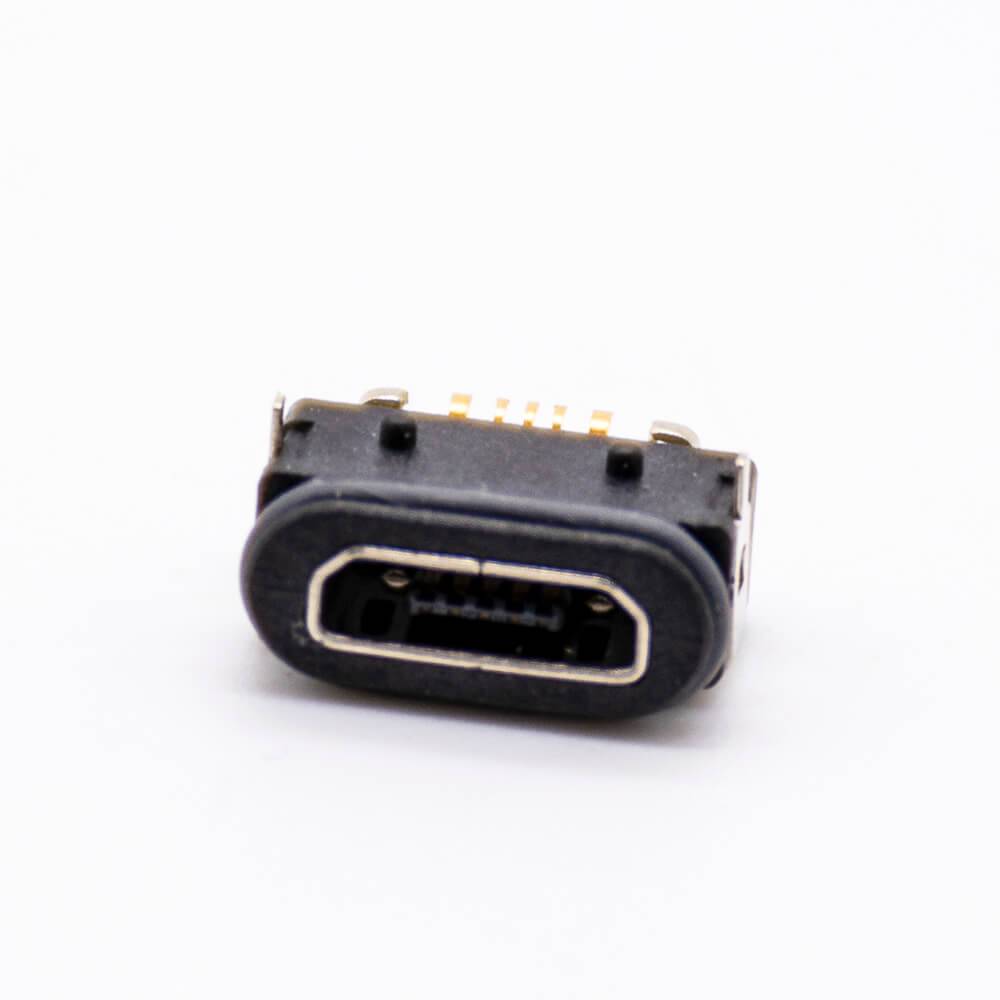

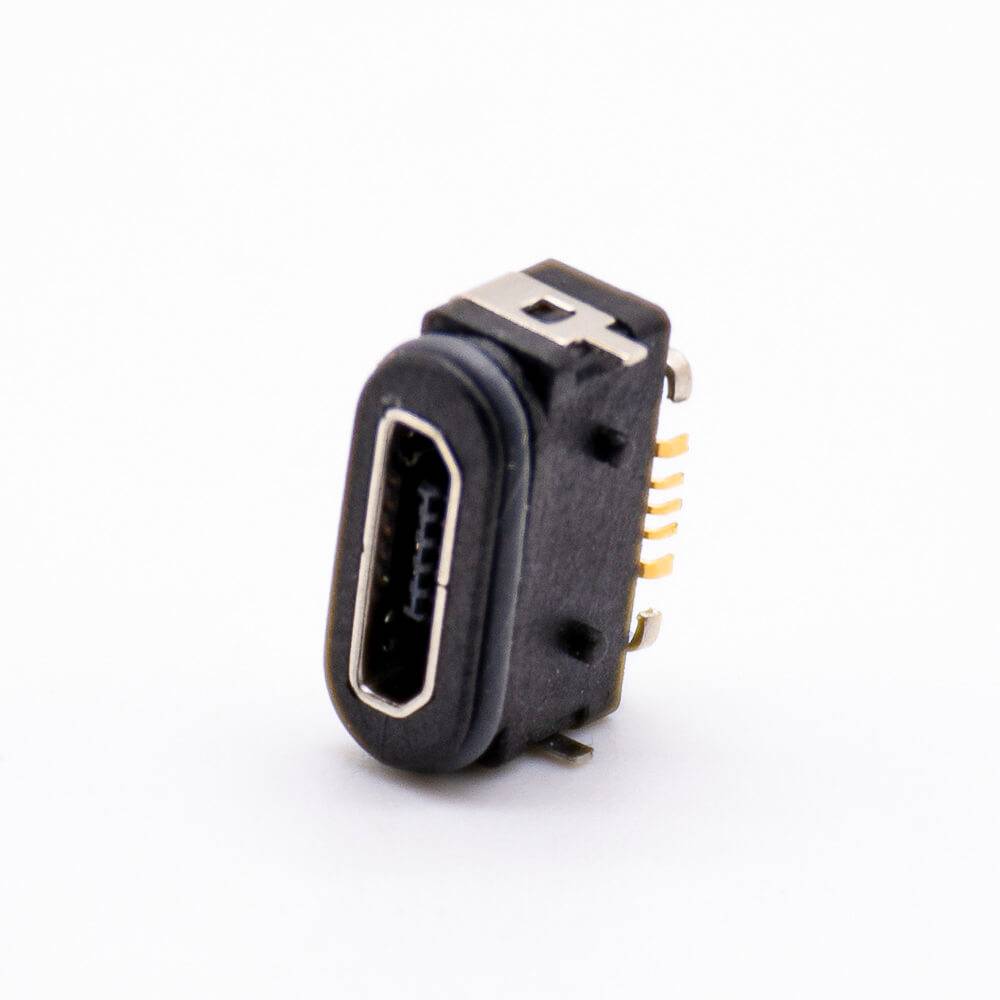

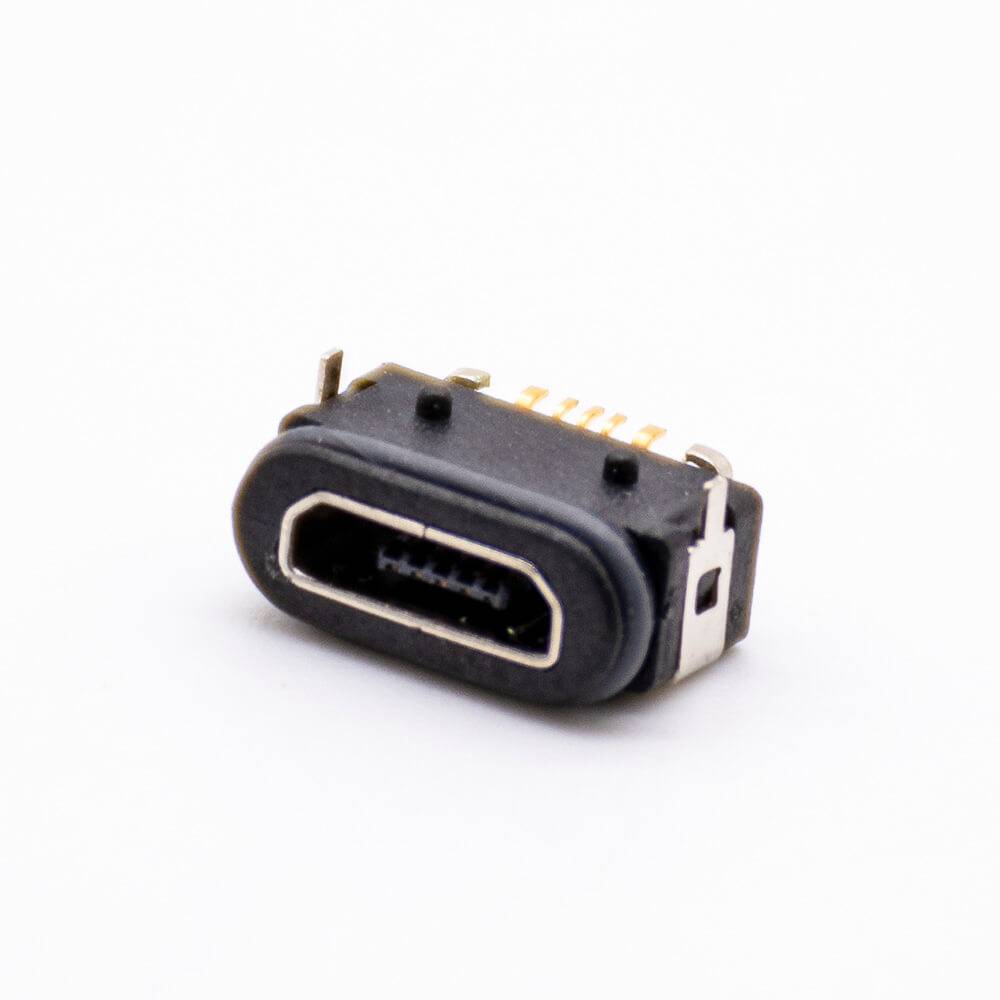

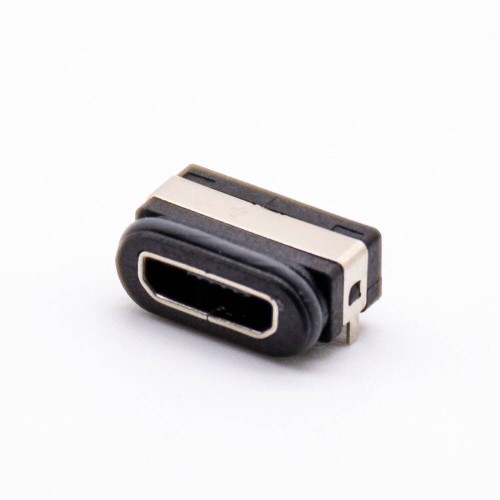

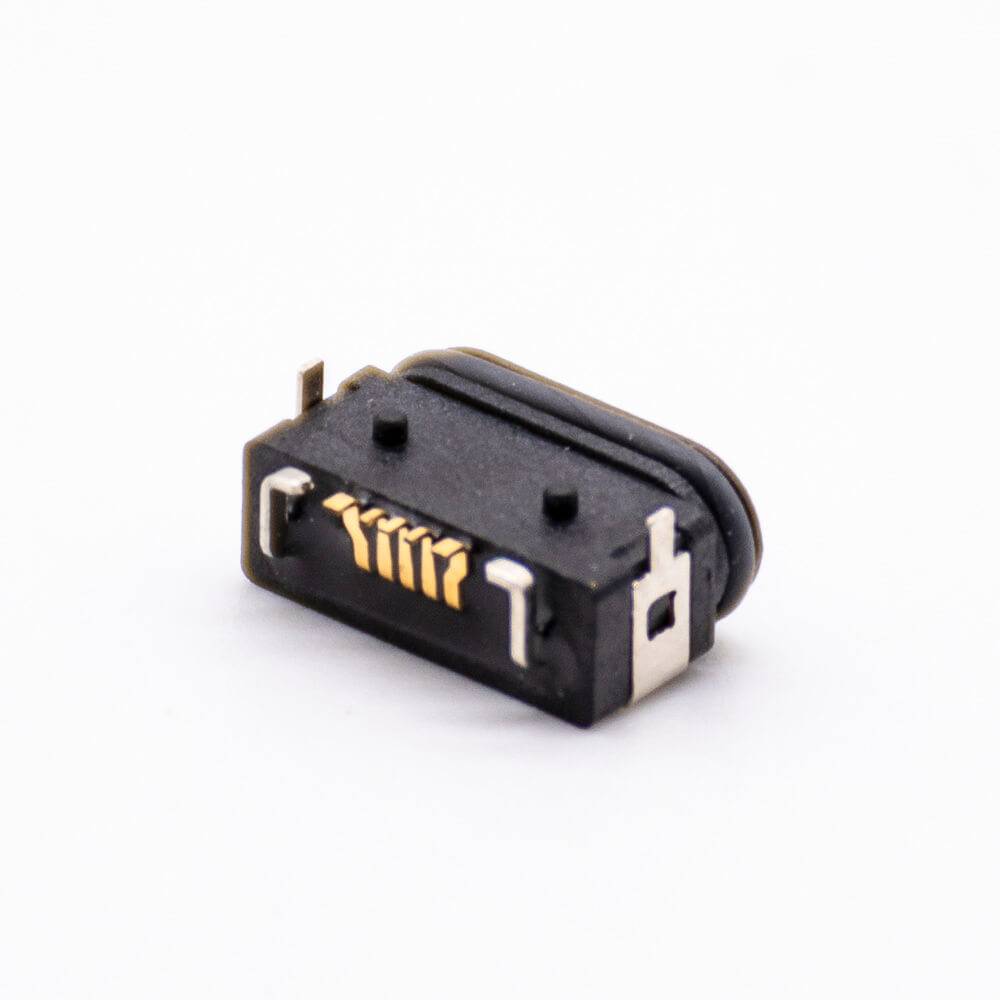

USB MICRO B Type 5Pin SMT/dIP IPX8 MICRO USB Waterproof Female Connector

MATERIAL:

• Housing: High temperature thermoplastic, complies with UL 94V-0, black colour
• Shell: Stainless steel
• Contact: Copper alloy, selective gold plated on contact area, 50u” min. nickel under-plated gold flash overall or tin 100u”min. selective plated.

Main Application:

• Charger
• Car Media Player/Hub
• Connector Hub
• Flash Disk
• Mobile Phone/Tablet
• VR Camera
• Hard Disk Drives
• Solid State Drives
• Industrial Computer
• POS System
• Technology

Electrical Characteristics:

• Low Level Contact: Initial 30mΩ max. ; Final ∆R: 20mΩ max
• Insulation: 100MΩ min.
• Current Rating/Temperature Rise: ∆T30°C max.
• Voltage: 30V DC.
• Current: Signal contacts 1.0A, Power contacts 1.8A

Mechanical Characteristics:

• Insertion Force: 35N (3.57 Kgf) max.
• Withdrawal Force: 10N (1.02 Kgf) min.
• Durability: 10,000 cycle unplug / plug 8N (0.81 Kgf) min.
• Vibration: No disturbance greater than 1μs
• Mechanical Shock: No disturbance greater than 1μs

Environmental Characteristics:

• Operating Temperature: -40°C to +85°C
• Shipping Storage Temperature: -20°C to +60°C
• Thermal Shock: No physical damage, contact resisitance ∆R=10mΩ max.
• Cyclic Temperature Humidity: No physical damage, contact resisitance ∆R=10mΩ max.
• Temperature Life: No physical damage, contact resisitance ∆R=10mΩ max.
• Salt Spray: No physical damage, contact resisitance ∆R=10mΩ max.
• Solderability: 95% of immersed area, No voids pin holes
