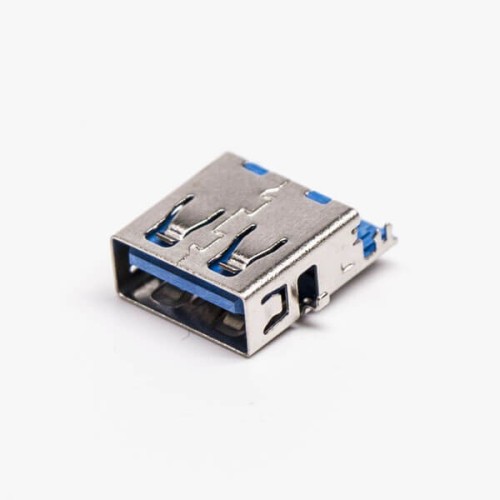

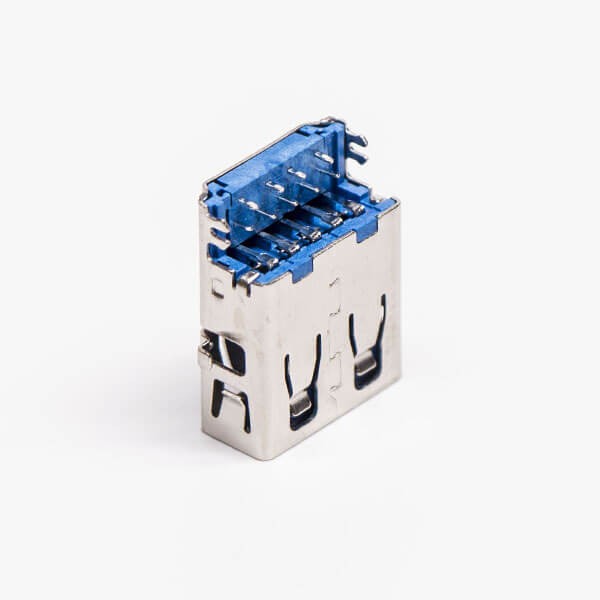

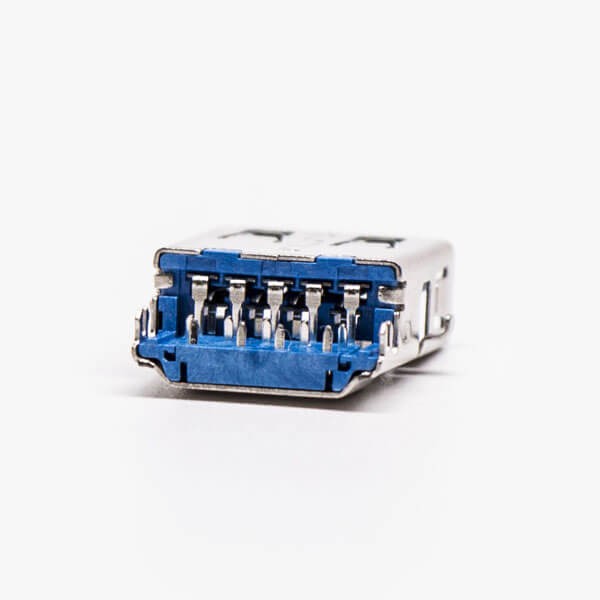

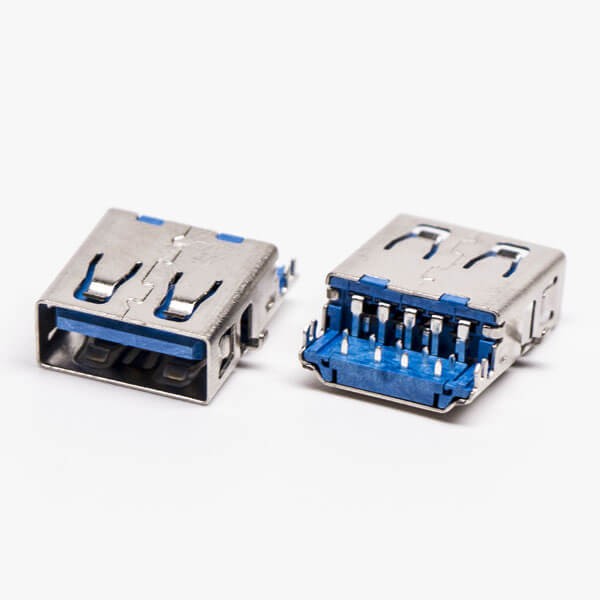

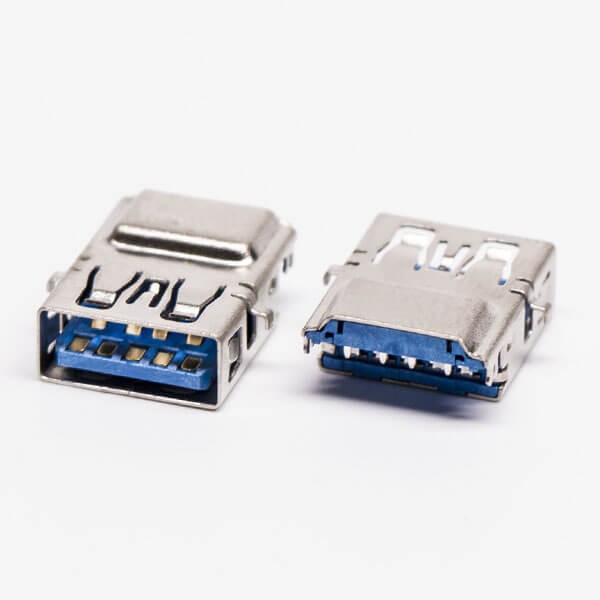

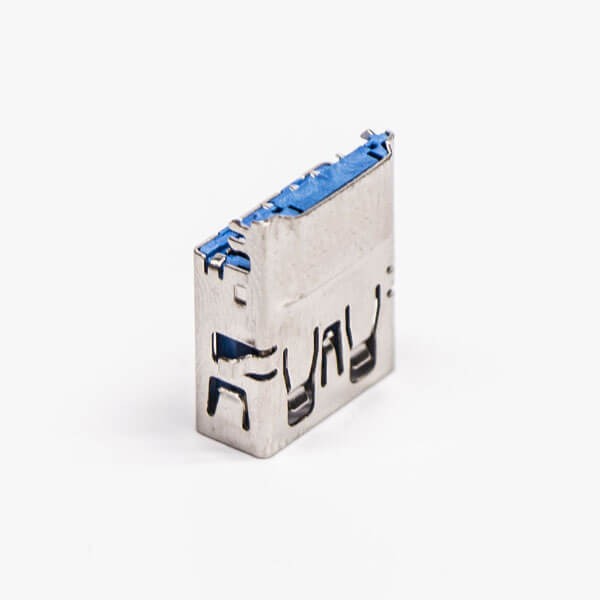

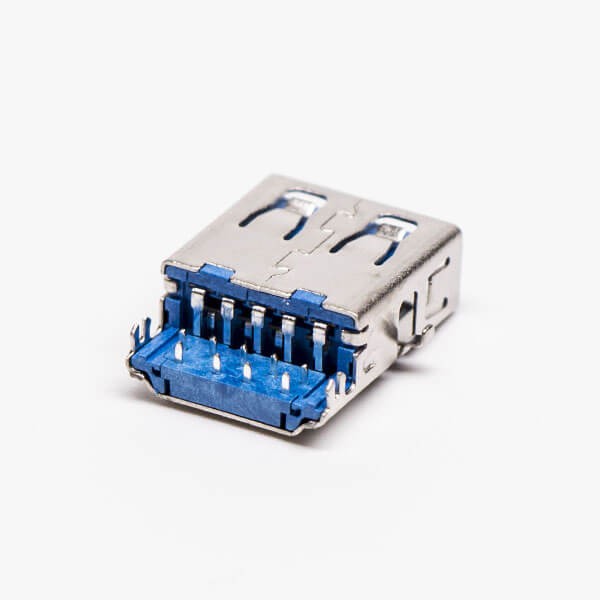

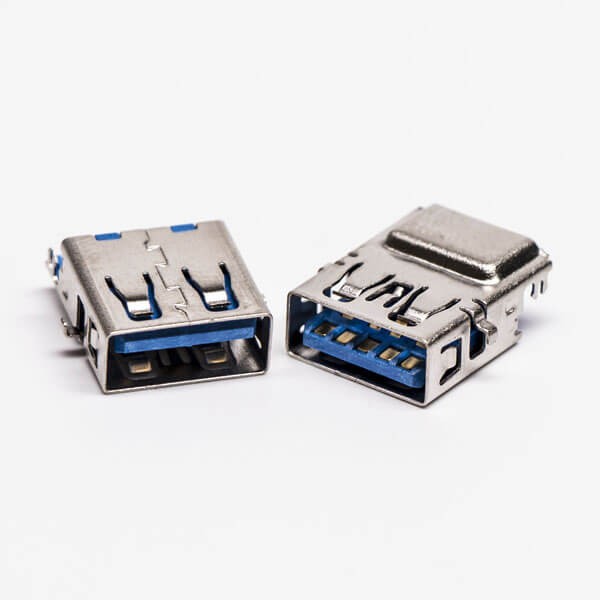

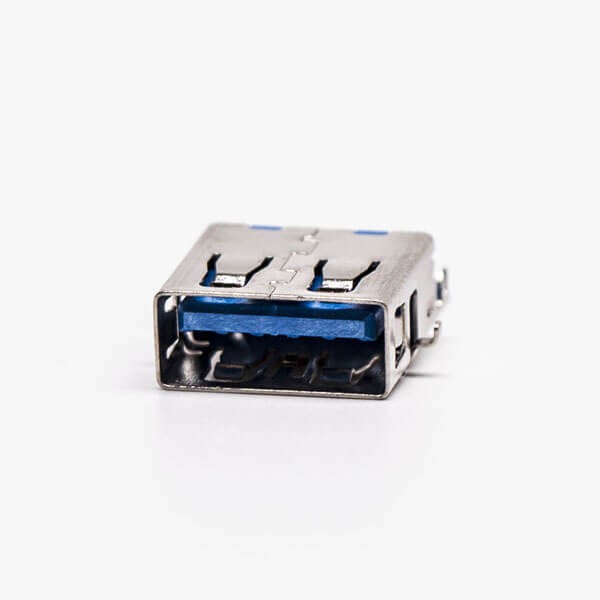

USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type

USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type

Features:

  • USB3.0,Type A,Female/Jack,Right Angled/90°,SMT,Offest Type,Blue,PCB Mount
  • Meets USB 3.0 specification;
  • Capable of transferring data up to 5Gb/s;
  • Full metal shielding;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$1.88
Ex Tax: $1.88
  • Stock: In Stock
  • Model: SUSB-3-F-FB-R-IP67-RO
  • Weight: 1.70g
  • SKU: SUSB-3-F-FB-R-IP67-RO
Products Sold: 0
Product Views: 510
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Installation characteristics Surface Mount / Offset Type
Connector Type Type A
Gender Female
Number of Positions 9 pin
Direction Right Angle
Waterproof level Not Waterproof
Port number Single
Standard USB 3.0
Installation method PCB Mount
  • Description

Applications:

  • Desktop Computer and Motherboard
  • Notebook
  • Memory Card Reader
  • Set top box
  • Consumer Solid State Drives
  • LCD TV Panel
  • Music Synthesizer

Electrical Characteristics

  • Contact Resistance:30Ω Maximum
  • Contact Current Rating:1.50A
  • Dielectric Withstanding Voltage:100V R.M.S
  • Insulation Resistance 1000 Megohms Min
  • Operating Temperoture:-45°C ~ +80°C

Mechanical Characteristics

  • Mating Force:3.57kg Max
  • Unmating Force:1.02kg Min

Environmental Characteristics

  • Operating Temperature：-45°C~ + 85°C

Material:

PartMaterialFinish
Housing High Temperature PolymerUL94V-0, Black
ShellStainless Steel------
ContactCopper Alloy
------

USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type

USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type

USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type

USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type

USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type

USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type

USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type

USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type

USB 3.0 Speed Type A Connector Female 90 Degree SMT Offset Type
