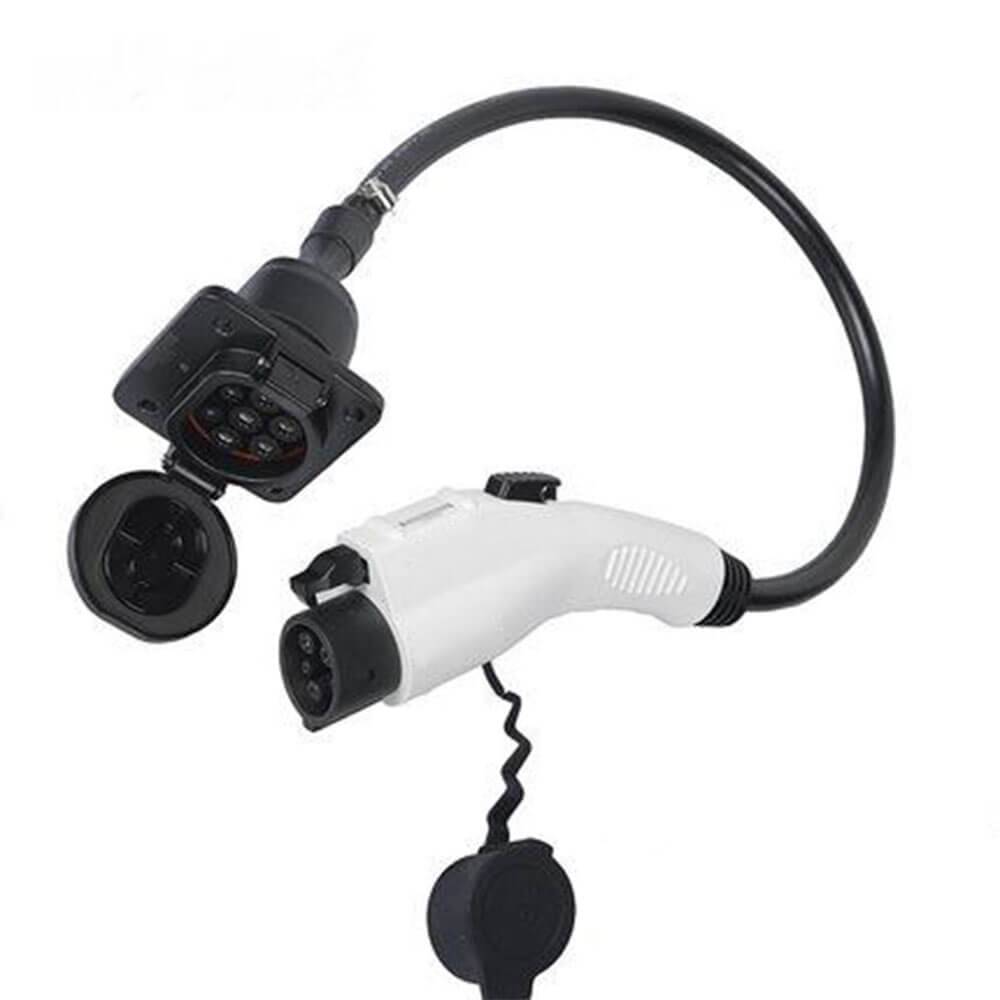

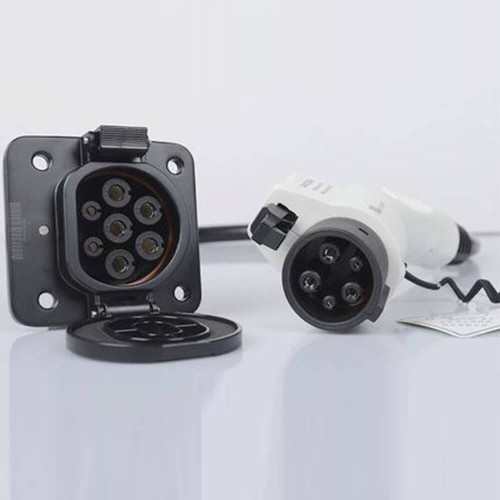

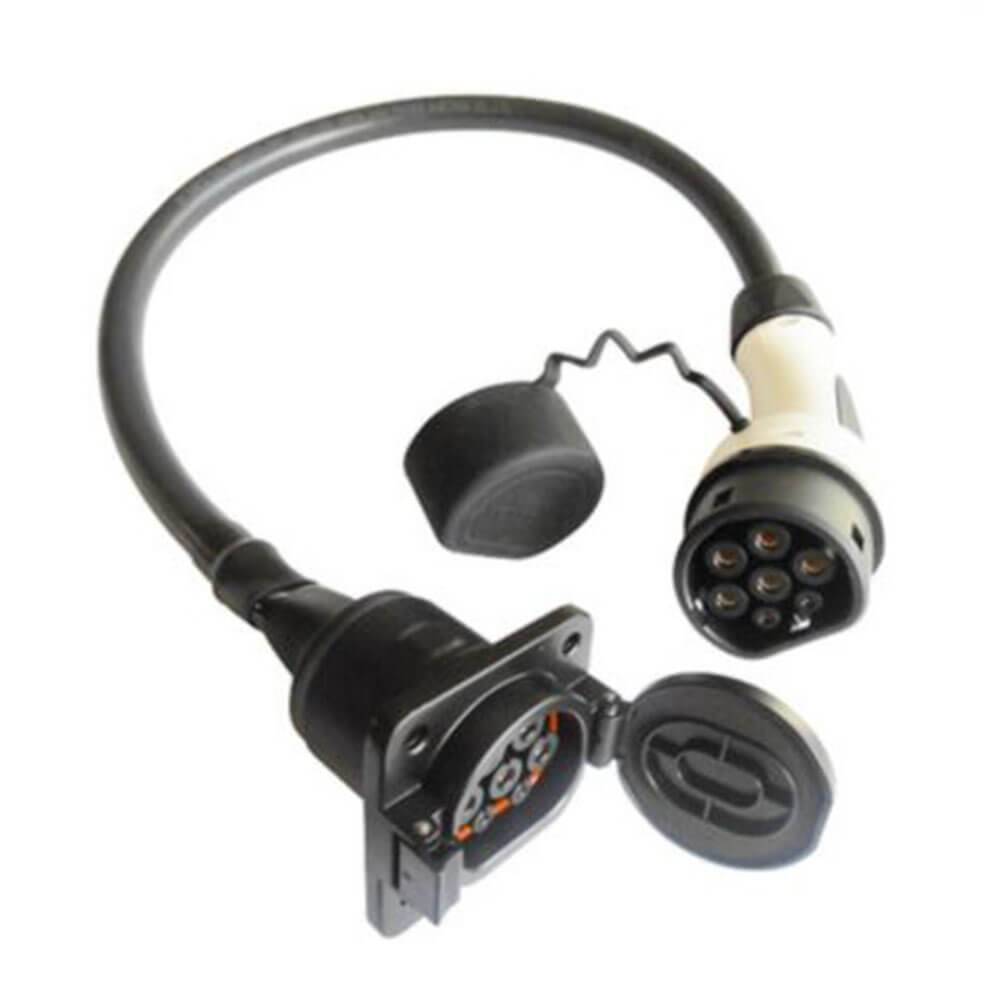

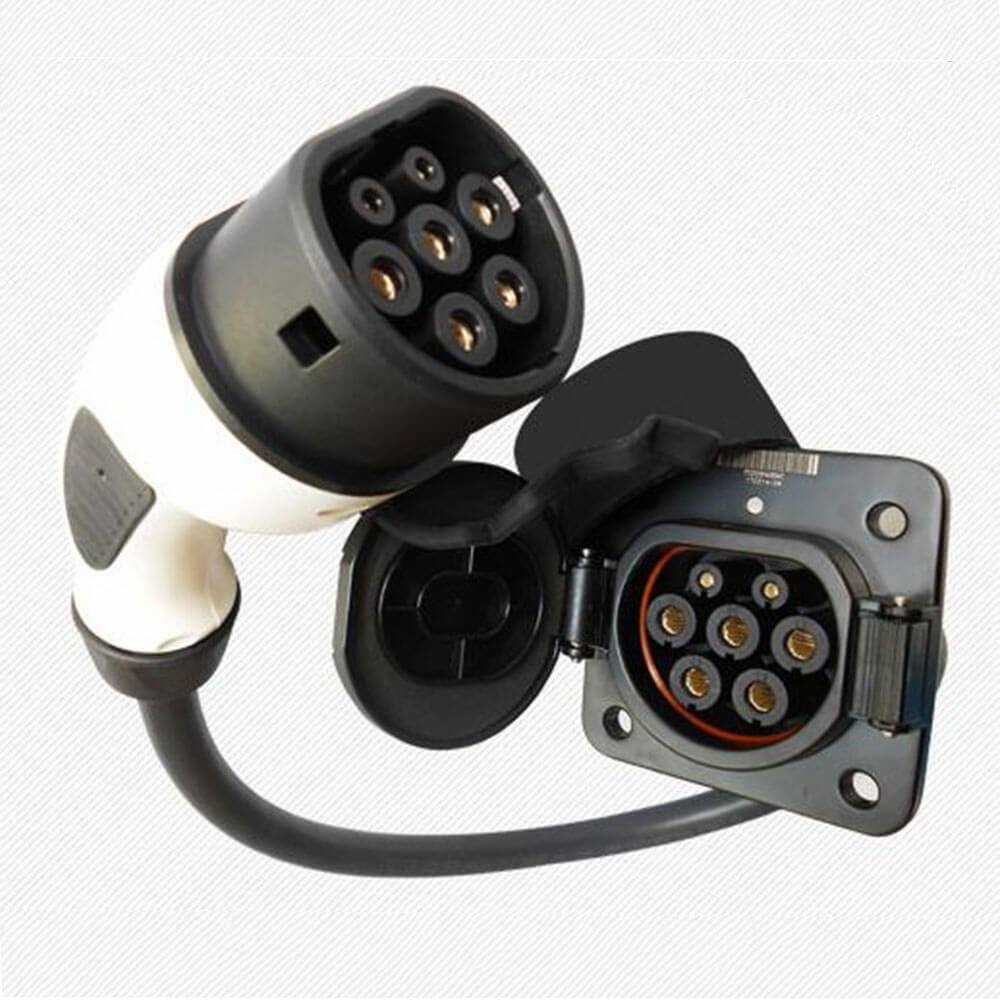

TESLA Type 2 Charging Cable 1meter Portable EV Charging Station for Benz Smart

Usage：

Used for connection between the high voltage cables inside the electric vehicle.

Application :

For high-voltage connection of car charger, high voltage distribution box, motor controller, air conditioning, PTC, battery, etc. Can also be used for short circuit control.

Techinial Datasheet:

Electrical Characteristics

• Rating current and contact resistance
• Rating voltage:250/440V AC, 750V DC
• Insulation resistance: ≥1000MΩ( AC charging connector);

Mechanical Characteristics

• Durability: exceed 10,000 times (Non-charged state)

Main Technical Specification

Material:
——Shell: Thermoplastics
——Insulator: Thermoplastic
——Sealing ring: rubber material
——Insulator flame retardant grade: UL94-V0
——Contact: copper alloy, power contact with gold-plated, signal contact with gold-plated
Environmental Performance:
——Operating temperature:-30℃～+50℃
——Relative humidity : 98% at40℃
——Degree of protection: IP55 (during charging)
