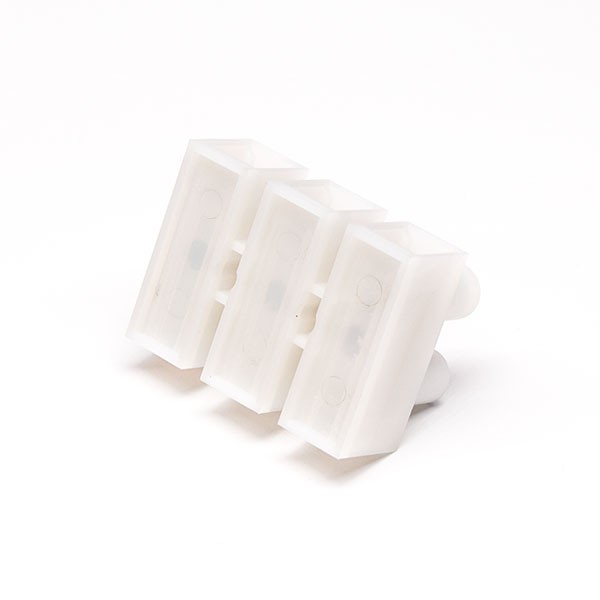

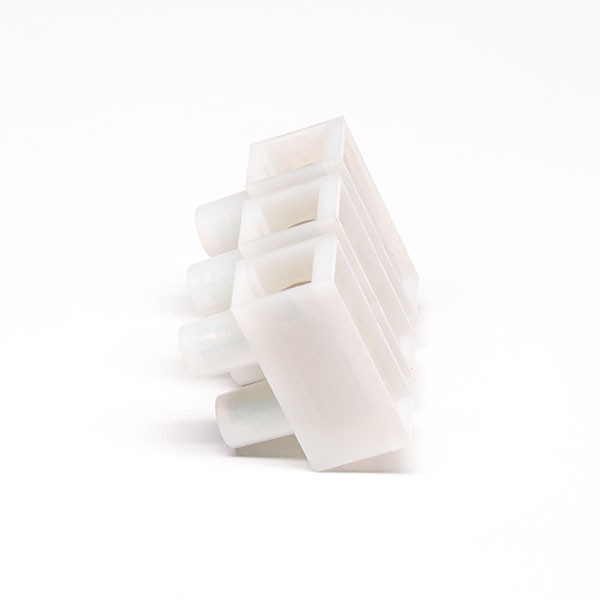

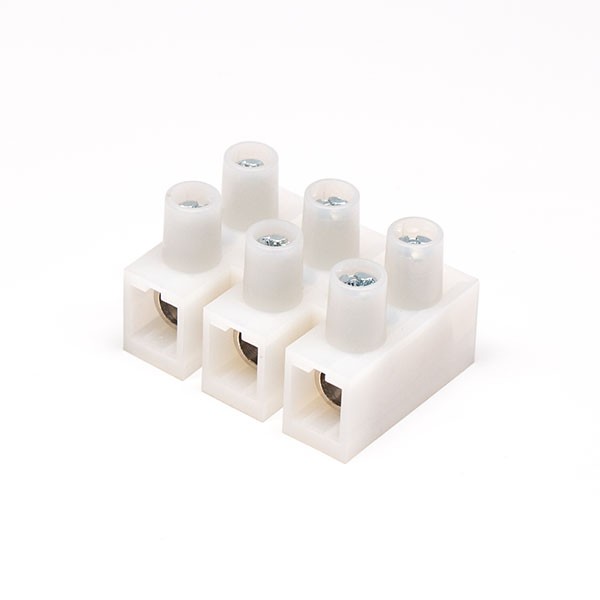

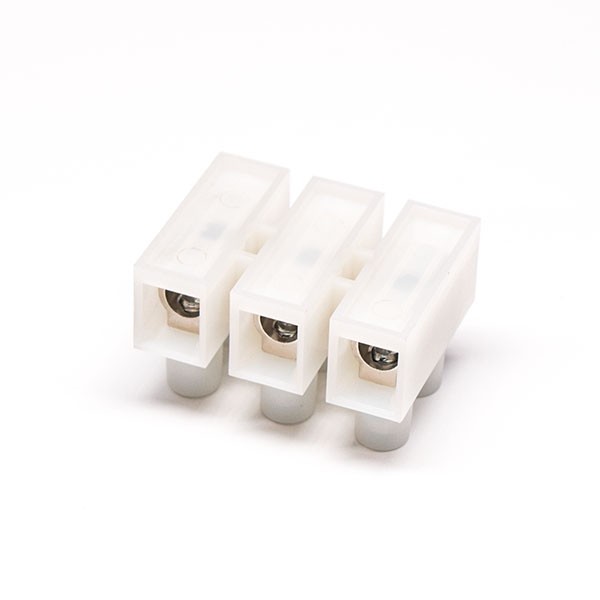

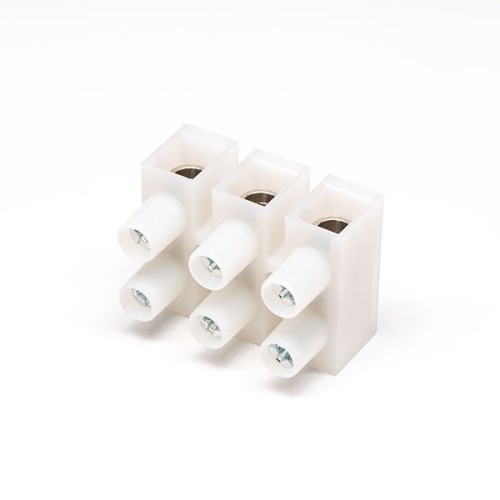

Terminal Connector Strips White 8.00mm Picth Soder Type Cable Connecor
                                  Product features:
- Terminal Strips,White,Straight,750V,57A,8.00mm,Panel Mount,Bulkhead,Soder Type Cable Connector
 - without fuse,connecting with two conductors easily and credibility;
 - High temp and IR reflow compatible versions are available;
 - supplied with open screws which shortens the time for connection
 - High Quality with 30 days 100% Money back;
 - From the OEM Original Factory, same quality with much better price.

Main Application
- Industrial controls
 - HVAC equipment and controls
 - Communications equipment
 - Test and measurement
 - Fire and security

                                                      from


                      $0.85
                                              Ex Tax: $0.85


                                          - Stock: In Stock
 - Model: JE00008529
 - Weight: 29.60g
 - SKU: JE00008529

Products Sold:  0
                          Product Views: 234
              Available Options
Ask a Question About This Product
- Specifications

| attribute-list | |
| Insulator Colour | White |
| Wiring Type | Solder Type |
| Direction | Straight |
| Spacing | 8.00mm |
| Current | 57A |
| Installation method | Panel Mount |
| Voltage | 750V |
- Description

Electrical Characteristics
- Rate voltage:300V,450V,750V
 - Rate current:10A,17.5A,20A,30A,50A,57A
 - Contact resistance:20MΩ
 - Insulation resistance:5000MΩ/DC500V
 - Withstanding voltage:AC2500V/1Min
 - Wire range:22-14AWG 0.5-2.5mm2

Mechanical Characteristics
- Torque:0.5Nm 4.43Lb.in

Environmental Characteristics
- Temperature range:-40°C ~ +110°C
 - MAX soldering:+250oC for 5 sec

Material
- Screw:M2.5,M3.0,M3.5,M4.0
 - Terminal:Brass,Ni plated
 - Housing: Nylon PA66,UL94V-2,PA66.UL94-0
