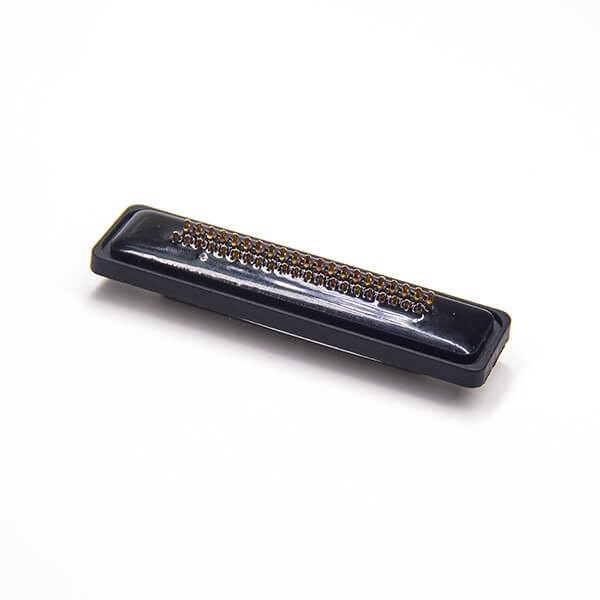

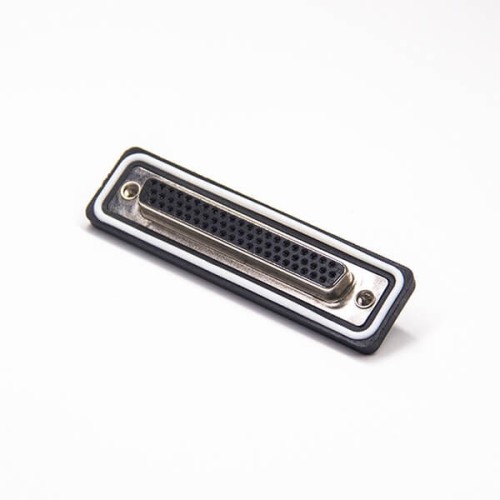

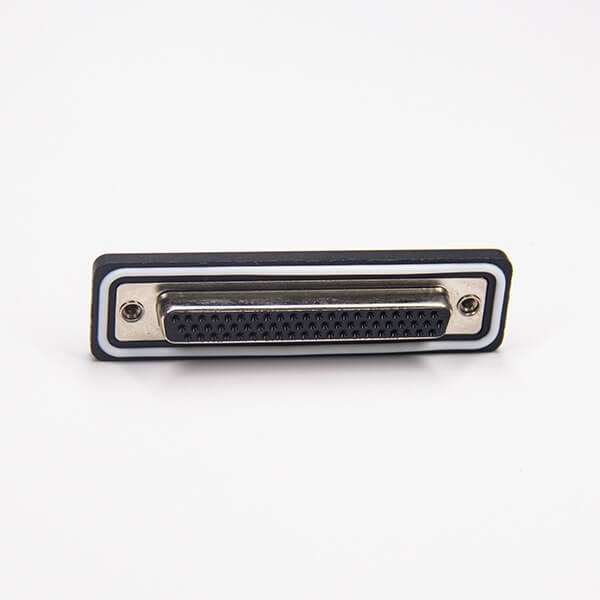

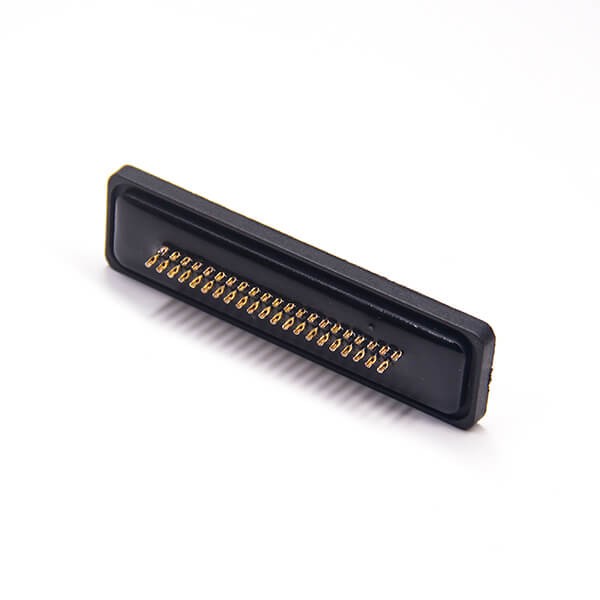

Sub D 62 Pin High Density IP67 Waterproof D-sub 62 Pin Female Connector Solder Type Cable Mount Connector
                                  Features:
- Waterproof D-sub,Receptacle,62 Pin,3 Rows,Single Port,Machined Pin,Gold plated,Solder Cup,Cable,IP67,Without Filtered
 - Interfacial seal to ensure function even when immersed;
 - Better against mechanical impacts during installation;
 - High Quality with 30 days 100% Money back;
 - From the OEM Original Factory, same quality with much better price.

Applications:
- industrial machinery
 - medical equipment
 - test and measurement equipment

communications
                                                      from


                      $32.09
                                              Ex Tax: $32.09


                                          - Stock: In Stock
 - Model: JE00004376
 - Weight: 18.00g
 - SKU: JE00004376

Products Sold:  0
                          Product Views: 172
              Ask a Question About This Product
- Specifications

| attribute-list | |
| Terminal type | Solder Cup |
| Installation characteristics | Shell (M3.0) |
| Connector Type | Socket |
| Number of Positions | 62 pin |
| Continuous plating | machined pin |
| Direction | Straight |
| Number of Rows | 3 |
| Filter | No |
| Waterproof level | IP67 |
| Port number | Single |
| Installation method | Cable |
- Description

Electrical Characteristics
- Contact resistance:10 mOhm
 - Current rating signal:7,5 A
 - Dielectric with standing voltage signal:1000 V
 - Working voltage signal:125 V
 - Test voltage:1000V

Mechanical Characteristics
- Extraction force:30N
 - Insertion force:30N

Environmental Characteristics
- Operating Temperature:-25°C~ +125°C

Material:
| Part | Material | Finish |
| Body | steel | Tin |
| Center Contact Pin | Copper alloy | hard acid gold over nickel |
| Insulator | Polyester GF, UL 94V-0 | ------  |
