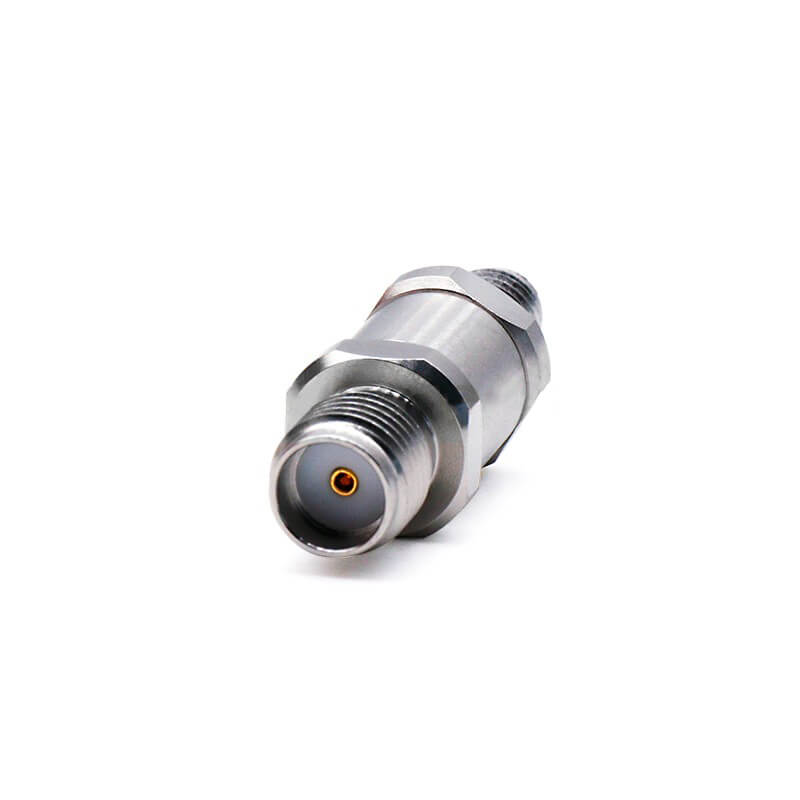

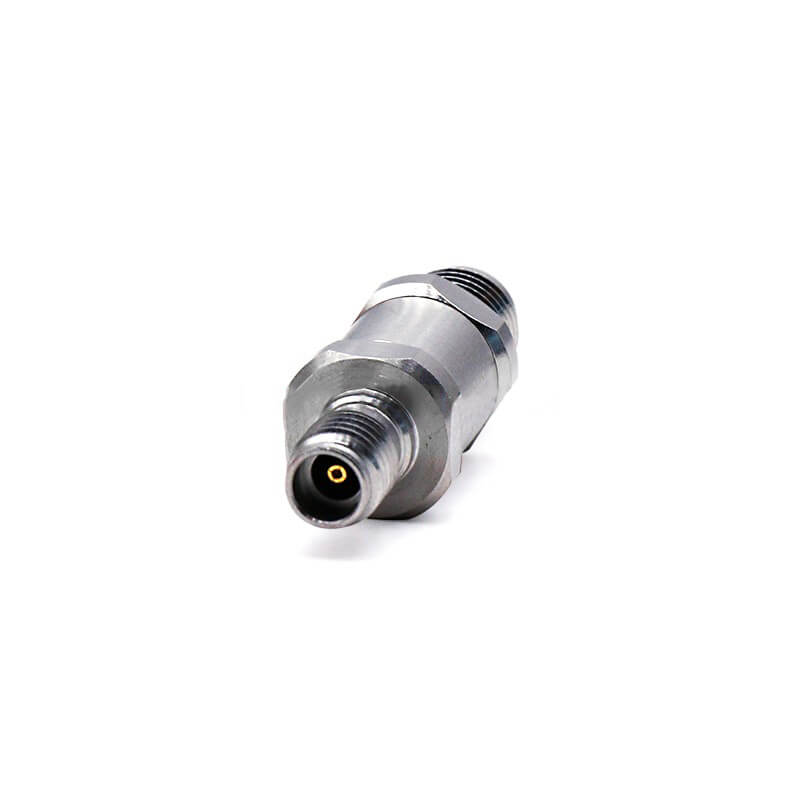

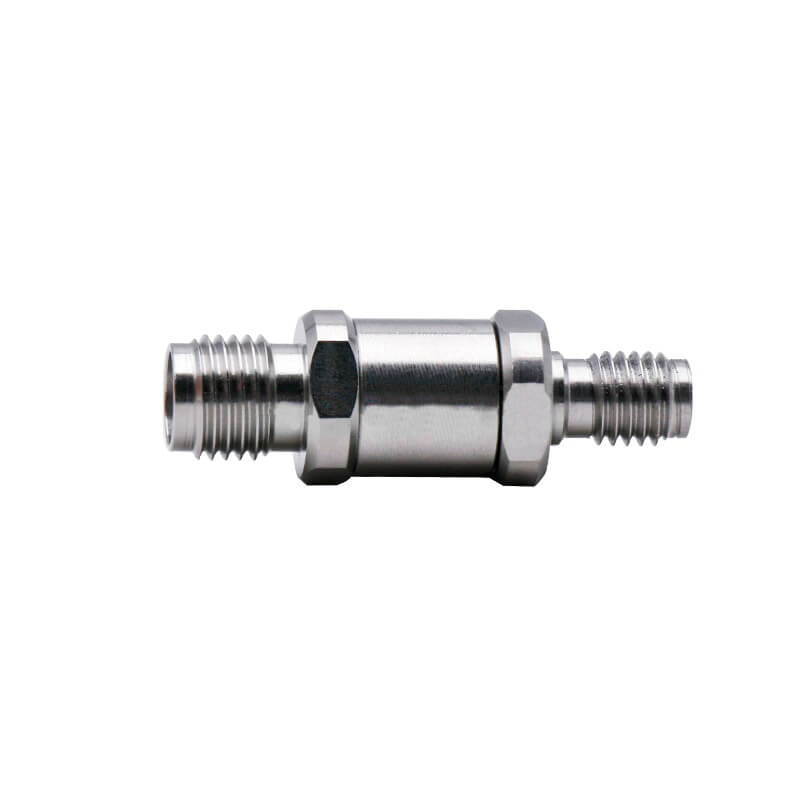

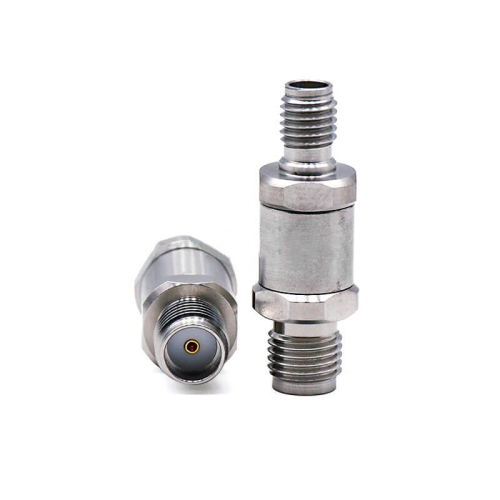

Stainless Steel Rf Coax Connector SMA Female To SSMA Female Dc-26.5G Test Adapter
from
$34.29
Ex Tax: $34.29
- Stock: In Stock
- Model: SSMA-2-F-ST-S-SS
- Weight: 0.02kg
- SKU: SSMA-2-F-ST-S-SS
Products Sold: 0
Product Views: 273
Ask a Question About This Product
- Description
Appliance:
- Cellular/Broadband amplifiers
- Radar systems
- High-speed routers and switches
- Microwave filters
- Wireless infrastructures
- Remote sensing and metering
- RFID
- GPS antennas
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range:0 to 40 GHz
- Rated Voltage:750V(r.m.s.)
- Insulation Resistance:1000MΩ (min.) at 500V DC
- Contact Resistance:3m Ω（max.)
- Outer C ontact Resistance:2m Ω（max.)
- Shielding Effectiveness:≥ 100 dB
Mechanical Characteristics
- Mating Torque:5 - 7 in - lbs
- Connector Durability：500 mating cycles min
Environmental Characteristics
- Temperature Range：-65°C to +165°C
Material:
| Part | Material | Finish |
| Body | Stainless Steel | Stainless stee |
| Center Contact Pin | Copper Alloy | Au Plating |
| Insulator | PTFE | white |
