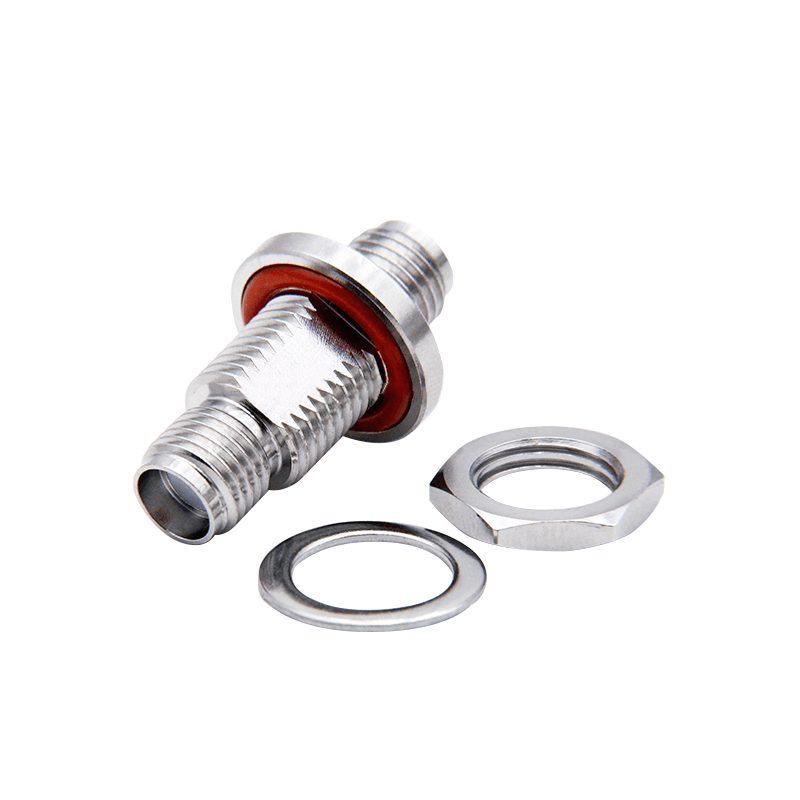

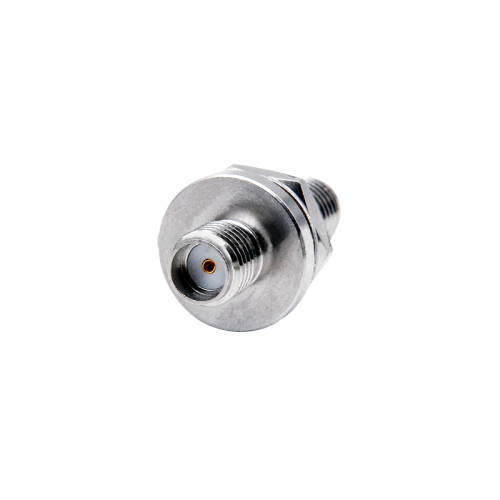

SMA Female To SMA Female 18Ghz Waterproof Stainless Steel Rf Coax Connector

SMA Female To SMA Female 18Ghz Waterproof Stainless Steel Rf Coax Connector
SMA Female To SMA Female 18Ghz Waterproof Stainless Steel Rf Coax Connector
SMA Female To SMA Female 18Ghz Waterproof Stainless Steel Rf Coax Connector
SMA Female To SMA Female 18Ghz Waterproof Stainless Steel Rf Coax Connector
SMA Female To SMA Female 18Ghz Waterproof Stainless Steel Rf Coax Connector

Features:

  • SMA Connector, SMA female to SMA female, Straight, Waterproof , Bulkhead, Stainless Steel,High frequency RF coax connector;
  •  Operation from DC to 26.5 GHz
  • Impedance: 50 Ω
  • Dielectric: Air
  • Ideal PCB connector solution for high-frequency applications
  • Optimized end launch design with through-hole legs or traditional slide-on mounting legs
  • Available for multiple different PCB thicknesses
  • Interface Standards: IEEE 287-2007
- Write a review
from
$39.41
Ex Tax: $39.41
  • Stock: In Stock
  • Model: SSMA-2-F-FF-S-RO-13141
  • Weight: 0.03kg
  • SKU: SSMA-2-F-FF-S-RO-13141
Products Sold: 0
Product Views: 241
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Connector A Direction Up Angle
Installation characteristics Bulkhead
Connector B Direction Up Angle
Connector A Gender Male
Connector A Type
Connector B Type 1.85mm
Connector B Gender Male
  • Description

Appliance:

  • Cellular/Broadband amplifiers
  • Radar systems
  • High-speed routers and switches
  • Microwave filters
  • Wireless infrastructures
  • Remote sensing and metering
  • RFID
  • GPS antennas


 Electrical Characteristics

  • Impedance：50 ohm
  • Frequency Range:DC to 26.5 GHz
  • Rated Voltage:170V(r.m.s.)
  • Insulation Resistance:1000MΩ  (min.) at 500V DC
  • Contact Resistance:3m Ω（max.)
  • Outer C ontact  Resistance:2m Ω（max.)
  • Shielding Effectiveness:≥ 100 dB

Mechanical Characteristics

  • Mating Torque:5 - 7 in - lbs
  • Connector Durability：500 mating cycles min

Environmental Characteristics

  •  Temperature Range：-65°C to +165°C



Material:

Part Material Finish
Body Stainless Steel Stainless stee
Center Contact  Pin Copper Alloy Au Plating
Insulator PTFE white
