Single Port PoE Injector 10/100/1000Mbps 30W power over ethernet POE adaptor IEEE 802.3af/at
from
$23.69
Ex Tax: $23.69
- Stock: In Stock
- Model: SAUTO-1-M-CBL-S-RO-IP40
- Weight: 5.80g
- SKU: SAUTO-1-M-CBL-S-RO-IP40
Products Sold: 0
Product Views: 246
Ask a Question About This Product
- Description
signed for the PoE-powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application and other support 802.3at input devices. The data rate is 10/100/1000Mbps. Fully comply with IEEE802.3at and backward compatible with 802.3af standard.
Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.
Enclosed in an IP40 fire retardant plastic case, designed for indoor use. It operates with a wide input voltage of 100-240VAC, 50 or 60 Hz.
| Parameter | Description |
| Key Features | Gigabit data rates |
| Smaller in size but higher performance | |

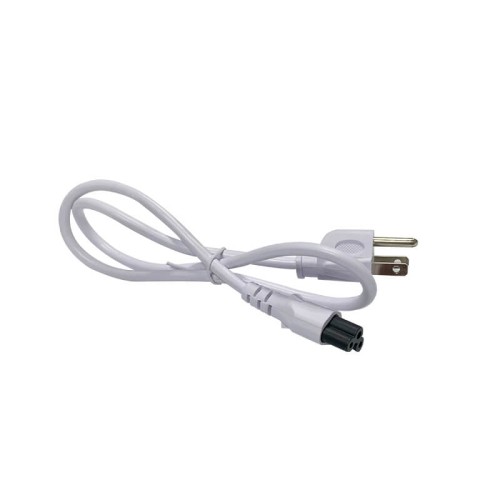

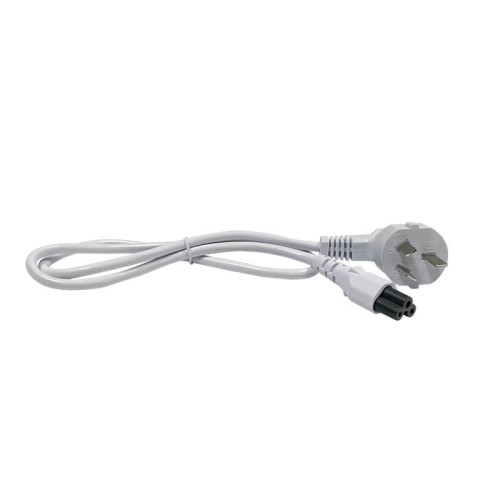

| AC power cord with optional US or EU plug or other standard plug | |
| Diagnostic LEDs | |
| Economical PoE | |
| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3at |
| RoHS Compliance | |
| WEEE Compliance | |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: |
| 4/5 (+), 7/8 (–) | |
| Output Power Voltage: 52Vdc | |
| User Port Power: 30.16W Guaranteen | |
| Input | AC Input Voltage:90 to 264Vac(100 to 240Vac Rated) |
| Frequency: 47 to 63Hz (50/60Hz Typ.) | |
| Working Environment | Operating Temperature: 0℃ to 40℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Storage Temperature: -20℃ to 70℃ | |
| Storage Humidity: 10% to 90%, non-condensation | |
| Operating Altitude: up to 2000meters | |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV |
| Line-Line 1.2/50us (8/20us): 1KV | |
| Mechanical Characteristics | Case: Plastic |
| Color: White | |
| Mounting: Place on desk | |
| IP Rated: IP40 | |
| Connectors: Shielded RJ-45*2 | |
| Size: 107.3mm X 56mm X 34.5mm | |
| Weight: 146g（0.32lb） | |
| LED Indicator | Power Indicator : Yellow |
| PoE Load Indicator : Green | |
| Safety Approvals | CE, FCC |
