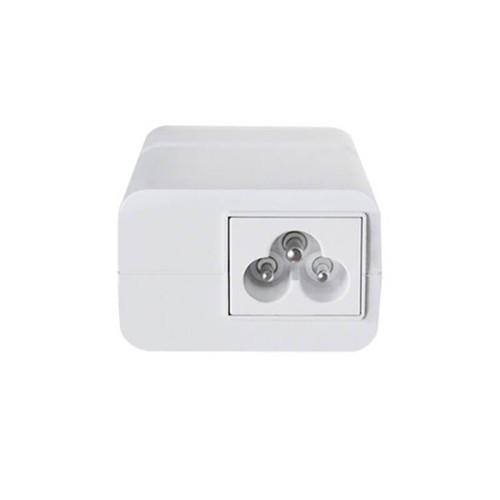

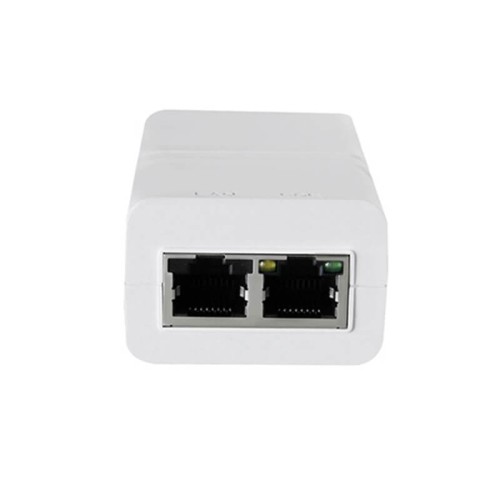

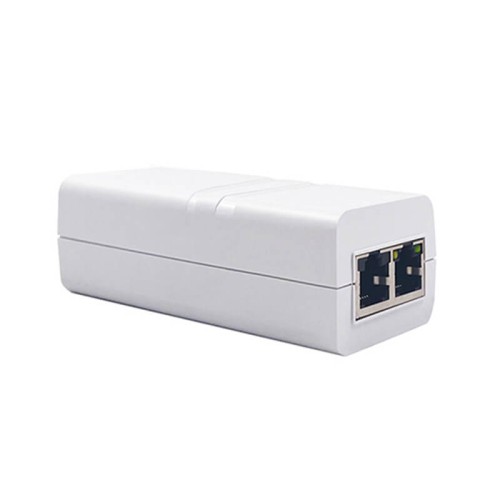

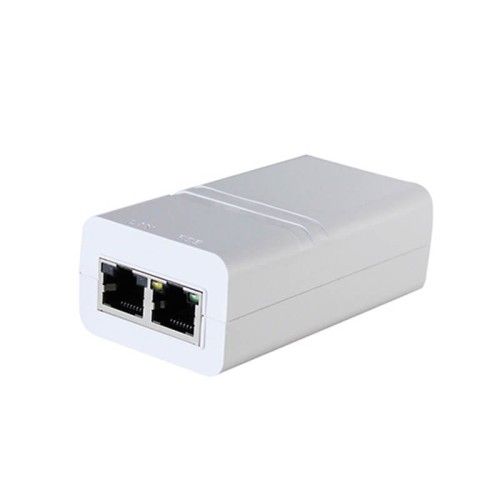

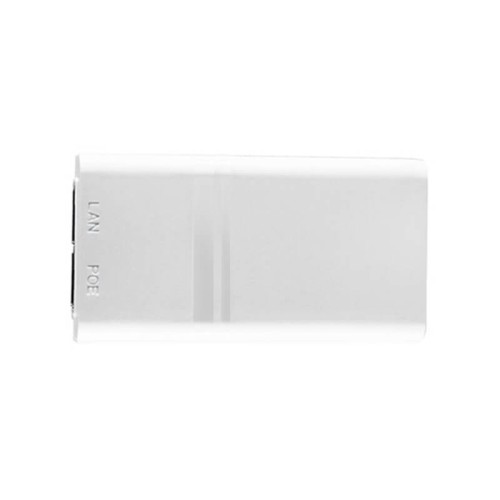

Single Port 100-240V Input EU Plug Over Ethernet Switch 320ma 48V POE Adapter 15W assive Poe Power Injector
from
$23.69
Ex Tax: $23.69
- Stock: In Stock
- Model: SPOE-1-M-ST-R-IP40-CE-RO
- Weight: 5.80g
- SKU: SPOE-1-M-ST-R-IP40-CE-RO
Products Sold: 0
Product Views: 187
Ask a Question About This Product
- Description
Designed for the AF powered 15.4W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radios, IoT applications, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3af devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.
Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with a Wall-plug mounted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz.
| Parameter | Description |
| Key Features | af standard 15W indoor PoE injector with EU plug |
| Ports condition | LAN *1, AC Input*1, PoE Output *1 |
| PoE output | 15.4W |
| Data rates | 10/100/1000 Mbps |
| Power input | 100-240Vac，50/60Hz Typ |
| Power output | 48Vdc 320mA 15.4W |
| Regulatory Compliance | IEEE 802.3af |
| RoHS Compliance | |
| WEEE Compliance | |
| Working Environment | Operating Temperature: 0℃ to 40℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Storage Temperature: -20℃ to 70℃ | |
| Storage Humidity: 10% to 90%, non-condensation | |
| Operating Altitude: up to 2000meters | |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV |
| Line-Line 1.2/50us (8/20us): 1KV | |
| Mechanical Characteristics | Size: 83X 51X 69mm |
| Weight: 380g(0.83lb) | |
| Safety Approvals | CE, FCC |
