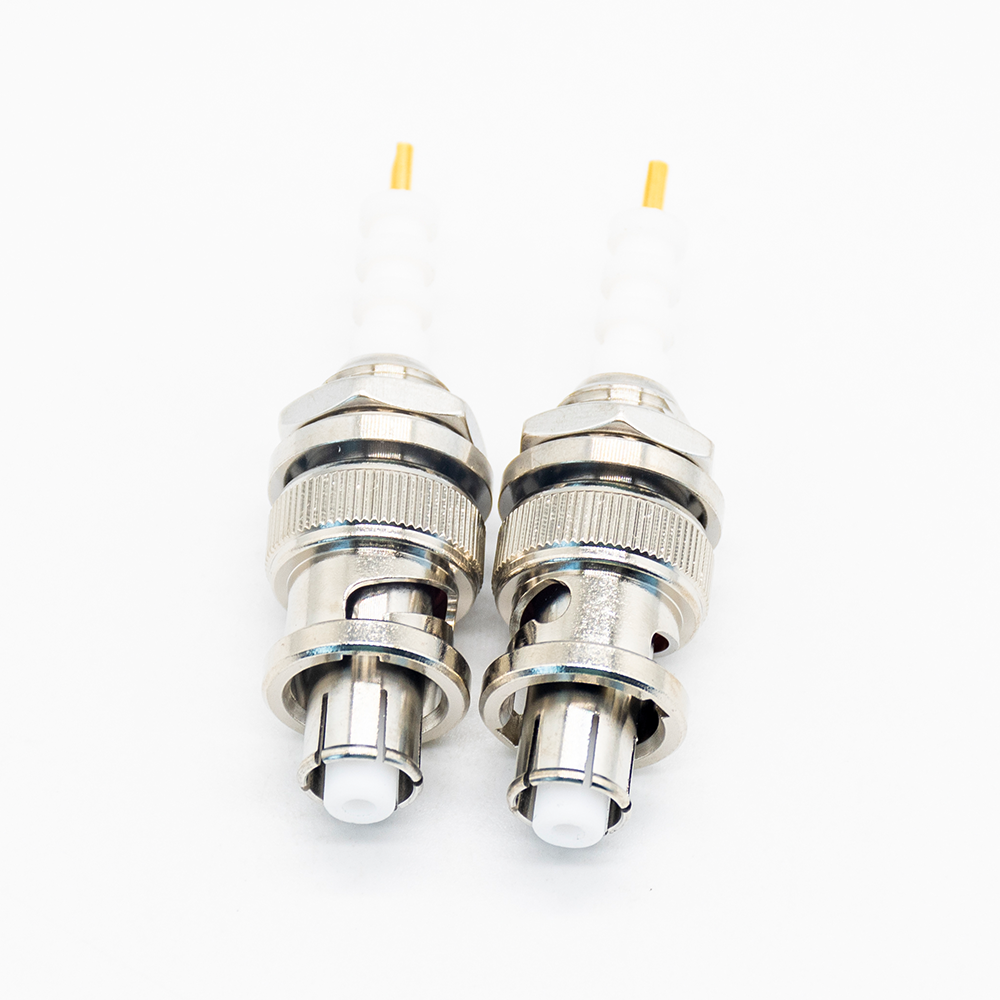

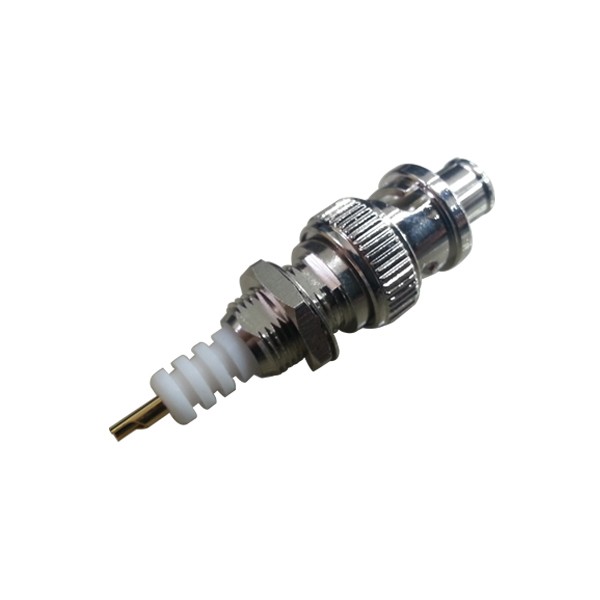

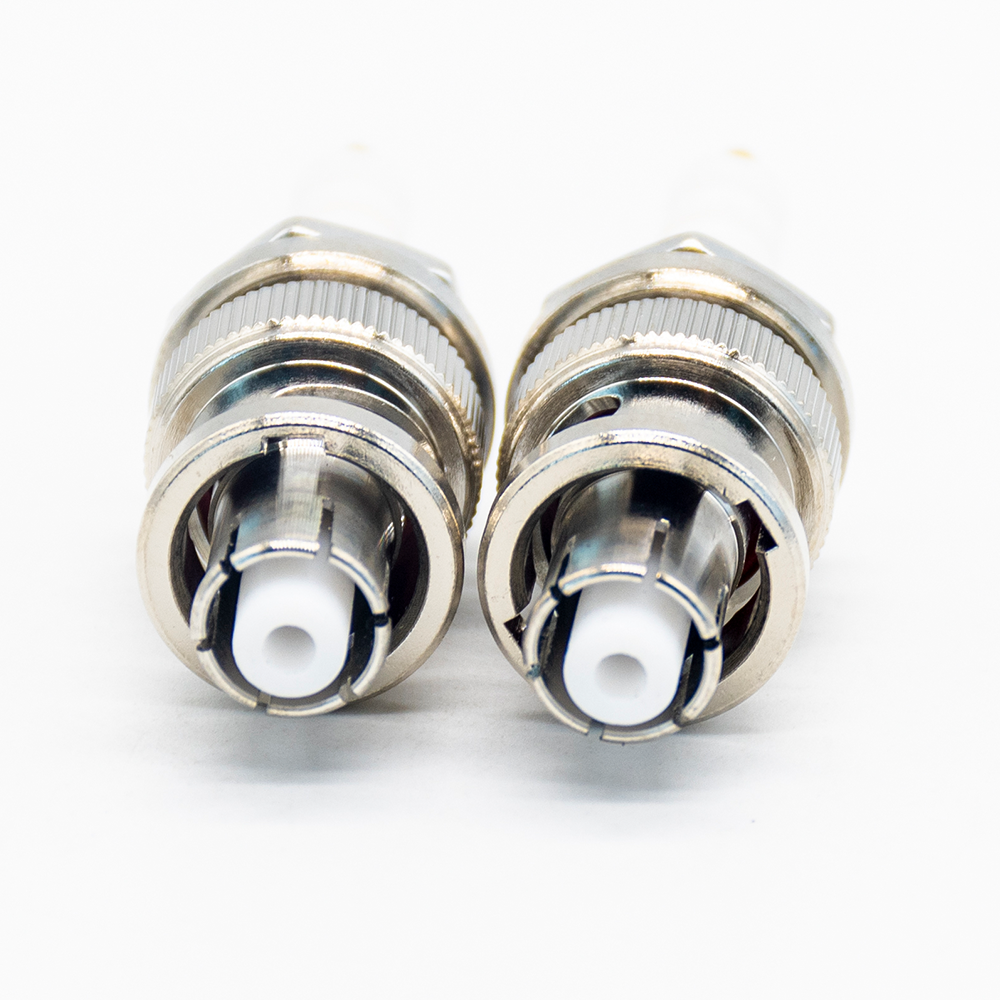

180 Degree SHV Male Type Bulkhead Receptacle Connector

180 Degree SHV Male Type Bulkhead Receptacle Connector
180 Degree SHV Male Type Bulkhead Receptacle Connector
180 Degree SHV Male Type Bulkhead Receptacle Connector
180 Degree SHV Male Type Bulkhead Receptacle Connector
180 Degree SHV Male Type Bulkhead Receptacle Connector
180 Degree SHV Male Type Bulkhead Receptacle Connector
180 Degree SHV Male Type Bulkhead Receptacle Connector
180 Degree SHV Male Type Bulkhead Receptacle Connector
180 Degree SHV Male Type Bulkhead Receptacle Connector

Features:

  • SHV Connector,for Cable,Straight,Plug,Male,Blukhead,50ohm,Brass,Nickel
  • Can be Customized for unique material or performance requirement;
  • Heat resistant insulators
  • Quick connect/disconnect bayonet coupling
  • Positive insulation grip
- Write a review
from
$5.20
Ex Tax: $5.20
  • Stock: In Stock
  • Model: JE00003330
  • Weight: 1.50g
  • SKU: JE00003330
Products Sold: 0
Product Views: 223
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Cooper
Terminal type Solder Type
Installation characteristics Bulkhead
Gender Male
Function Other
Direction Straight
Polarity Standard
Coating Silver Plating
Impedance 50 Ω
Installation method Panel Mount / Cable
Outer conductor connection Solder
  • Description

Applications:

  • nuclear instrumentation
  • Geiger counters
  • X-Ray
  • electrical transmission equipment.

Electrical Characteristics

  • Frenquency Range:DC-2GHZ
  • Center Contact Resistance:≦3mΩ
  • Outer Contact Resistance:≦2.5mΩ
  • Insulation Resistance:≧5000MΩ

Environmental Characteristics

  • Relative Temperature:≦95%(40°C±2°C)

Material:

DescriptionMaterialFinish
BodyBrassAu
Contact PinPhosphor BronzeAu
InsulatorPTFEWhite

180 Degree SHV Male Type Bulkhead Receptacle Connector

180 Degree SHV Male Type Bulkhead Receptacle Connector

180 Degree SHV Male Type Bulkhead Receptacle Connector

180 Degree SHV Male Type Bulkhead Receptacle Connector
