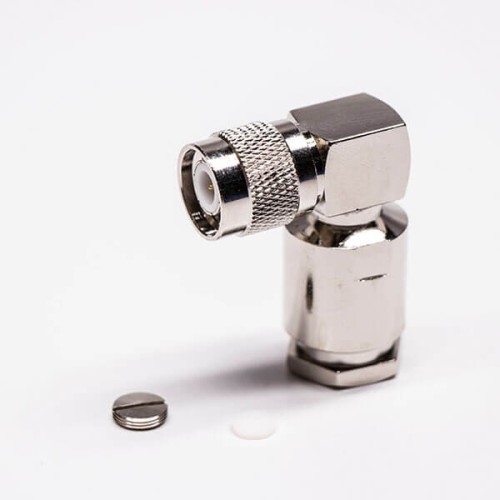

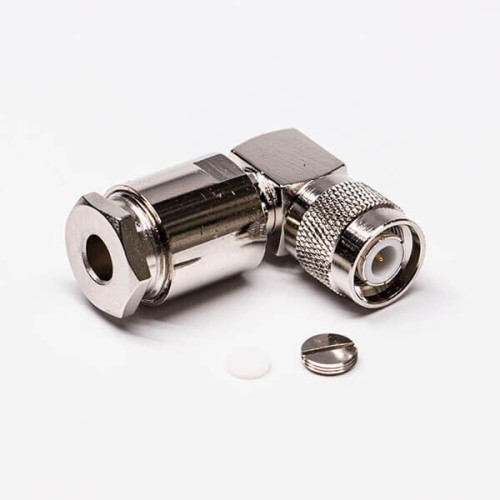

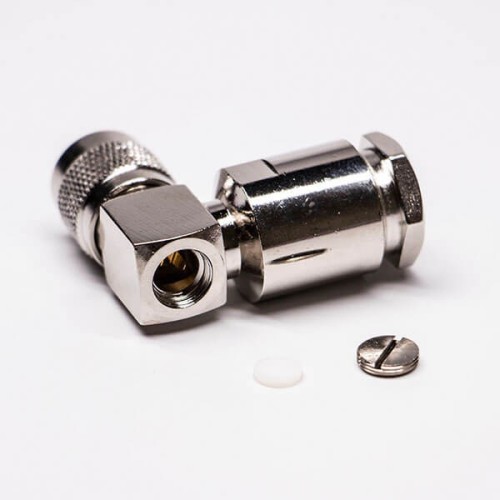

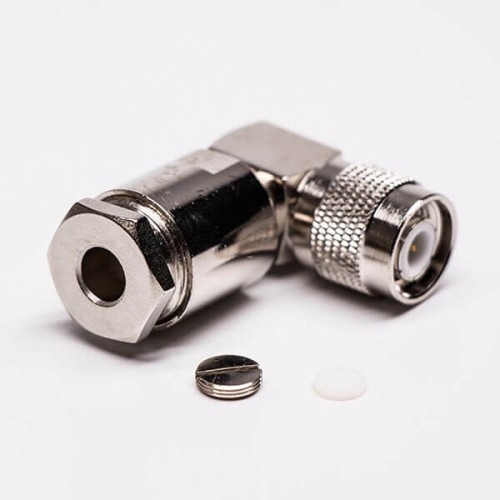

RG8 TNC Connector Clamp Type Coaxial Angled Plug for Cable

Applications: Cellular Mobile Phones, Aviation Controls, Telemetry, Bluetooth and GPS, Wireless Base Station, Microwave Comonents, Radar, Networks,Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation.

Electrical Characteristics:

• Impedance：50 ohm
• Frequency Range: 0~11 GHz for 50 ohm
• VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
• Dielectric Withstanding Voltage: 1500 V rms
• Working Voltage: 500 V rms
• Center Contact Resistance ≦ 3.0 mΩ (Milliohms max.)
• Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
• Insultation Resistance ≧5 × 10 ³ mΩ (Milliohms min.)

Mechanical Characteristics

• Coupling: 7/16-28 thread
• Contact Retention: 6 lbs min.
• Mating Durability: ≧500 cycles

Environmental Characteristics

• Environmental Characteristics:  -65oC~+165oC
• Coupling Nut Retention: 100 lbs. min.

Material:
