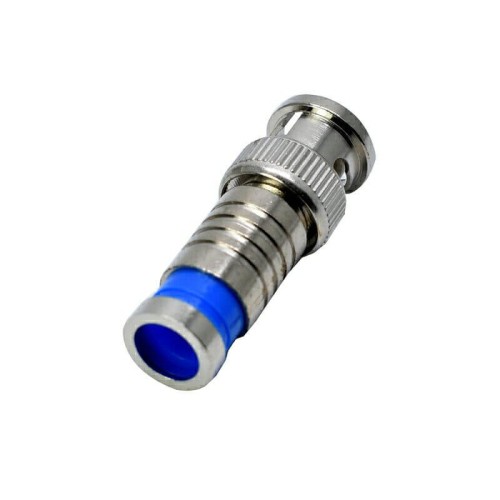

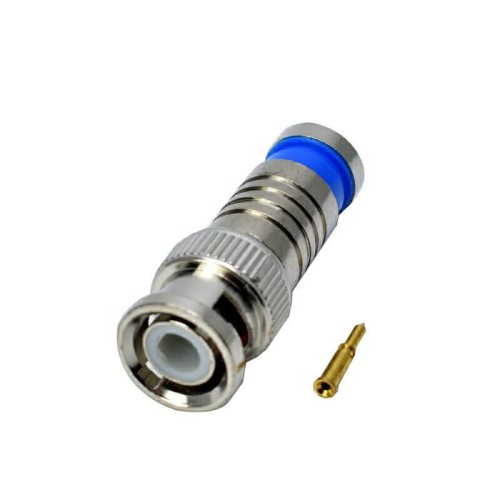

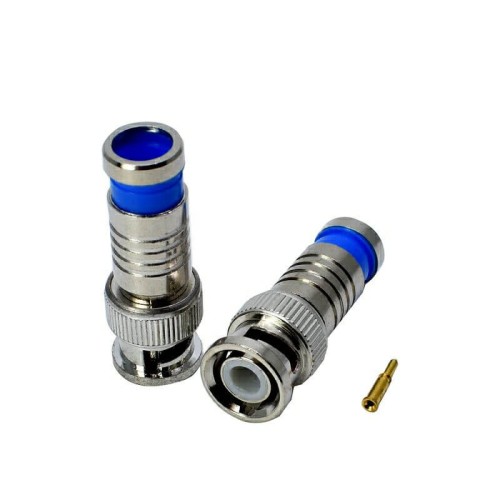

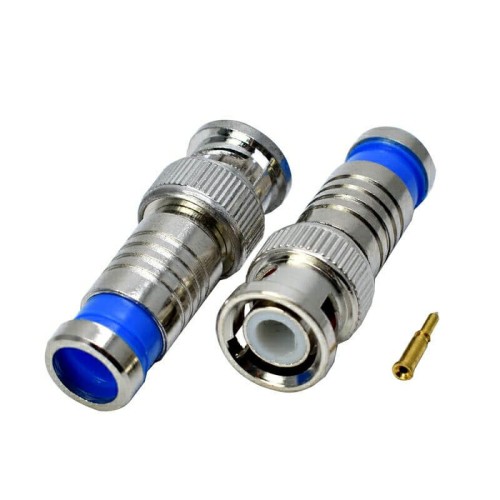

RG6 BNC male Connectors Compression Type

Electrical Characteristics

• Impedance：50ohm
• Frequency Range: 0~1 GHz for 75 ohm
• VSWR: Straight type ≦ 1.22/3GHz / R/A type ≦ 1.30/3GHz
• Dielectric Withstanding Voltage: 1500 V rms
• Working Voltage: 500 V rms
• Center Contact Resistance ≦ 1.5 mΩ (Milliohms max.)
• Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
• Insultation Resistance ≧5 × 103 mΩ (Milliohms min.)

Mechanical Characteristics

• Coupling: bayonet
• Contact Retention: 6 lbs min.
• Mating Durability: ≧500 cycles

Environmental Characteristics

• Environmental Characteristics: Teflon -55℃~+155℃ / POM -40℃~+60℃
• Coupling Nut Retention: 100 lbs. min.
• Vibration: MIL-STD-202 Method 204
• Corrosion Resistance: MIL-STD-202 Method 101

Material:
