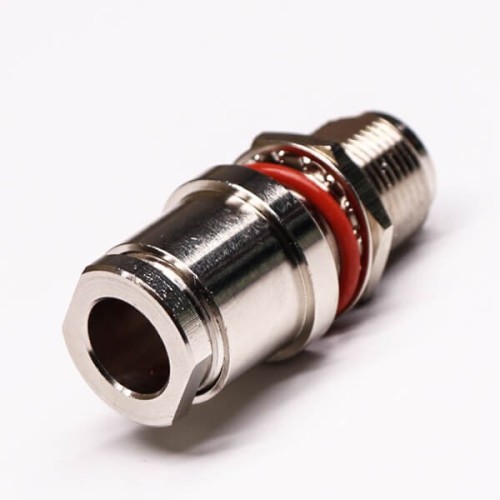

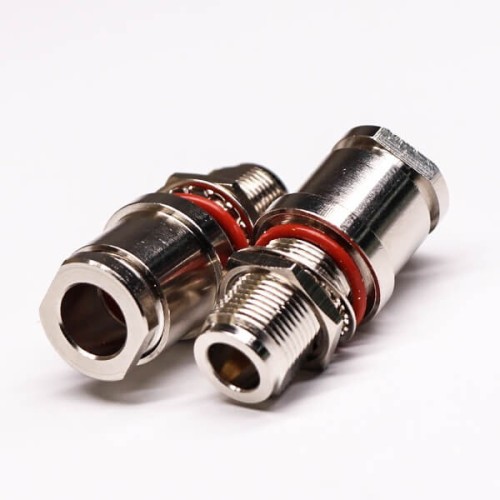

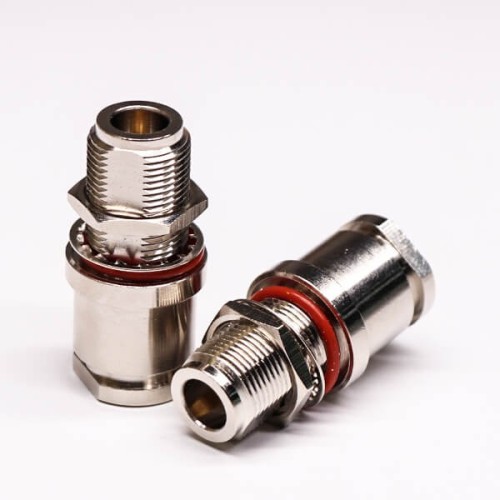

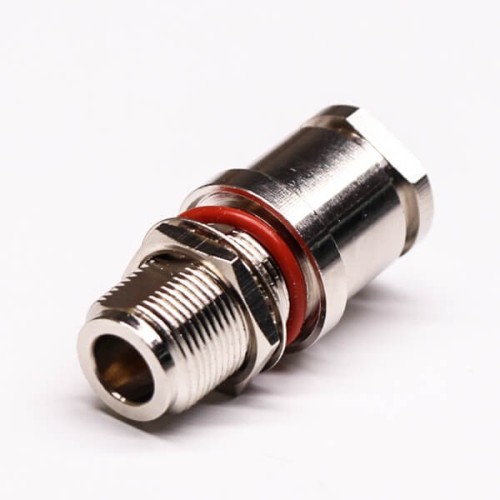

RF Connectors Types 180 Degree Jack Clamp Type Bulkhead

Main Application of N Connectors:

• Aerospace and Defense: Radar Equipment
• Technology: Ablation equipment
• Commercial Vehicle: Bluetooth and GPS
• Telecommunications: Antennas, Base Stations, Passive/Active Base Station Components, Telecommunication hardware
• Data/Communications: Broadcast Electronics, Wifi
• Industrial: Machine to Machine Communications

Techinial Datasheet:

Electrical Characteristics

• Impedance：50 ohm
• Frequency Range: 0~13 Ghz
• VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
• Dielectric Withstanding Voltage: 2500 V rms
• Working Voltage: 1000 V rms
• Center Contact Resistance ≦ 1.0 mΩ  (Milliohms max.)
• Outer Contact Resistance ≦ 0.2 mΩ  (Milliohms max.)
• Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

Mechanical Characteristics

• Coupling: 5/8-24 thread
• Contact Retention: 6 lbs min.
• Coupling nut torque: 30 in-lbs. min.
• Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

• Temprature Range: -65°C ~ +125°C ( PE Cable-40°C ~ +85°C )
• Vibration: MIL-STD-202 Method204
• Corrosion resistance: MIL-STD-202 Method 101

Material:
