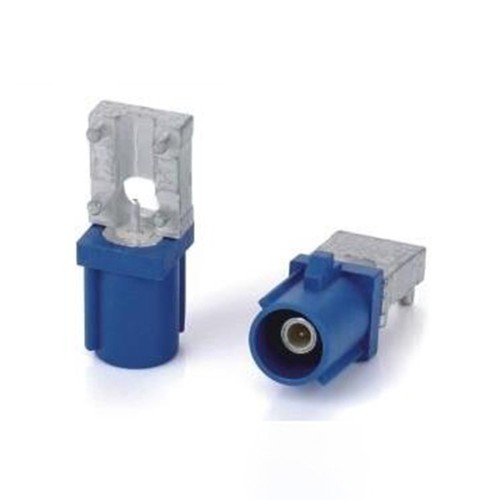

R/A Fakra C-Coding Blue Male Connector Offset Type SMT Vehicle Panel Mount PCB for Vehicle Radio

Features and Benefits

Fakra Connector, Male Connector, Offset Type/SMT, Right Angled, C-Coding
14 different mechanical and color key codes
Robust plastic housing with locking feature and audible clicking noise
Tape and reel packaging for automatic component placement
Sealed units available
Applications include Automotive, Global Positioning Satellite, Satellite Radio, Bluetooth, Remote Vehicle Diagnostic, Infotainment Systems, etc;
Pre-assembled with different RF connectors for choice. Size and cable length can be customized;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, the same quality with a much better price.

- Write a review

from

$2.29

Ex Tax: $2.29

Products Sold: 0

Product Views: 134

Qty

Add to Cart

Buy Now Ask a question

Add to Wish List Compare this Product

Add to Cart

Buy Now

attribute-list
Body Material	Plastic
Installation characteristics	OffsetType/Through Hole
Gender	Male
Coding	C
Direction	Right Angle
Docking method	Bayonet
Impedance	50 Ω
Installation method	PCB Mount / Panel Mount

FAKRA Connectors

FAKRA connectors(Fachkreis Automobil, a German standard) are SMB-based automotive-grade connectors that can operate up to 6 GHz. These connectors are embedded within a plastic housing with a locking feature with an audible clicking noise that lets you know a connection has been made. They are available in 14 different mechanical layouts which are color coded for easy identification and mismatching prevention.
FAKRA connectors meet the mechanical and environmental requirements of the automotive industry. The worldwide automotive industry has standardized connectors based on the FAKRA and USCAR standards.
They can apply to a variety of connections in automotive vehicles, with applications including SDARS, cellular telephony, GPS navigation, keyless entry, and satellite radio.

Applications

1. Mounting groove for cable connectors for chassis mounting
2. Secure the primary locking system between the plug and coupler with tactile and audible locking
3. Protection bars and protective strips prevent unintentional opening of the primary latching arm
4. Protection of the coaxial insert by shock and vibration-resistant coded housing
5. Secure secondary locking with high axial retention force of the coaxial insert in the plastic housing
6. Sophisticated mechanical and color-coding system with 14 different codes

Electrical properties
Characteristic impedance	50Ω
Frequency Range	DC-6 GHz
Withstand voltage	800 Vrms
Working current	1A DC Max(based on the wire guage and length)
Inner conductor contact resistance	10 mΩ Max(Original)
Outer conductor contact resistance	5 mΩ Max(Original)
Return loss	18 dB Min
Insertion loss	≤0.1x√fGHz dB
Insulation resistance	1000 MΩ Min
Radio frequency leakage	-45 dB @up to 3 GHz; -40 dB@ up to 6 GHz

Mechanical behavior
Durable plug	25 cycles Min
Snap retention	110 N Min
Withdrawal force (four ports)	2N Min
Insertion Force (Four Ports)	45 N Max(Unwaterproof Single Side)

Environmental characteristics
Application temperature	-40℃ to +105℃
Damp heat cycle	USCAR-2, Paragraph 5.6.2 /ISO 20860-2 Clause 9.3
Vibration & Mechanical Shock	USCAR-2, Paragraph 5.4.6 /ISO 20860-2 Clause 9.1
Thermal shock	USCAR-2,Paragraph 5.6.1/ISO 20860-2 Clause 9.2
RoHS	√

Material
Shell	PA, PBT, PPE
Outer conductor	Zn, CuZn, CuSn, Stainless Steel
Insulator	LCP, PA, PTFE
Inner conductor	CuBe, Cuzn, CuSn
cover	PA, PBT, PPE
Collar	Cu
Buckle	PA,PBT, PPE

Surface treatment
Outer conductor	Au, Sn, Ni
Inner conductor	Au
