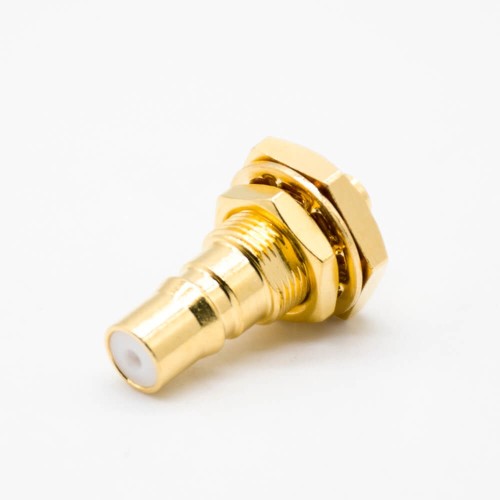

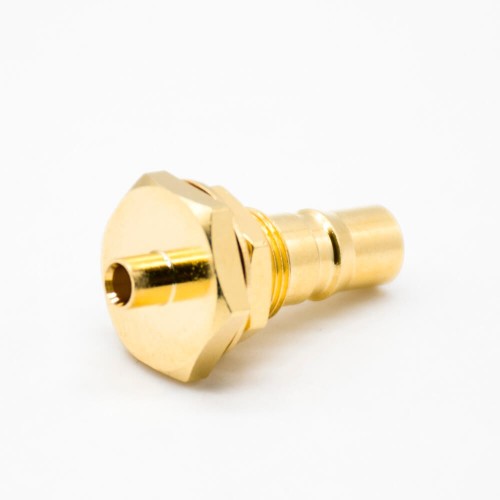

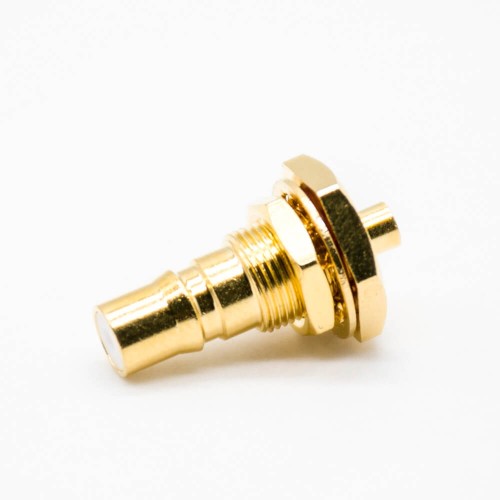

QMA Connector Female Standard RG178Cable Straight Gold Plating Panel Mount Front Bulkhead Solder Type

QMA Connector Female Standard RG178Cable Straight Gold Plating Panel Mount Front Bulkhead Solder Type
QMA Connector Female Standard RG178Cable Straight Gold Plating Panel Mount Front Bulkhead Solder Type
QMA Connector Female Standard RG178Cable Straight Gold Plating Panel Mount Front Bulkhead Solder Type
QMA Connector Female Standard RG178Cable Straight Gold Plating Panel Mount Front Bulkhead Solder Type
QMA Connector Female Standard RG178Cable Straight Gold Plating Panel Mount Front Bulkhead Solder Type
QMA Connector Female Standard RG178Cable Straight Gold Plating Panel Mount Front Bulkhead Solder Type
QMA Connector Female Standard RG178Cable Straight Gold Plating Panel Mount Front Bulkhead Solder Type
  • RF Connector,QMA,Female,Standard,Cable,Straight,Panel Mount,Front Bulkhead,Solder Type,Gold Plating,RG178
  • replace the traditional threaded connection of SMA and N with a snap-fastening to allow faster mating
  • allow for 360° cable rotation after installation
  • 50 Ohm nominal impedance
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of QMA Connectors:

  • Mil-Aero
  • Telecommunication
  • Cellular base stations
  • Antennas
  • defense applications
  • Radar systems



- Write a review
from
$1.58
Ex Tax: $1.58
  • Stock: In Stock
  • Model: JE00003278
  • Weight: 4.30g
  • SKU: JE00003278
Products Sold: 0
Product Views: 146
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Cooper
Terminal type Solder Type
Installation characteristics Front mount
Gender Female
Function Other
Direction Straight
Polarity Standard
Coating Gold Plating
Impedance 50 Ω
Installation method Panel Mount
Outer conductor connection Solder
  • Description
QMA Connector Female Standard RG178Cable Straight Gold Plating Panel Mount Front Bulkhead Solder Type

Electrical Characteristics

  • Impedance:50 Ohm
  • Frequency Range: DC- 6 GHz
  • VSWR：≤1.20@DC-3GHz
  • Dielectric Withstanding Voltage:≥1000V RMS,50Hz
  • Dielectric Resistance: ≥5000 MOhm
  • Working Voltage : ≤480V
  • Contact Resistance: Center Contact ≤2.5m Ohm
  • Outer Contact ≤3.0m Ohm

Mechanical Characteristics

  • Interface Retention Force: ≥60N
  • Durability (Mating times): ≥200
  • These characteristics are typical and may not apply to all connectors.
  • Outer Contact ≤3.0m Ohm

Environmental Characteristics

  • Temperature Range：-65°C to +165°C

Material:

PartMaterialFinish
BodyBRASSAu:1u"
insulatorTEFLONWHITE
Center Contact PinBRASSAu:3u"
