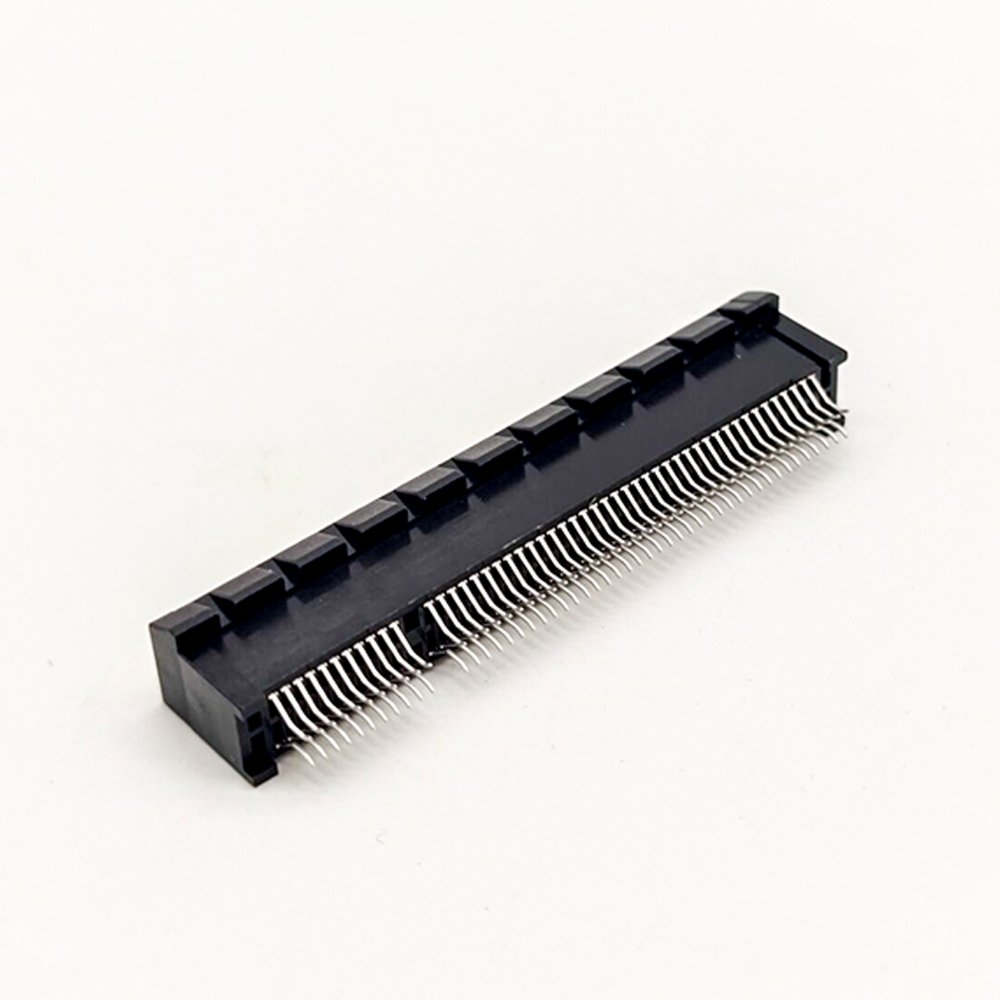

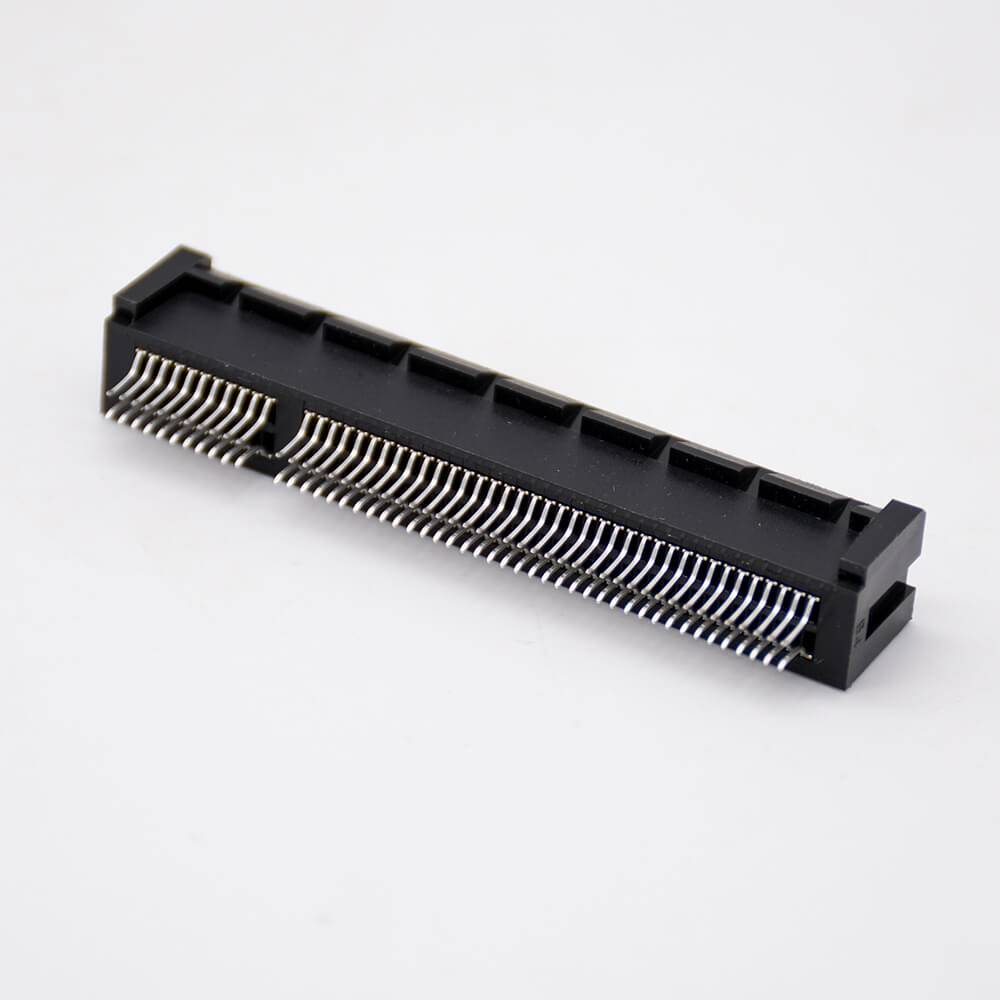

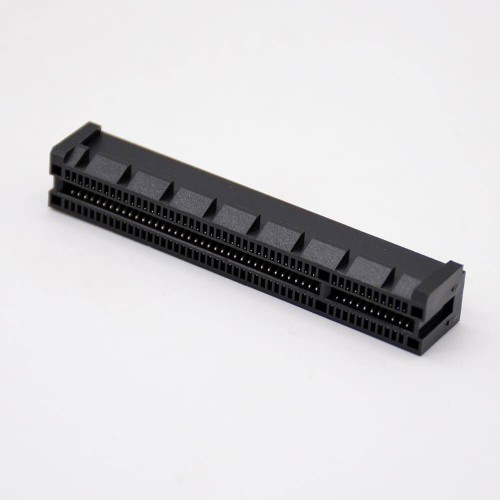

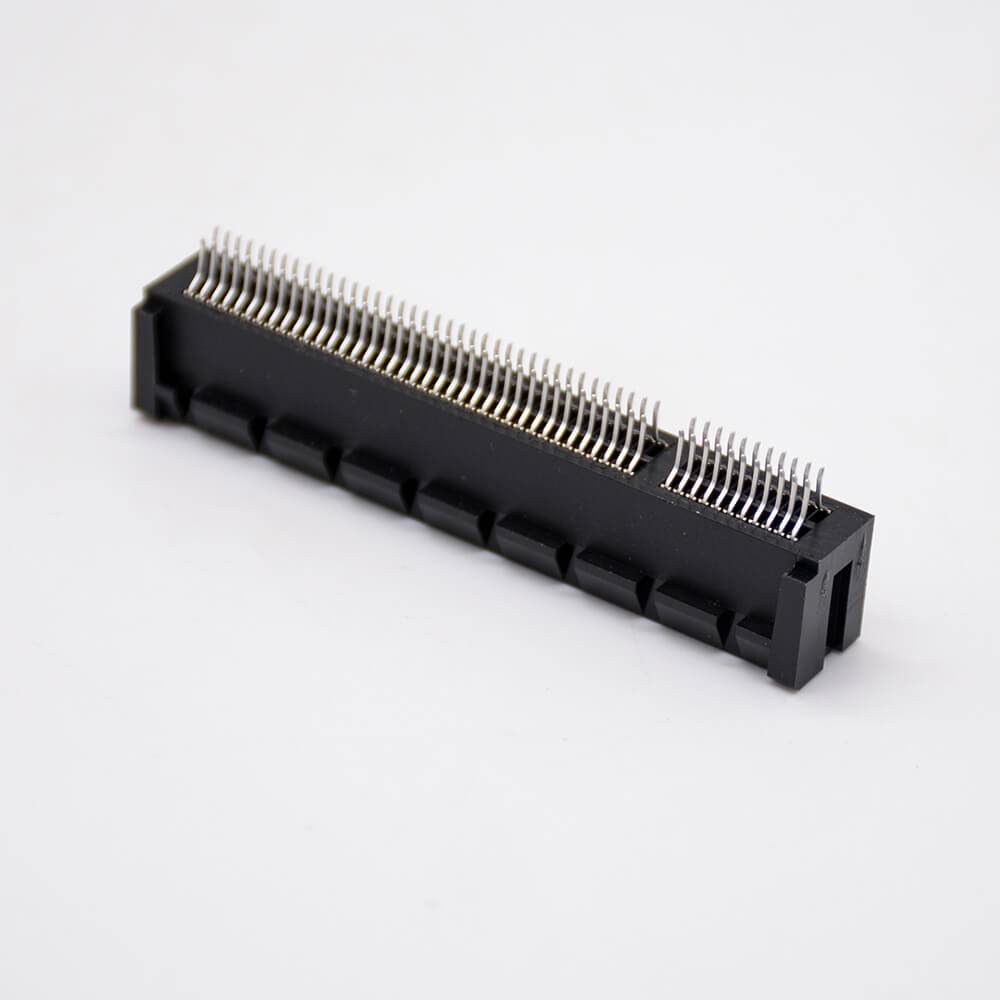

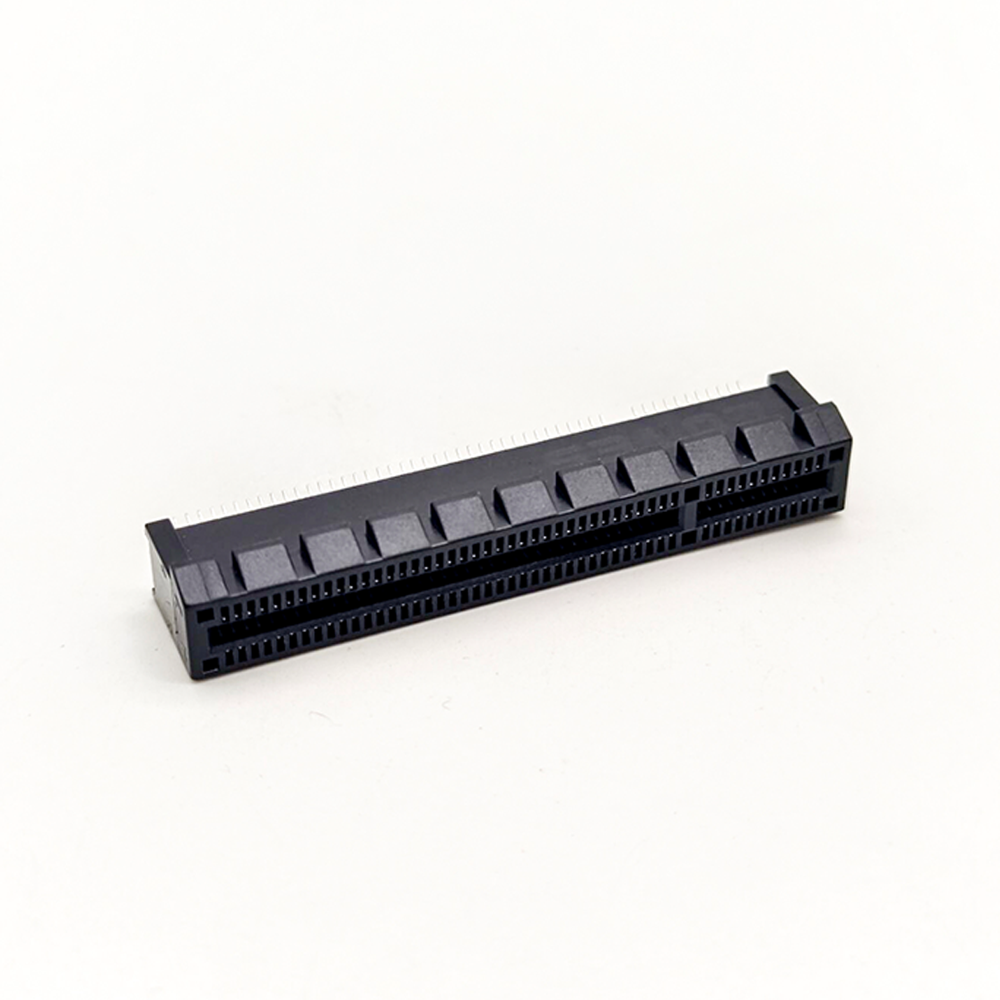

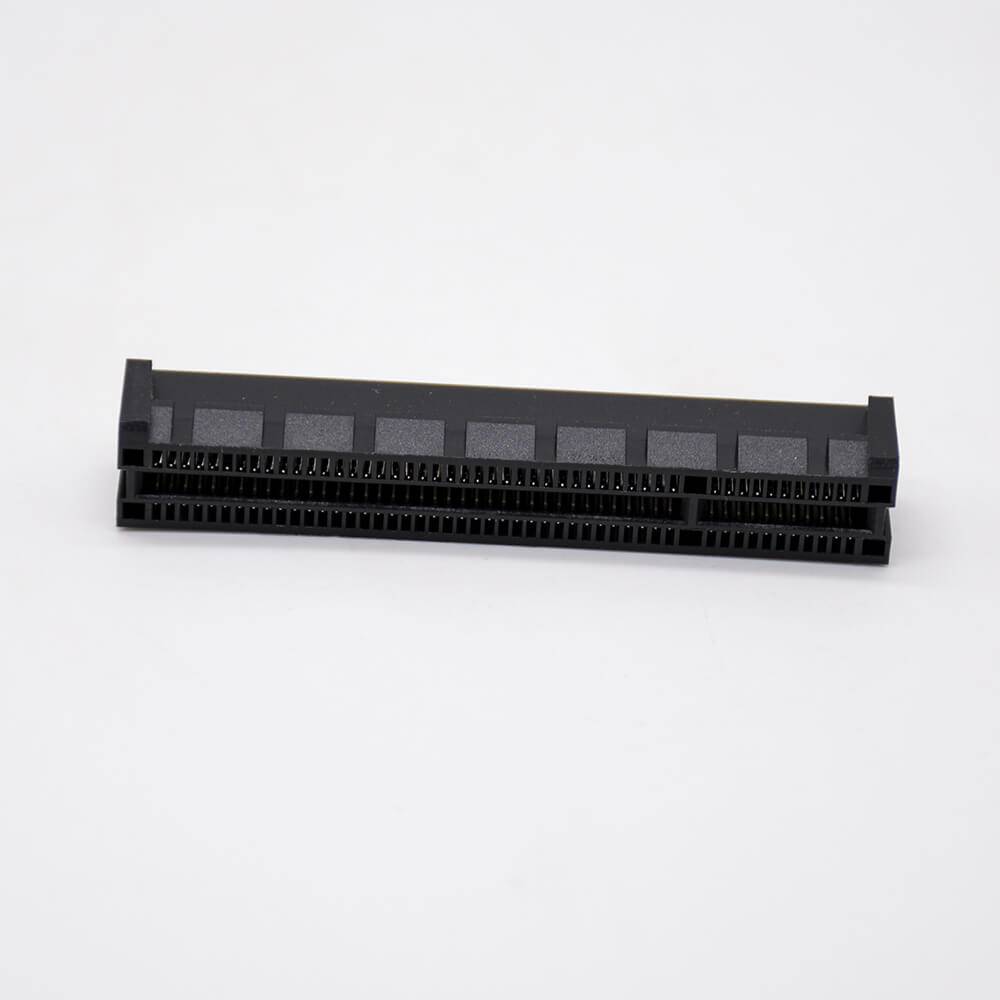

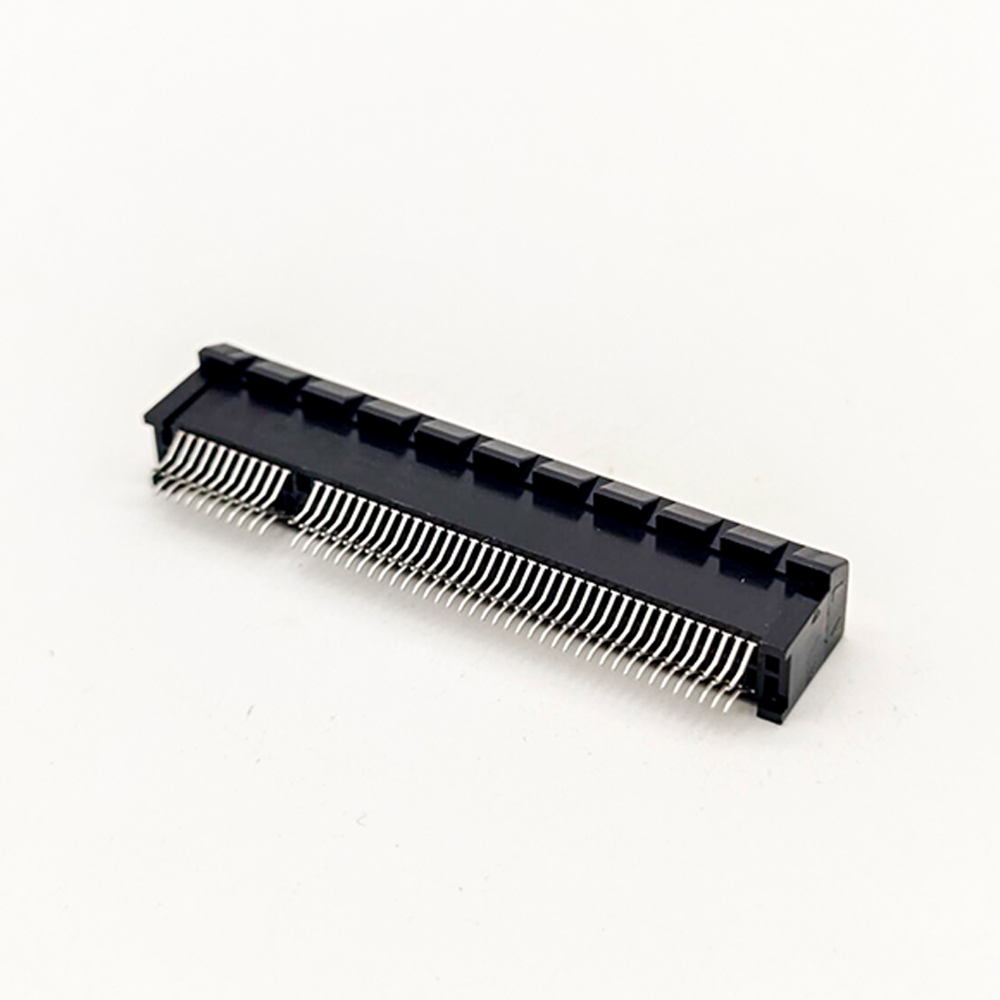

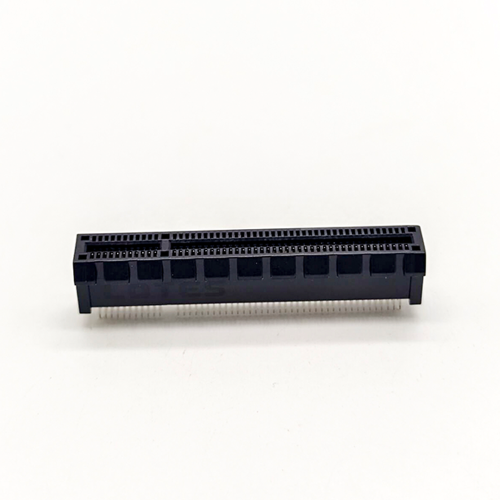

PCIE X8 Connector Pinout 98 Pin Black Splint Card Slot Connector
from
$0.54
Ex Tax: $0.54
- Stock: In Stock
- Model: SPCIE-98-M-ST-IP65-RO
- Weight: 4.80g
- SKU: SPCIE-98-M-ST-IP65-RO
Products Sold: 0
Product Views: 259
Ask a Question About This Product
- Description
Main Application
- Memory card for computer or communication equipment
- Visual equipment
- Wi-Fi
- Bluetooth
- GPS
- Solid State Storage Device (SSD)
- Global Navigation Satellite System (GNSS)
- Near Field Communication (NFC)
- Hybrid Digital Broadcast (HDR)
Electrical Characteristics
- Withstand voltage: 500Vr.m.s, 1mA, 60s
- Insulation resistance: ≥1000MΩ
- Contact resistance: ≤30MΩ
Mechanical characteristics
- Insertion force: ≤1.15N/pair of pins
- Pull-out force: ≥0.15N/pair of pins
- Mechanical life: 50 times
Environmental and Processing
- Working temperature: -40°C~+100°C
- Humidity: ≤93% (at 40^C)
- Resistance to welding heat: 265°C+5°C, 10s
Material
- Colloid: PBT+30%GF, UL94V-2
- Pin material and plating: brass, contact area Au, solder area Sn 3~5μm
