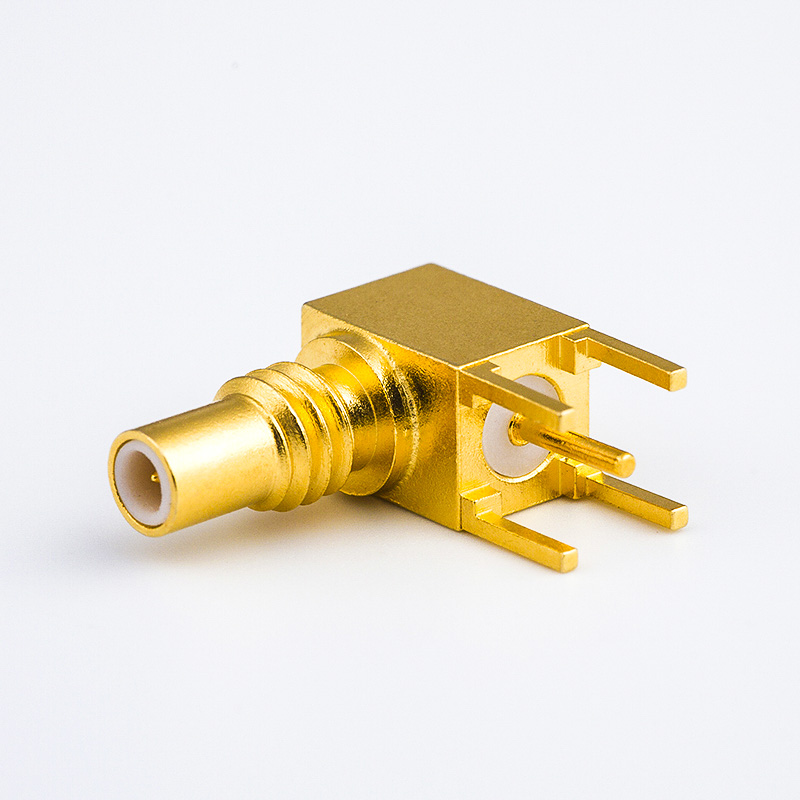

PCB Mount SSMC Connector Male Right Angle Through Hole Type

Appliance:

• Civil Aviation
• Military aerospace and missile


Electrical Characteristics

• Impedance：50 ohm
• Frequency Range: DC-  11 GHz
• Rated voltage : 250VRMS
• Voltage resistance : 250 Vmax ( effective value )
• VSWR :Straight type   DC～1GHz ≤ 1.15; 1～3GHz ≤ 1.25/  R/A type     DC～1GHz ≤ 1.20; 1～3GHz ≤ 1.35
• Contact resistance : inner conductor : ≤ 5.0 mΩ /outer conductor : ≤ 2.5 mΩ
• Insultation Resistance; ≧ 1000 mΩ


Mechanical Characteristics

• durability : 500 times（cycles）

Environmental Characteristics

• Temperature Range: -55⁰C to +155⁰C
• Vibration : 98m / s2 ( acceleration 10g ) 10 ~ 500Hz

Material:

Note : The parameters are only for reference. If there are special requirements for the parameters, please contact us for confirmation.
