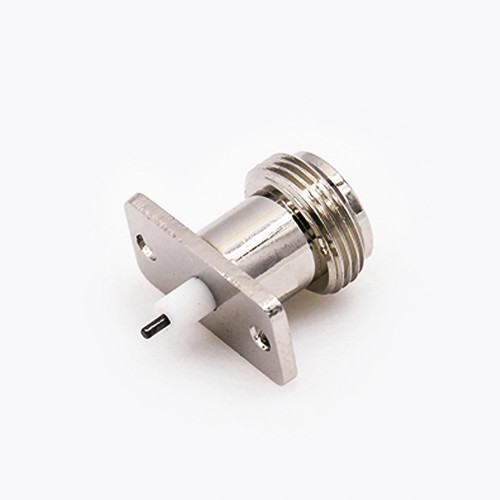

N-type Female Connector Welding Plate 2 Hole Flange Straight Solder for PCB Mount
from
$2.00
Ex Tax: $2.00
10 or more $1.84
30 or more $1.70
50 or more $1.60
100 or more $1.50
200 or more $1.40
- Stock: In Stock
- Model: JE00002014
- SKU: JE00002014
Products Sold: 0
Product Views: 49
Ask a Question About This Product
- Description
Technical data sheet:
electrical characteristics
- Impedance: 50 ohms
- Frequency range: 0~13Ghz
- VSWR: Straight t and pe ≦ 1.3max / R/A t and pe ≦ 1.5max
- Dielectric withstand voltage: 2500 V rms
- Working voltage: 1000V rms
- Center contact resistance ≦ 1.0 mΩ (milliohms max)
- External contact resistance ≦ 0.2 mΩ (milliohms max)
- Insulation resistance ≧ 5 x 10³ mΩ (Megohms min.)
mechanical properties
- Coupling: 5/8-24 thread
- Contact retention: 6 lbs min.
- Coupling Nut Torque: 30 in-lbs. minute.
- Durability (mating) ≧ 500 cycles (for beryllium copper contacts)
environmental features
- Temperature range: -65°C ~ +125°C (PE cable -40°C ~ +85°C)
- Vibration: MIL-STD-202 Method204
- Corrosion Resistance: MIL-STD-202 Method 101
Material:
| part | Material | Finish |
| Body | brass | nickel plated |
| chain | brass | nickel plated |
