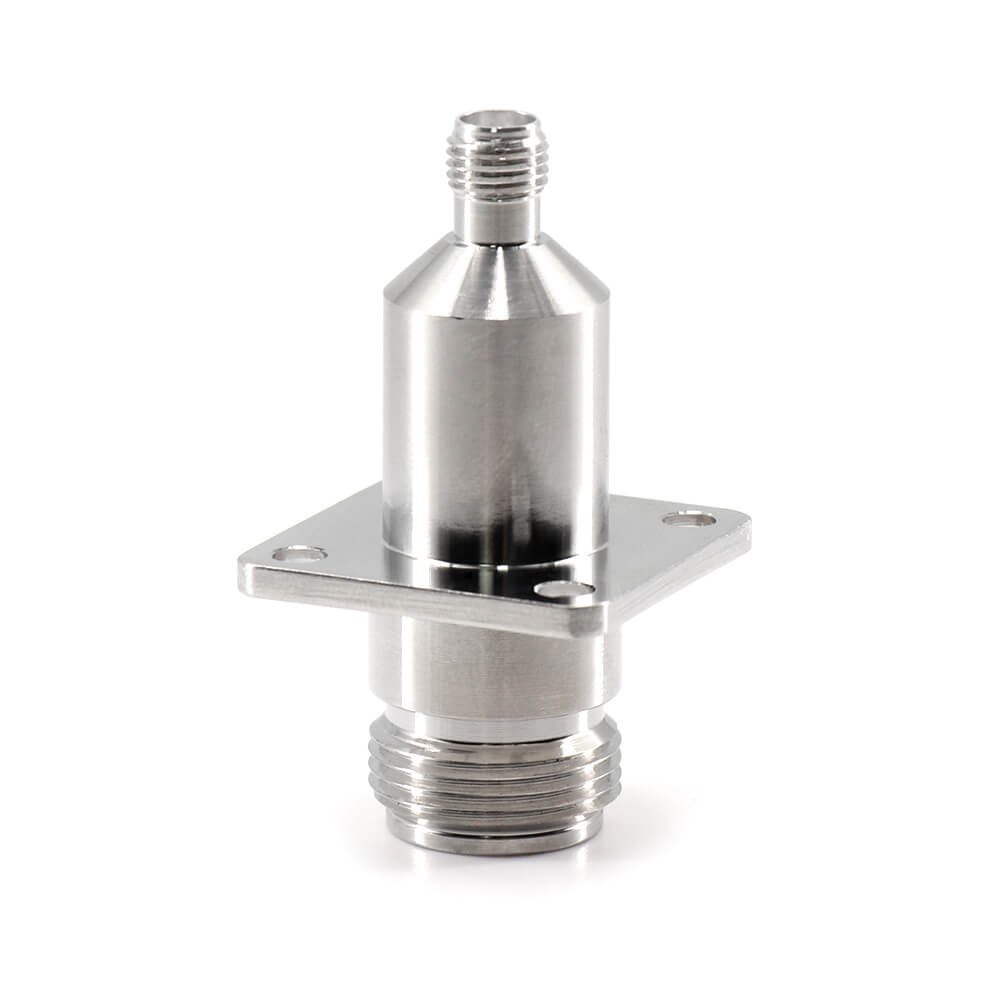

N Female To Sma Female 6Ghz 4-Hole Flange Stainless Steel Rf Coax Connector
from
$16.83
Ex Tax: $16.83
- Stock: In Stock
- Model: SAUTO-4-F-FF-S-RO-13108
- Weight: 0.05kg
- SKU: SAUTO-4-F-FF-S-RO-13108
Products Sold: 0
Product Views: 184
Ask a Question About This Product
- Description
4 ～ 8GHz：1.06 max.
8 ～ 18GHz：1.10 max.
Appliance:
- Test and measurement systems
- Network routers and switches
- RFID
- Instrumentation test fixtures equipment
- Semiconductor ATE test boards
- Radar systems
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range:DC to 18 GHz
- Rated Voltage:500VAC(r.m.s.)
- Insulation Resistance:1000M Ω (min.) at 500V DC
- Contact Resistance:3m Ω（max.)
- Shielding Effectiveness:≥ 100 dB
Mechanical Characteristics
- Mating Torque:5 - 7 in - lbs
- Connector Durability：500 mating cycles min
Environmental Characteristics
- Temperature Range：-40 〜 +85℃
Material:
| Part | Material | Finish |
| Body | Stainless Steel | Stainless stee |
| Center Contact Pin | Copper Alloy | Au Plating |
| Insulator | PTFE | white |
