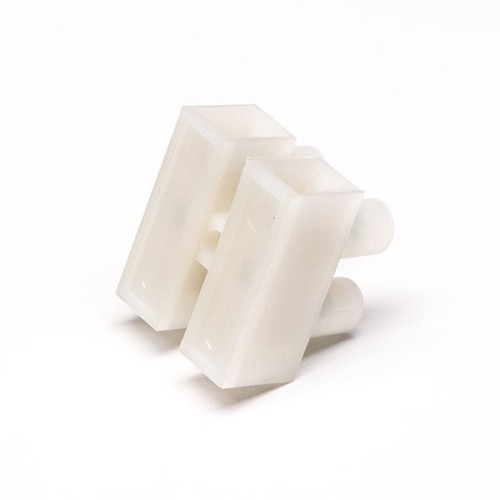

                          Ideal Terminal Strips White H Type 4 Holes Terminal Blocks
                                  Product features:
- Terminal Strips,White,Angled,12.1mm,H Type,Soder Type Cable Connector
- without fuse,connecting with two conductors easily and credibility;
- High temp and IR reflow compatible versions are available;
- supplied with open screws which shortens the time for connection
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application
- Industrial controls
- HVAC equipment and controls
- Communications equipment
- Test and measurement
- Fire and security
                                                      from


                      $0.85
                                              Ex Tax: $0.85


                                          - Stock: In Stock
- Model: JE00008527
- Weight: 8.60g
- SKU: JE00008527
Products Sold:  0
                          Product Views: 208
              Available Options
Ask a Question About This Product
- Specifications
| attribute-list | |
| Insulator Colour | White |
| Wiring Type | Solder Type |
| Direction | Right Angle |
| Spacing | 12.1mm |
| Installation method | Cable |
- Description
Electrical Characteristics
- Rate voltage:300V,450V,750V
- Rate current:10A,17.5A,20A,30A,50A,57A
- Contact resistance:20MΩ
- Insulation resistance:5000MΩ/DC500V
- Withstanding voltage:AC2500V/1Min
- Wire range:22-14AWG 0.5-2.5mm2
Mechanical Characteristics
- Torque:0.5Nm 4.43Lb.in
Environmental Characteristics
- Temperature range:-40°C ~ +110°C
- MAX soldering:+250oC for 5 sec
Material
- Screw:M2.5,M3.0,M3.5,M4.0
- Terminal:Brass,Ni plated
- Housing: Nylon PA66,UL94V-2,PA66.UL94-0
