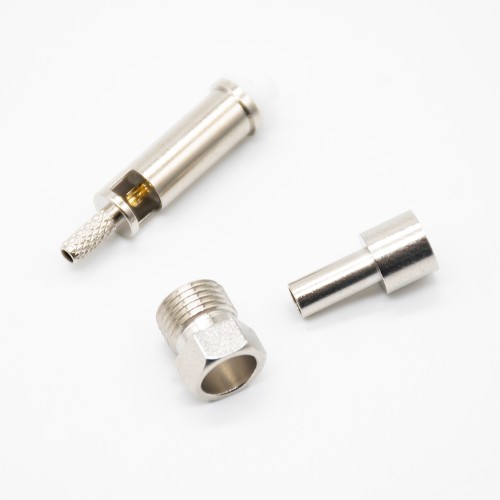

FME Straight Cable Mount Connector Jack Crimp Termination 50Ω 1.8GHz for RG174/U

FME Straight Cable Mount Connector Jack Crimp Termination 50Ω 1.8GHz for RG174/U
FME Straight Cable Mount Connector Jack Crimp Termination 50Ω 1.8GHz for RG174/U
FME Straight Cable Mount Connector Jack Crimp Termination 50Ω 1.8GHz for RG174/U
FME Straight Cable Mount Connector Jack Crimp Termination 50Ω 1.8GHz for RG174/U
FME Straight Cable Mount Connector Jack Crimp Termination 50Ω 1.8GHz for RG174/U
FME Straight Cable Mount Connector Jack Crimp Termination 50Ω 1.8GHz for RG174/U
FME Straight Cable Mount Connector Jack Crimp Termination 50Ω 1.8GHz for RG174/U
FME Straight Cable Mount Connector Jack Crimp Termination 50Ω 1.8GHz for RG174/U
FME Straight Cable Mount Connector Jack Crimp Termination 50Ω 1.8GHz for RG174/U
  • Female, Straight,Crimp,Cable Mount, Nickel,50Ω,1.8GHz, RG174/U
  • Offering excellent performance from DC to 200 MHz
  • Low diameter to allow cables it has been installed on to snack through tight access holes or spaces
  • 50 Ohm nominal impedance
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of FME Connectors:

  • Mil-Aero
  • Telecommunication
  • Cellular base stations
  • Wireless
  • defense applications
  • Radar systems

- Write a review
from
$1.32
Ex Tax: $1.32
  • Stock: In Stock
  • Model: JE00003322
  • Weight: 62.00g
  • SKU: JE00003322
Products Sold: 0
Product Views: 153
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Cooper
Terminal type Solder Type
Installation characteristics None
Gender Female
Function Other
Direction Straight
Polarity Standard
Coating Nickel Plating
Impedance 50 Ω
Installation method Cable
Outer conductor connection Crimp
  • Description
FME Straight Cable Mount Connector Jack Crimp Termination 50Ω 1.8GHz for RG174/U

Electrical Characteristics

  • Impedance:50 Ohm
  • Frequency Range: DC- 200MHz
  • VSWR：≤1.20@DC-3GHz
  • Dielectric Withstanding Voltage:≥1000V RMS,50Hz
  • Dielectric Resistance: ≥5000 MOhm
  • Working Voltage : ≤1000V
  • Contact Resistance: Center Contact ≤2.5m Ohm
  • Outer Contact ≤3.0m Ohm

Mechanical Characteristics

  • Mating ： M8XP 0.75 Thread
  • Durability (Mating times): ≥500
  • These characteristics are typical and may not apply to all connectors.

Environmental Characteristics

  • Temperature Range：-65°C to +165°C

Material:

PartMaterialFinish
BodyBRASSAu:1u"
insulatorTEFLONWHITE
Center Contact PinBRASSAu:3u"


  • Reviews

There are no reviews for this product.
