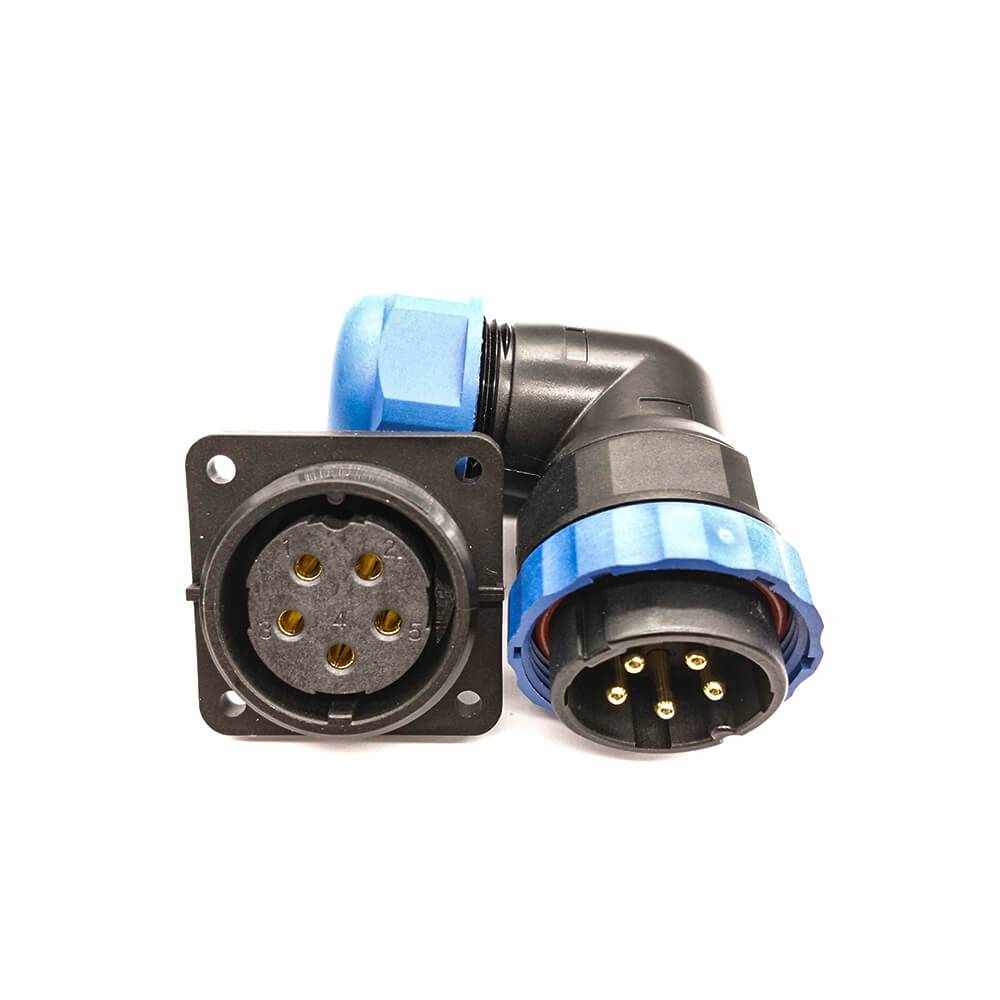

Elecbee 5 pin SP29 Plug Angled&Socket 4 Hole Flange Panel Mount Solder Type

Elecbee 5 pin SP29 Plug Angled&Socket 4 Hole Flange Panel Mount Solder Type
Elecbee 5 pin SP29 Plug Angled&Socket 4 Hole Flange Panel Mount Solder Type
Elecbee 5 pin SP29 Plug Angled&Socket 4 Hole Flange Panel Mount Solder Type
Elecbee 5 pin SP29 Plug Angled&Socket 4 Hole Flange Panel Mount Solder Type
Elecbee 5 pin SP29 Plug Angled&Socket 4 Hole Flange Panel Mount Solder Type

Features:

  • SP29,5pin,Angled,Plug,Socket,4 Hole Flange,Panel mount
  • With its IP68 rating, each product is excellent within harsh environments
  • Easy quick connect and disconnect coupling
  • High cost-effective with good quality
- Write a review
from
$7.49
Ex Tax: $7.49
  • Stock: In Stock
  • Model: JE00011097
  • Weight: 55.00g
  • SKU: JE00011097
Products Sold: 0
Product Views: 163
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Cup
Installation characteristics 4 Hole Flange/Solder Type
Connector Type one pair (Plug and Socket)
Gender Male and Female (one Pair)
Number of Positions 26 pin
Direction Straight
Installation method Panel Mount / Cable
  • Description

Electrical Characteristics

  • Insulation resistance: 1500MΩ
  • Contact Resistance: 0.5MΩ/1MΩ/2.5MΩ/5MΩ
  • Rated Voltage: 500V/ 400V
  • Rated Current: 50A/25A/10A/5A

Mechanical Characteristics

  • Mating Type: Thread coupling
  • Termination : Solder / Screw
  • Durability(mating): 500 cycles

Environmental Characteristics

  • Temprature Range:  -40°C ~ +85°C
  • IP Rating: IP68

Material :

  • Shell Material: PA66
  • Insert Material: PPS
  • Contact: Copper,Gold Plated
  • Contact Diameter: 3.5MM,2.5MM,1.5MM,1MM

Elecbee 5 pin SP29 Plug Angled&Socket 4 Hole Flange Panel Mount Solder Type

Elecbee 5 pin SP29 Plug Angled&Socket 4 Hole Flange Panel Mount Solder Type
