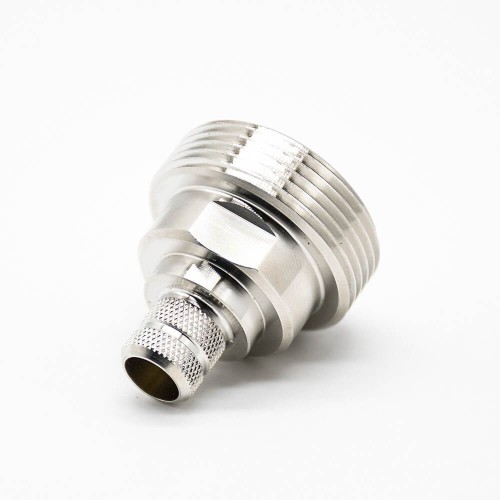

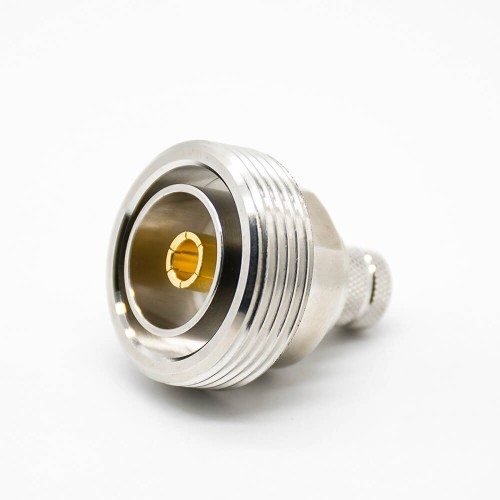

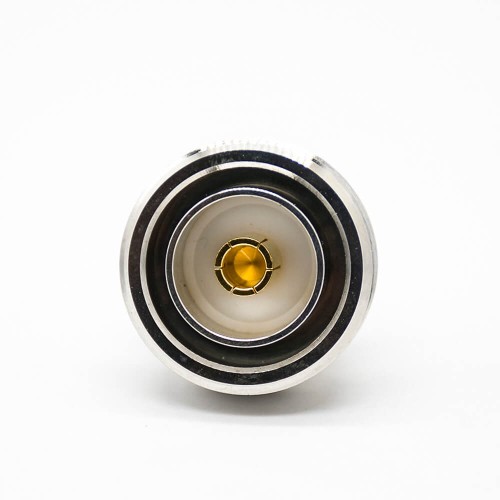

DIN Female Connector DIN7/16 50Ω Standard Cable 180°Solder Type Nickel Platin LMR400Cable
- RF Connector,DIN7/16,Female,50Ω,Standard,Cable,Straight,Solder Type,Nickel Platin,LMR400Cable
- Designed to minimize signal distortion from inter modulation;
- Screw on coupling ensure high durability and allow toolless application;
- Excellent performance up to 5.2GHz frequency.
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of DIN7/16 Connectors:
Consumer Electronic: Statellite Receivers, Statellite Radio
Aerospace and Defense: High-power communication devices
Commercial Vehicle: Bluetooth
Telecommunications: Antenna, Base Station
Industriasl: Antenna Mounts, Machine to Machine Communications
from
$6.25
Ex Tax: $6.25
- Stock: In Stock
- Model: JE00002806
- Weight: 45.00g
- SKU: JE00002806
Products Sold: 0
Product Views: 48
Ask a Question About This Product
- Specifications
attribute-list | |
Terminal type | Solder Type |
Gender | Female |
Direction | Straight |
Polarity | Standard |
Coating | Nickel Plating |
Impedance | 50 Ω |
Installation method | Cable |
Outer conductor connection | Solder |
- Description

Electrical Characteristics
- Impedance:50 ohm
- Frequency Range: 0~7 GHz
- VSWR: 1.3 max
- Dielectric Withstanding Voltage: 4000 V rms
- Voltage Rating: ≦2700 V rms
- Insultation Resistance ≧ 5000 mΩ
Mechanical Characteristics
- Coupling: M29 x 1.5 Thread
- Durability(mating) ≧ 500 cycles
Environmental Characteristics
- Environmental Characteristics: -40°C ~ +155°C
