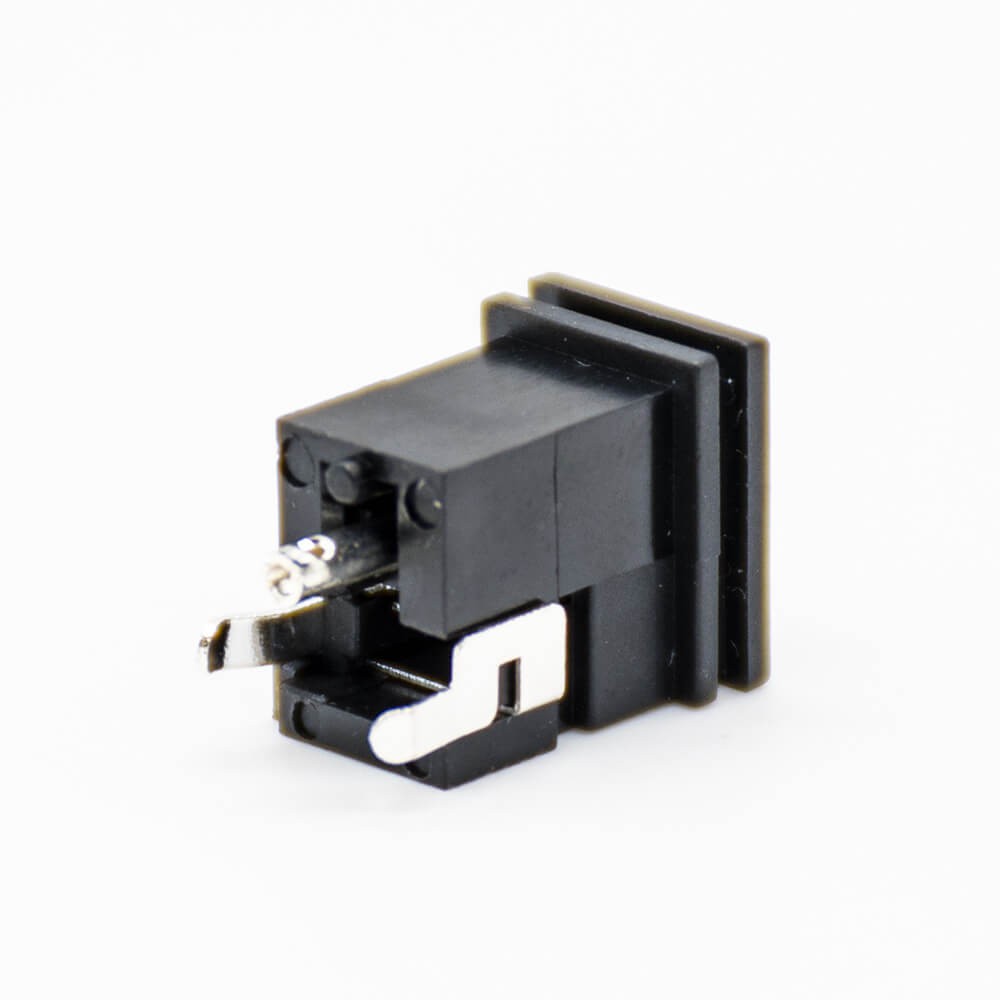

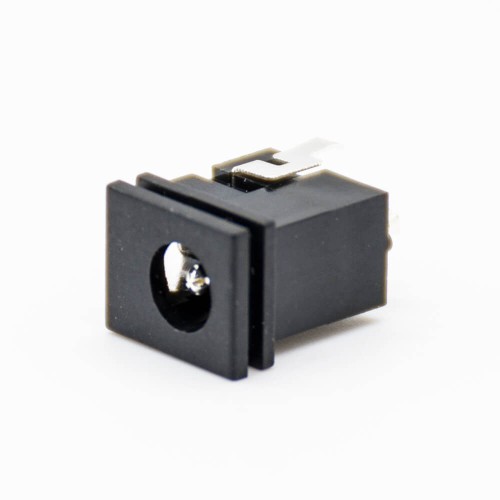

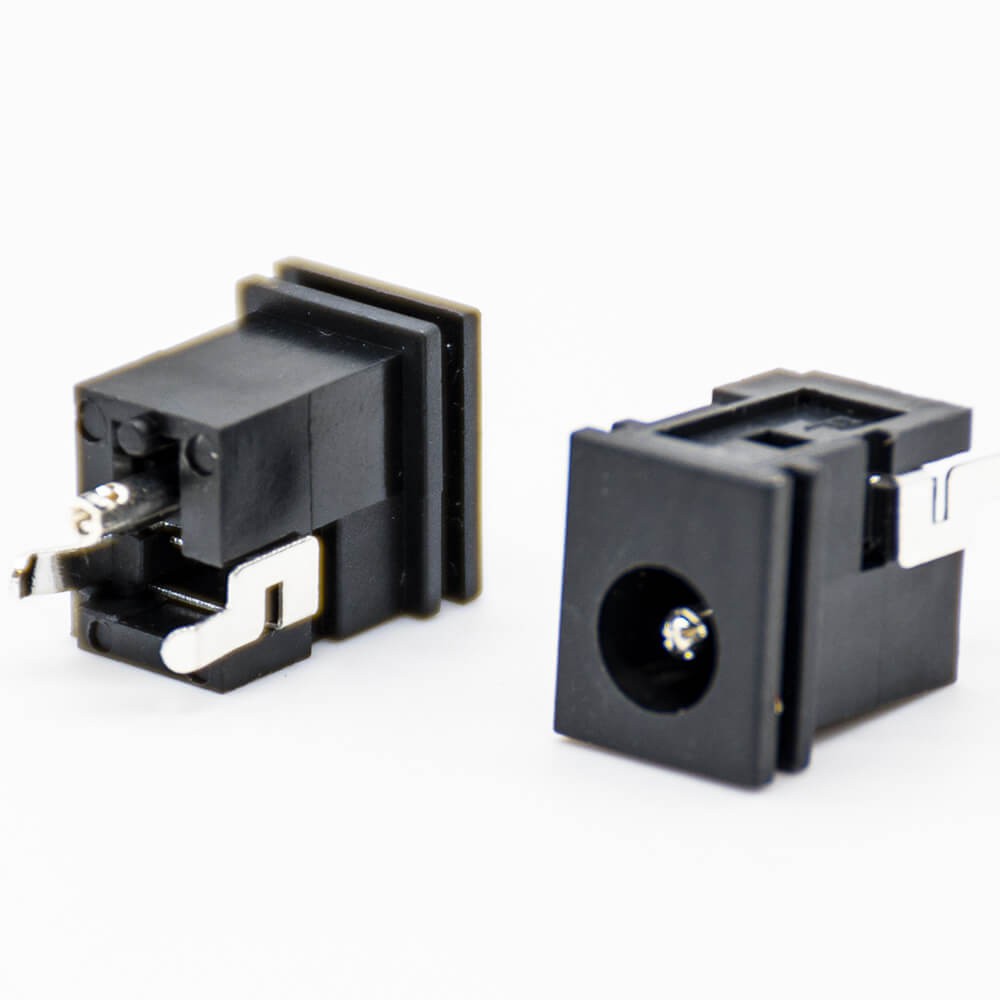

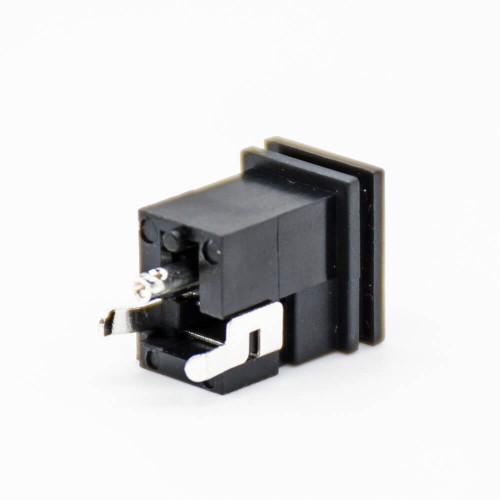

DC Connectors Power Male Jack Through Hole Solder Lug Straight Unshiled Plastic

DC Connectors Power Male Jack Through Hole Solder Lug Straight Unshiled Plastic
DC Connectors Power Male Jack Through Hole Solder Lug Straight Unshiled Plastic
DC Connectors Power Male Jack Through Hole Solder Lug Straight Unshiled Plastic
DC Connectors Power Male Jack Through Hole Solder Lug Straight Unshiled Plastic
DC Connectors Power Male Jack Through Hole Solder Lug Straight Unshiled Plastic
DC Connectors Power Male Jack Through Hole Solder Lug Straight Unshiled Plastic
DC Connectors Power Male Jack Through Hole Solder Lug Straight Unshiled Plastic

Features:

  • DC Power Connector,Male Jack,Through Hole,Solder Lug,Straight,Unshiled,Plastic,Black
  • The contact material is a silver plated copper alloy, these materials combined have the advantages of the conductive copper and the bright and shiny surface of silver which gives an aesthetically pleasing finish. In addition to the look, the silver also provides a high corrosive resistance.
  • A long shelf life of 10000 insertions and withdrawals
  • Connector bodies are moulded in ABS plastic
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • Audio / Video product
  • Digital devices
  • Remote control
  • Communication products
  • Household electrical appliance
  • Security Products
  • Toy
  • Computer products
  • Fitness equipment
  • Technology Equipment
from
$0.26
Ex Tax: $0.26
  • Stock: In Stock
  • Model: SDC-2-M-ST-S-IP67-RO
  • Weight: 1.20g
  • SKU: SDC-2-M-ST-S-IP67-RO
Products Sold: 0
Product Views: 196
  • Specifications
attribute-list
Terminal type PCB Soldering
Connector Type Socket
Gender Male
Shield Unshielded
Direction Straight
Installation method Through Hole
  • Description

Electrical Characteristics:

  • Voltage Rating: 48V AC/DC
  • Current Rating: 5A (current carry only)
  • Insulation Resistance: 1,000 MΩ min.
  • Dielectric Withstanding: 500 VAC max.

Mechanical Characteristics:

  • Installation angle : Straight/ Right Angle
  • Connector Mounting Type :  Panel Mount/PCB Mount

Environmental Characteristics:

  • Ambient temperature:  -40°C to 65°C (-40°F to 149°F)

Material:

artMaterialFinish
Pin/ Terminal BrassNickel
Shunt Terminal BrassSilver (Over Nickel)
Tip Spring Copper AlloySilver (Over Nickel)
Ground SpringStainless Steel------
Shield BrassNickel
Body BrassNickel
Contacts BrassNickel
InsulatorThermoplastic------
Hex NutDie CastNickel
