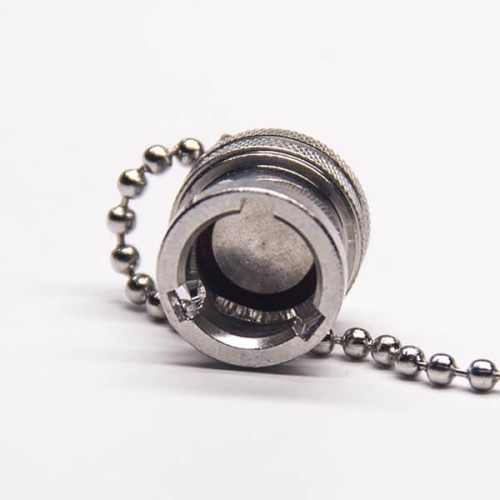

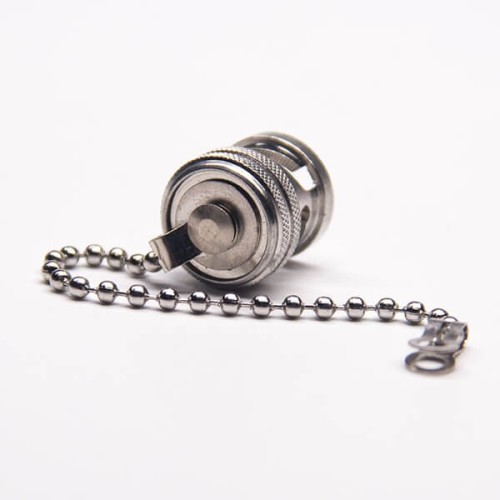

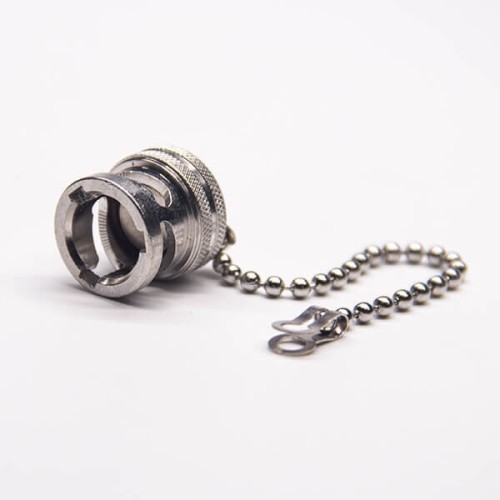

BNC Male Dust Cap with Chain Nickle Plated
from
$2.67
Ex Tax: $2.67
- Stock: In Stock
- Model: SBNC-1-M-ST-RO
- SKU: SBNC-1-M-ST-RO
Products Sold: 0
Product Views: 190
Ask a Question About This Product
- Description
Applications:
- High Speed Digital
- Instrumentation
- Military
- Aerospace
- Satellite Communication Equipment (SATCOM)
- Cable Assemblies
- Test and measurement
Electrical Characteristics
- Impedance: 50 Ohm
- Frequency range: DC~26.5GHz
- Voltage rating: 335 V(rms)
- Center contact resistance: <3.0mΩ
- Outer contact resistance: <2.0mΩ
- Insertion loss: <.1 sqrt(f(GHz)) dB
- VSWR: <1.30
Mechanical Characteristics
- Center contact retention force: >20 N
- Coupling test torque: 1.70 Nm
- Recommended torque: 0.8 Nm to 1.10 Nm
- Durability: >500 cycles
Environmental Characteristics
- Temperature Range：-65 ℃~+165 ℃
