Versatile 2-Pin Screw Terminal Blocks for Reliable PCB Connections

Versatile 2-Pin Screw Terminal Blocks for Reliable PCB Connections

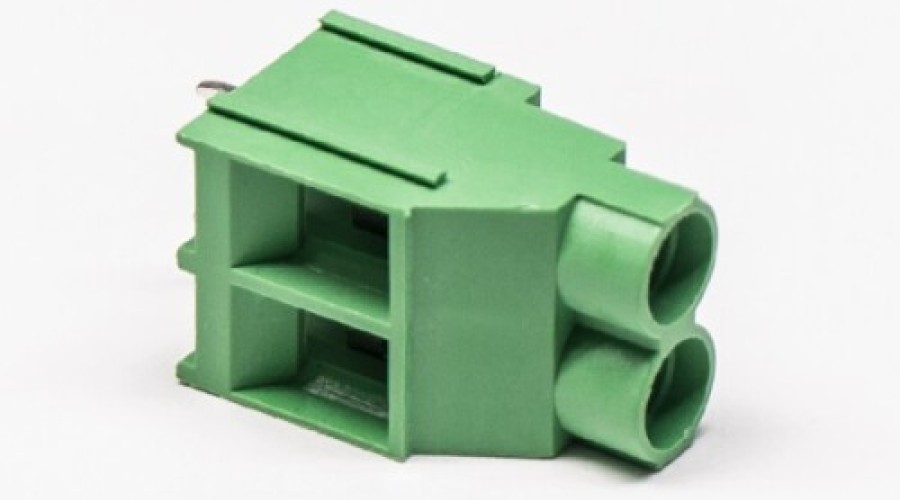

In electronic system design, secure and flexible wiring solutions form the backbone of reliable circuitry. The 2 Pin Screw Terminal Block Connector Vertical Type Green delivers professional-grade connectivity for demanding applications across industries. Engineered with nickel-plated brass contacts and UL94V-0 rated PA66 housing, these 30A-rated terminal blocks combine industrial durability with user-friendly screw clamping - perfect for prototyping or production where vibration resistance and maintenance access matter equally.



Why Screw Terminal Blocks Remain Essential

While push-in connectors gain popularity, screw terminals maintain critical advantages:

- Superior mechanical grip (0.1Nm torque specification)

- Field-serviceable connections without special tools

- Visual verification of proper wire seating

- Wider temperature tolerance (-40°C to +105°C)



Our vertical-mount solution enhances these benefits with:

✔ Color-coded green housing for quick identification

✔ Three-tiered deck options for space optimization

✔ Through-hole PCB mounting for mechanical stability



Technical Specifications & Competitive Advantages

1.Electrical Performance

- 30A current capacity - Handles power and signal lines

- 1250V withstand voltage - Exceeds industrial standards

- 26-18AWG compatibility - Flexible wire gauge acceptance

- <5mΩ contact resistance - Nickel-plated brass construction

2.Mechanical Reliability

- Zinc-plated steel screws - Corrosion-resistant clamping

- PA66 thermoplastic - Flame-retardant housing

- 0.89Lb-In torque rating - Prevents over-tightening

- Vertical orientation - Saves horizontal PCB space

3.Environmental Durability

- -40°C to +105°C range - Automotive-grade thermal stability

- 96-hour salt spray tested - Marine environment capable

- UV-resistant formula - Outdoor application suitable



Industry-Specific Applications

1.Industrial Automation

- PLC I/O module wiring

- Motor control terminal blocks

- Sensor interface connections



2.Telecommunications

- Network equipment backplanes

- Base station power distribution

- Server rack grounding points



3.Transportation Systems

- Railway signaling boxes

- EV battery management systems

- Aircraft instrumentation panels



Installation Best Practices

1. PCB Layout Considerations

- Allow 5mm clearance for screwdriver access

- Position away from heat-generating components

- Implement strain relief for cable harnesses



2. Proper Wiring Technique

- Strip 7-8mm of insulation

- Use ferrules for stranded wires

- Tighten to 0.1Nm (finger tight plus 1/4 turn)



3. Maintenance Protocols

- Annual torque verification

- Contact cleaning with isopropyl alcohol

- Visual inspection for thermal stress



Five Reasons Engineers Specify This Terminal

1. Future-Proof Design - Accommodates component upgrades

2. Mixed Wire Compatibility - Handles both solid and stranded

3. Space Efficiency - Vertical mount saves real estate

4. Safety Assurance - UL94V-0 flame rating

5. Cost-Effective - 5000+ mating cycle lifespan



The Smarter Connection Choice

The 2 Pin Screw Terminal Block Connector Vertical Type Green delivers uncompromising performance for critical electrical connections. With its industrial-grade materials, flexible configuration options, and proven reliability across temperature extremes, it outperforms spring-clamp alternatives in mission-critical applications.



Request free samples or download our terminal block selection guide to find the perfect solution for your next project. Our engineering support team is ready to assist with custom configurations for specialized applications.
