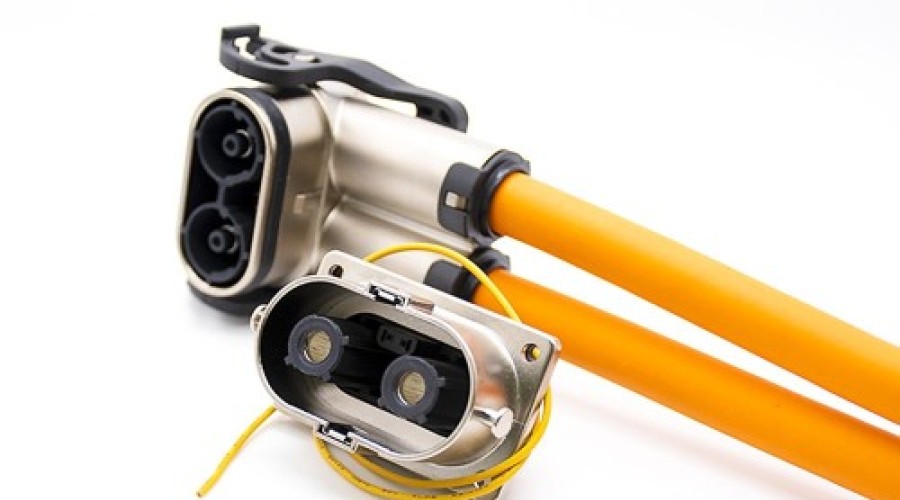

When high-voltage systems demand absolute reliability, the 125A High Current Metal Plug HVIL Connector stands as the ultimate safeguard. Engineered for mission-critical applications where failure isn't an option, this 2-pin 6mm right-angle connector combines military-grade durability with intelligent safety features - delivering flawless power transmission in the harshest conditions while preventing catastrophic misconnections.



The Hidden Dangers of Standard High-Current Connectors
Most electrical failures originate at connection points. Common industry pain points include:
- Arcing incidents from improper mating
- Corrosion-induced resistance buildup
- Accidental disconnection under vibration
- Safety hazards from exposed contacts



Our HVIL (High Voltage Interlock Loop) connector solves these through five patented technologies:
1. Military-Grade Contact System
- Forged copper alloy contacts with 50μm silver plating
- 125A continuous rating (200A surge)
- <0.2mΩ contact resistance after 10,000 cycles
- 6mm pitch prevents arc tracking

2. Intelligent Safety Architecture
- 12-position mechanical coding (prevents misplugging)
- Secondary locking mechanism (audible click confirmation)
- HVIL circuit integration (powers down before disconnection)

3. Environmental Fortification
- IP67 submersible rating (1m for 30 minutes)
- UV-resistant composite housing
- -40°C to 125°C operational range
- Salt spray tested per MIL-STD-810G



Industry-Specific Applications That Demand This Performance:
1.Electric Vehicle Charging Systems
- Handles rapid charge cycles without degradation
- Touch-proof design meets IEC 62196
- Withstands 25G vibration in automotive environments

2.Industrial Battery Arrays
- Prevents thermal runaway in energy storage systems
- Accommodates 25mm² cables without strain
- Flame-retardant materials (UL94 V-0)

3.Renewable Energy Installations
- Survives desert UV and coastal salt exposure
- Polarized design prevents reverse polarity
- Integrated strain relief for field servicing



Technical Breakdown: The Materials Science Advantage
1.Contact Physics
The beryllium copper contact springs:
- Maintain constant force (±10%) through lifetime
- Self-cleaning action removes oxidation
- 50% higher fatigue resistance than phosphor bronze

2.Dielectric Performance
Our glass-filled PPS housing:
- 18kV/mm dielectric strength
- CTI >600 (comparative tracking index)
- 0.5% water absorption (vs 3% for standard nylons)

3.The ROI Calculation
While premium-priced, this connector delivers:
- 50% longer service life than competitors
- Eliminates $15,000+ downtime events
- Reduces warranty claims by up to 90%
- Certified for global markets (CE, UL, TUV)

4.Installation Best Practices
1. Always engage secondary lock (audible click)
2. Use proper crimping tools for 25mm² terminations
3. Apply dielectric grease in marine environments
4. Perform annual contact resistance checks

Safety Certifications:
- IEC 60529 IP67
- UL1977 recognized
- SAE J1742 compliant
- RoHS/REACH compliant

The Connector That Protects Your People and Equipment
In high-voltage applications, connections shouldn't be the weakest link. Our 125A HVIL Connector delivers absolute electrical safety and relentless reliability - whether in electric vehicles, industrial automation, or renewable energy systems.



Contact our engineering team today for application-specific recommendations and volume pricing. We'll help you implement the right connection solution for your high-current challenges.
