- Stock: In Stock
- Model: SAUTO-1-M-CBL-S-95W-IP20-RO
- Weight: 5.80g
- SKU: SAUTO-1-M-CBL-S-95W-IP20-RO
Ask a Question About This Product
- Description

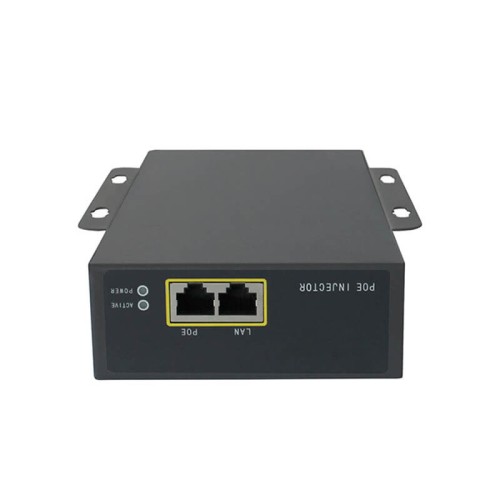

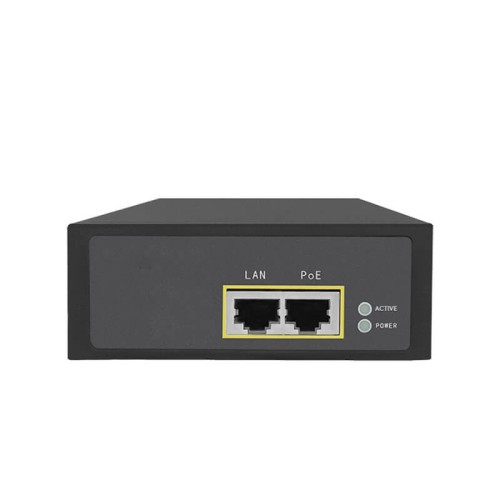

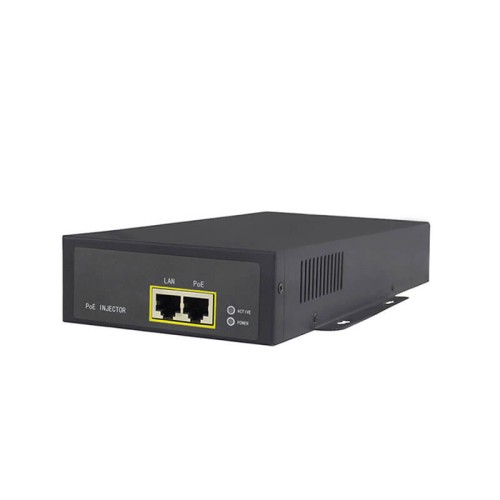

Designed for the PoE++ powered 95W PoE Powered Devices (PDs), such as wireless APs,base stations, high power cameras, door locks, displays, POS, information kiosks and other high power Ethernet terminals. It is compatible and safe to use with any IEEE802.3af/at/PoE++ compliant terminals, It supports 10/100/1000Mbps of data rates. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.
Enclosed in an IP20 high-impact metal case, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. The effective distance limitation is 100 meters over Cat5e/Cat6 cables.
| Parameter | Description |
| Key Features | Industrial PoE can be outdoor use by covered with waterproof case |
| Extend temperature from -40℃ to 65℃ | |
| Lighting Protection both at PoE and AC port | |
| Gigabit data rates | |
| IP20 high-impact metal enclosure | |
| AC power cord with optional US or EU plug or other standard plug | |
| Diagnostic LEDs | |

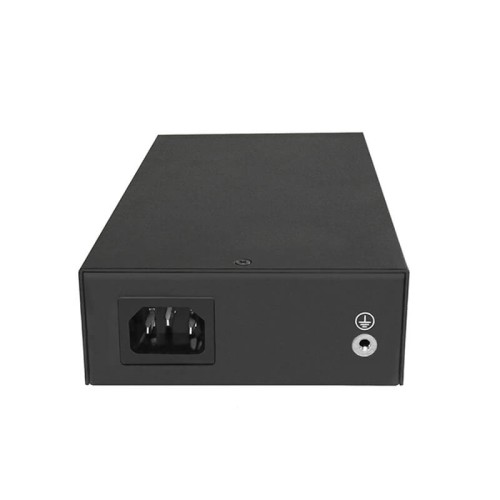

| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 Earth port *1 |
| Regulatory Compliance | IEEE802.3bt |
| RoHS Compliance | |
| WEEE Compliance | |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: |
| 4/5 (+), 7/8 (–) & 3/6(+), 1/2(-) | |
| Output Power Voltage: 55Vdc | |
| Output Current: 1.75A | |
| User Port Power: 95W Guaranteen | |
| Input | AC Input Voltage:90 to 264Vac(100 to 240Vac Rated) |
| AC Input Current: 2.0A | |
| Frequency: 47 to 63Hz (50/60Hz Typ.) | |
| Working Environment | Operating Temperature: -40℃ to 65℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Storage Temperature: -40℃ to 85℃ | |
| Storage Humidity: 10% to 90%, non-condensation | |
| Operating Altitude: up to 5000meters | |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 |
| Common mode surge protection(10/700us): 6KV | |
| Differential mode surge protection (10/700us): 1.5KV | |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 6KV |
| Line-Line 1.2/50us (8/20us): 4KV | |
| Mechanical Characteristics | Case: Metal |
| Color: Black | |
| Mounting: Wall-mounted | |
| IP Rated: IP20 | |
| Connectors: Shielded RJ-45*2 | |
| Size: 214mmX 134mmX 41mm | |
| Weight: 1070g（2.36lb） | |
| LED Indicator | Power Indicator : Green |
| PoE Load Indicator : Green | |
| Safety Approvals | cUL/UL, CE, CB, FCC, KCC, RCM, NOM |
