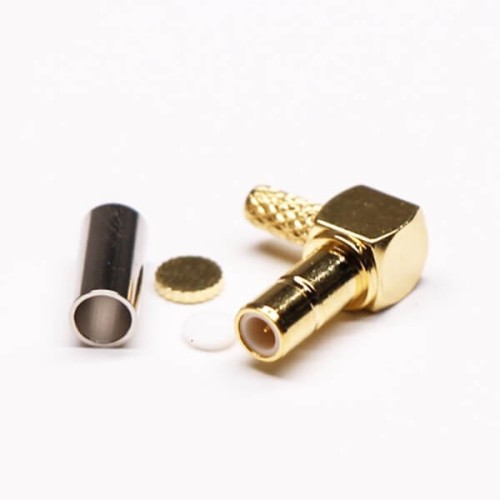

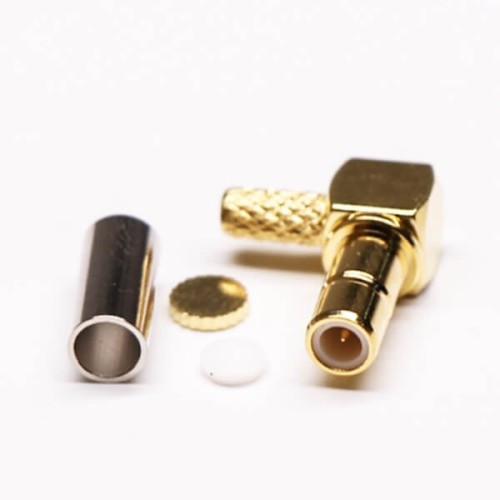

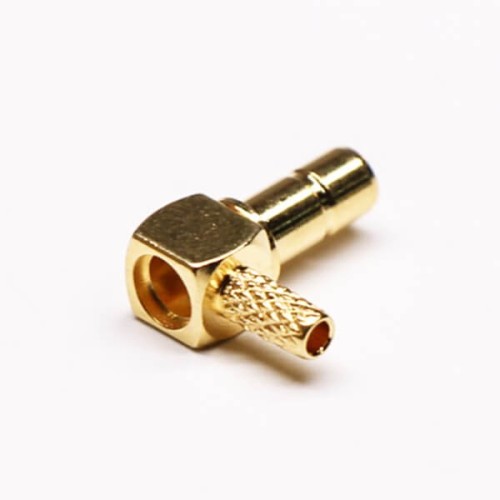

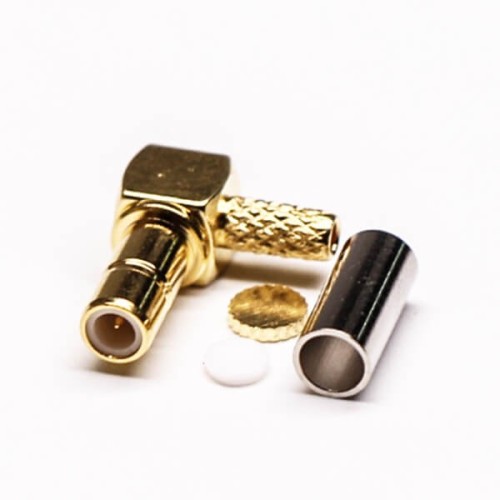

90 Degree SMB Connector Female Crimp Type for Cable Gold Plating

Electrical Characteristics

• Impedance：50 ohm
• Frequency Range: 0~4 GHz
• VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
• Dielectric Withstanding Voltage:
  1000 V rms min for RG316, RG402
  750 V rms min. for RG178
• Working Voltage:
  335 V rms max. for RG316, RG402
  250 V rms max. for RG178
• Center Contact Resistance ≦ 6.0 mΩ  (Milliohms max.)
• Outer Contact Resistance  1.5 mΩ  (Milliohms max.)
• Insultation Resistance ≧ 1000 mΩ(Megohms min.)

Mechanical Characteristics

• Coupling: Snap-on
• Contact Retention: 4 lbs min.
• Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

• Environmental Characteristics: -65°C ~ +155°C
• Vibration: MIL-STD-202 Method204
• Corrosion Resistance: MIL-STD-202 Method 101

Material:
