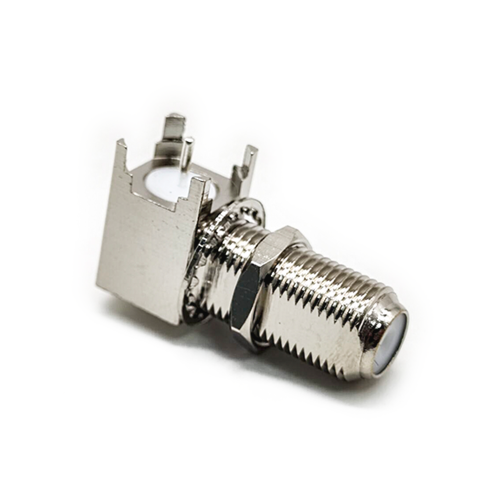

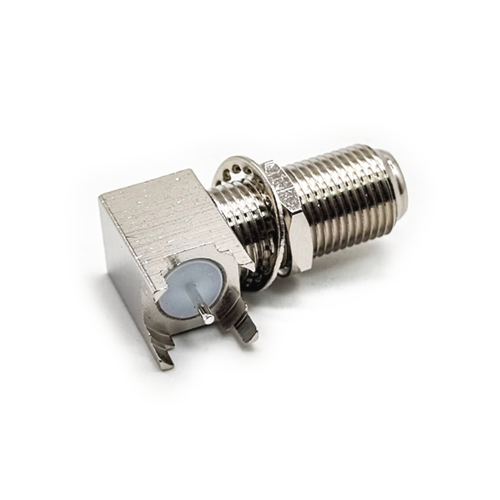

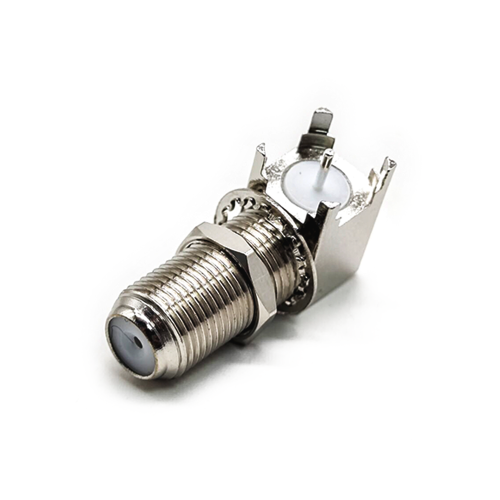

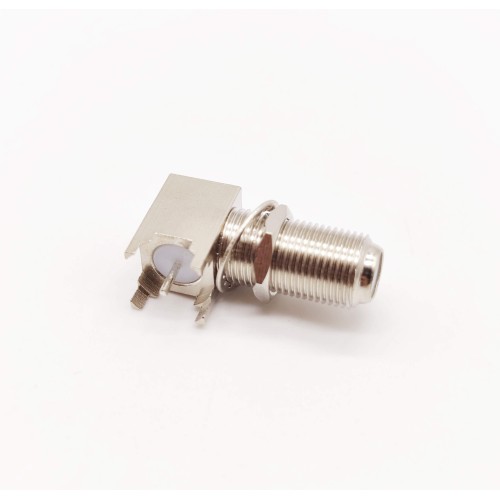

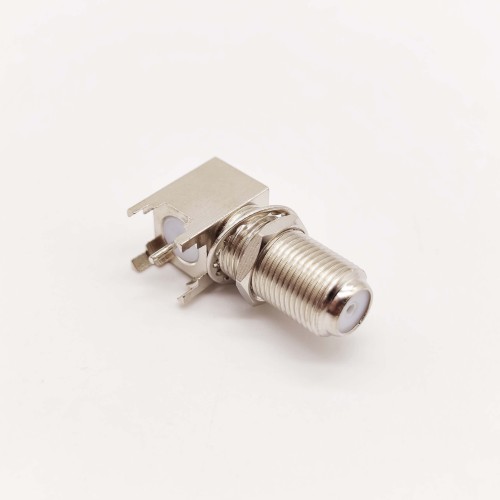

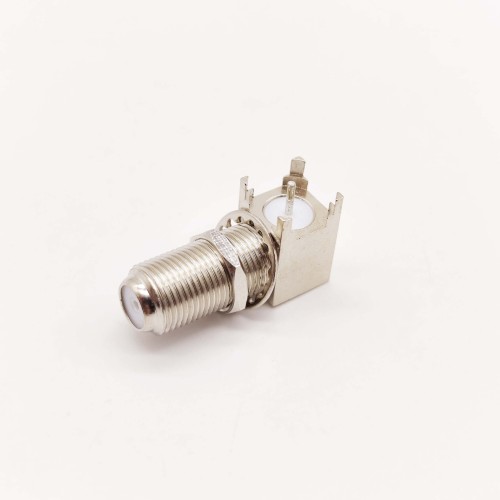

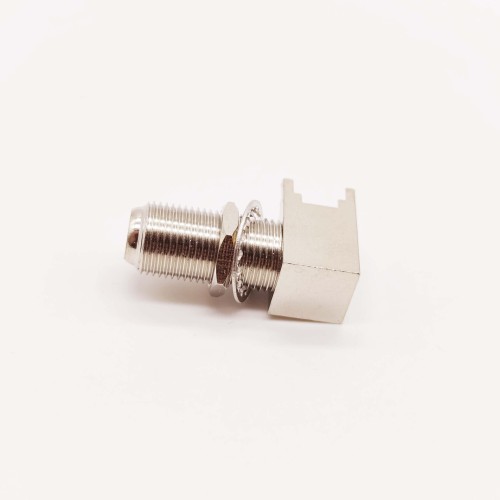

90 Degree F Type Connector Female Bulkhead for PCB Mount
from
$1.00
Ex Tax: $1.00
- Stock: In Stock
- Model: JE00000935
- Weight: 11.00g
- SKU: JE00000935
Products Sold: 0
Product Views: 161
Ask a Question About This Product
- Description
Electrical Characteristics
- Impedance：75 ohm
- Frequency Range: 0~3Ghz
- VSWR: Straight type ≦ 1.2max / R/A type ≦ 1.3max
- Withstanding Voltage: 500 V rms
- Working Voltage: 170 V rms
- Center Contact Resistance ≦ 10 mΩ
- Outer Contact Resistance ≦ 5 mΩ
- Insultation Resistance ≧ 1000 mΩ
- RF Leakage -100dB min @1GHz
Mechanical Characteristics
- Coupling: 3/8-32 thread
- Cable Retention: 20 lbs min.
- Durability(mating) ≧ 500 cycles
Environmental Characteristics
- Temprature Range: -40°C ~ +60°C
Material:
| Part | Material | Finish |
| Body | Brass | Nickel(Ni) |
| Center Contact Pin | Brass | Nickel |
| Insulator | POM | White |
