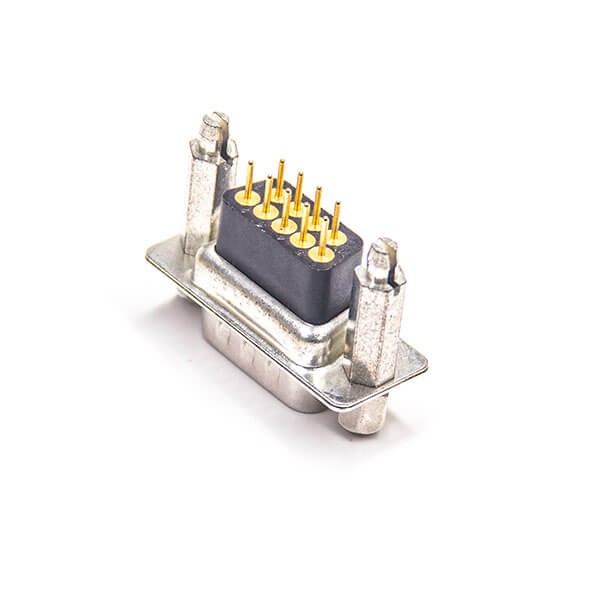

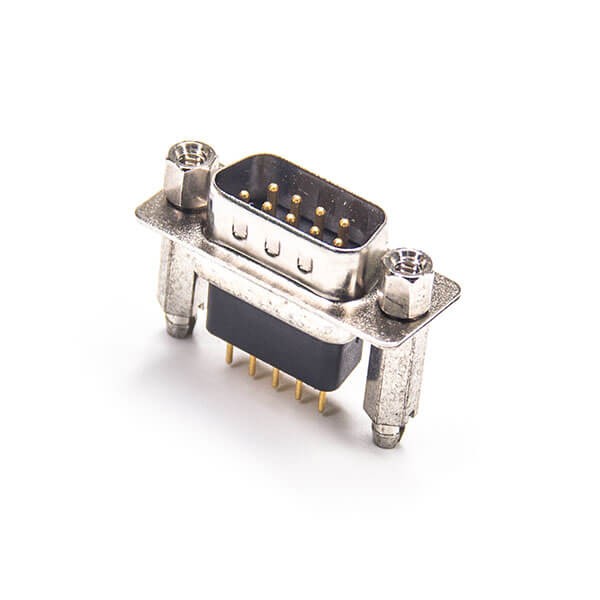

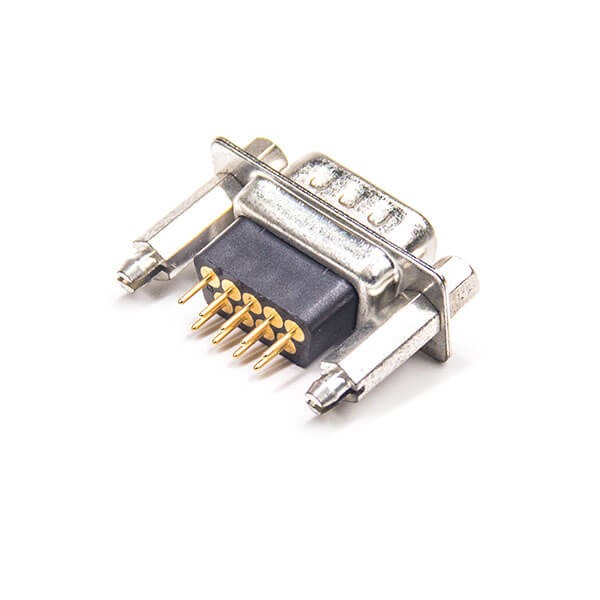

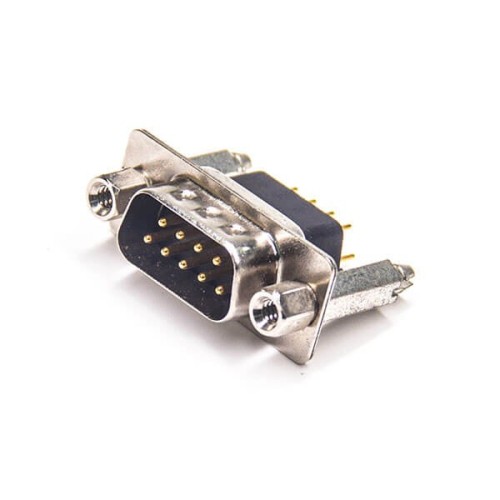

9 pin d sub Connector Male Straight Type For PCB Mount Machined Contacts

9 pin d sub Connector Male Straight Type For PCB Mount Machined Contacts
9 pin d sub Connector Male Straight Type For PCB Mount Machined Contacts
9 pin d sub Connector Male Straight Type For PCB Mount Machined Contacts
9 pin d sub Connector Male Straight Type For PCB Mount Machined Contacts
9 pin d sub Connector Male Straight Type For PCB Mount Machined Contacts
9 pin d sub Connector Male Straight Type For PCB Mount Machined Contacts
9 pin d sub Connector Male Straight Type For PCB Mount Machined Contacts
9 pin d sub Connector Male Straight Type For PCB Mount Machined Contacts
9 pin d sub Connector Male Straight Type For PCB Mount Machined Contacts

Features:

  • Machined Pin D-sub, 9 Pin,2 Rows, Single Port, Straight Type, Machined Pin, Panel Mount, Front open screw-lock, Without Filtered, Positioning column:12mm
  • Precision turned contacts;
  • D-sub tinned and dimpled shell options – for enhanced electrical continuity and effective EMI/RFI shielding;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, the same quality with a much better price.
- Write a review
from
$1.19
Ex Tax: $1.19
  • Stock: In Stock
  • Model: JE00004103
  • Weight: 10.27g
  • SKU: JE00004103
Products Sold: 0
Product Views: 162
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Through Hole
Installation characteristics Front Close Screwlock(4-40)
Connector Type Plug
Number of Positions 9 pin
Continuous plating machined pin
Direction Straight
Number of Rows 2
Filter No
Waterproof level Not Waterproof
Port number Single
Installation method PCB Mount
  • Description

Applications:

  • Business equipment
  • Electronic office systems
  • Data communications
  • Technology equipment
  • Mobile communications
  • Consumer electronics

Electrical Characteristics

  • Voltage Rating :300 V AC/rms 50Hz
  • Withstanding Voltage :1000V AC/ rms 50Hz for one minute
  • Insulation Resistance：5000MΩ
  • Contact Resistance：D: 8.5mΩ max. DF: 5mΩ max

Environmental Characteristics

  • Operating Temperature:D: -67°F (-55°C) to +185°F (85°C),

                                             DF: -67°F (-55°C) to + 257°F (125°C)

Material:

Part Material Finish
Body Steel -------
Center Contact Pin Brass Gold
Insulator Glass-filled thermoplastic
------

9 pin d sub Connector Male Straight Type For PCB Mount Machined Contacts

9 pin d sub Connector Male Straight Type For PCB Mount Machined Contacts

9 pin d sub Connector Male Straight Type For PCB Mount Machined Contacts

9 pin d sub Connector Male Straight Type For PCB Mount Machined Contacts

  • Reviews

There are no reviews for this product.
