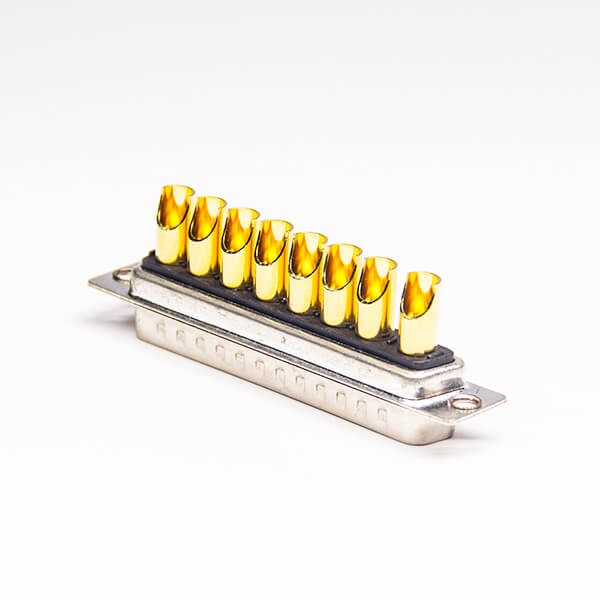

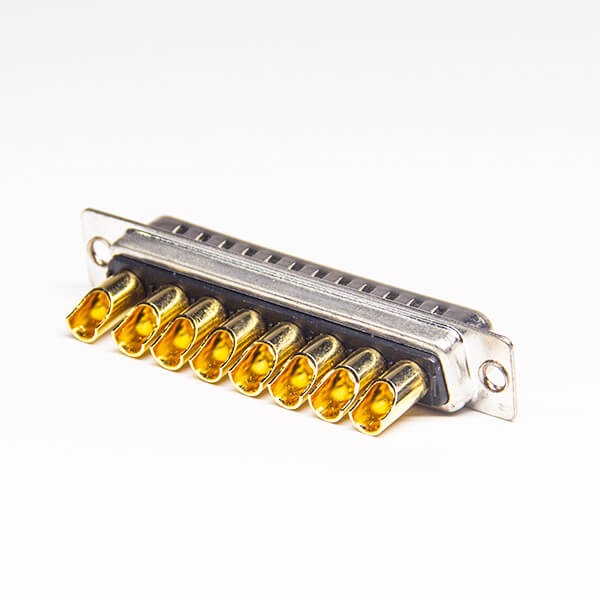

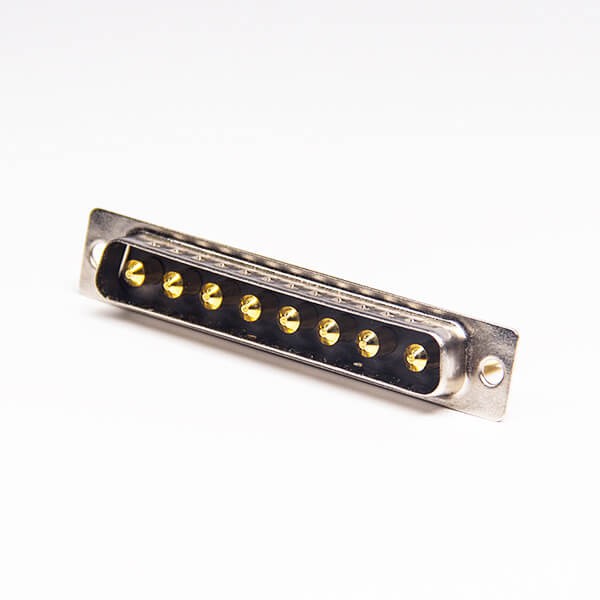

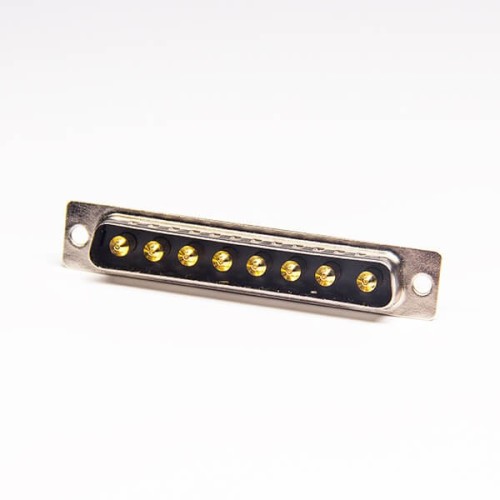

8W8 Power D sub Connector Male Machined Pin 180 Degree Solder Type 20pcs

Applications:

• medical electronics
• wireless outdoor telecom systems
• industrial automation
• oil exploration
• printers and displays
• diagnostic systems

Electrical Characteristics

• Current Rating: Signal & Power Contacts 300 VRMS at 50 Hz
• Frequency range: 0 -1 GHz
• VSWR: 1.4 (+0.04/GHz)
• Characteristic Impedance:50 Ohms
• Dielectric Withstanding Voltage ≥ 1000V R.M.S. at 50Hz
• Insulation Resistance ≥ 5000 megaohms at 500 V D.C.
• Contact Resistance ≤5 milliohms

Mechanical Characteristics

• Mechanical operations ：up to 500

Environmental Characteristics

• Operating Temperature：67°F (-55°C) to 311°F (+155°C)
                                        with peaks up to 356°F (180°C)
