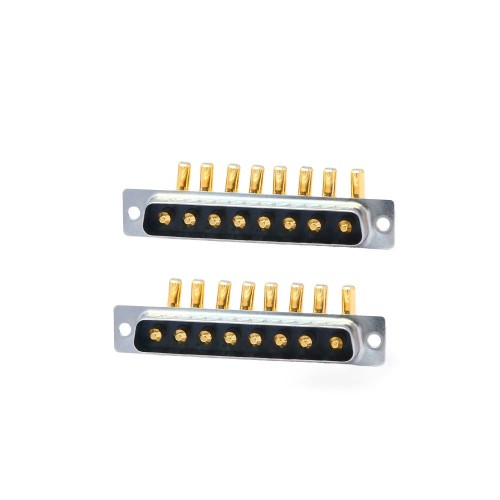

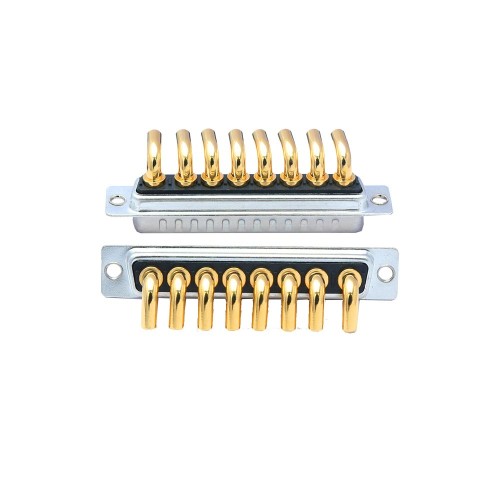

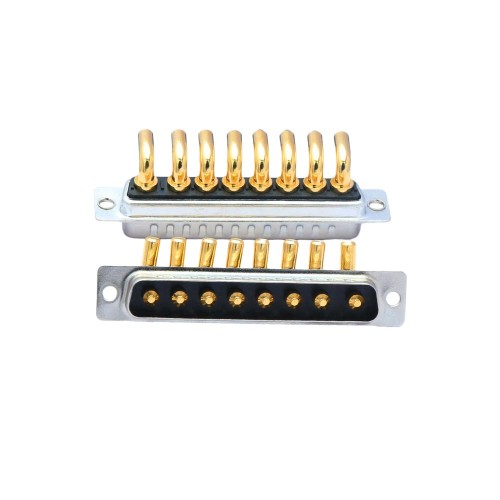

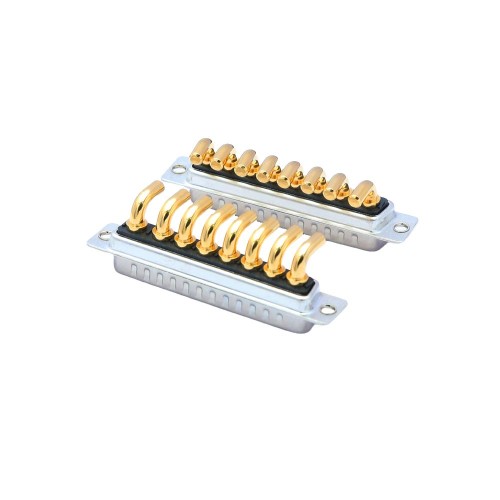

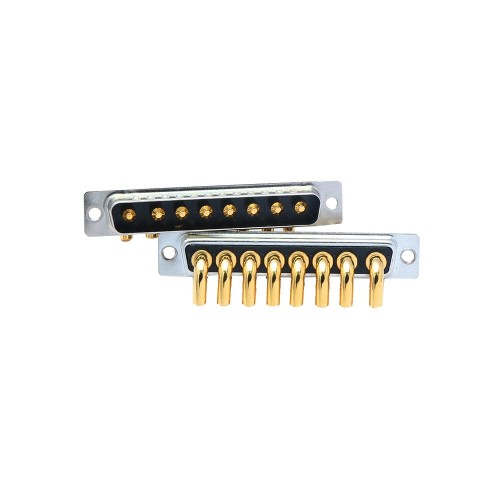

8W8 DB Male 90° Through Hole 10A 20A 30A 40A Machine pin Single Hole

8W8 DB Male 90° Through Hole 10A 20A 30A 40A Machine pin Single Hole
8W8 DB Male 90° Through Hole 10A 20A 30A 40A Machine pin Single Hole
8W8 DB Male 90° Through Hole 10A 20A 30A 40A Machine pin Single Hole
8W8 DB Male 90° Through Hole 10A 20A 30A 40A Machine pin Single Hole
8W8 DB Male 90° Through Hole 10A 20A 30A 40A Machine pin Single Hole
8W8 DB Male 90° Through Hole 10A 20A 30A 40A Machine pin Single Hole
8W8 DB Male 90° Through Hole 10A 20A 30A 40A Machine pin Single Hole
8W8 DB Male 90° Through Hole 10A 20A 30A 40A Machine pin Single Hole
8W8 DB Male 90° Through Hole 10A 20A 30A 40A Machine pin Single Hole
8W8 DB Male 90° Through Hole 10A 20A 30A 40A Machine pin Single Hole
8W8 DB Male 90° Through Hole 10A 20A 30A 40A Machine pin Single Hole

Features:

  • D-SUB ,8W8 ,Male,Right Angled,Through Hole,10A 20A 30A 40A,Gold Plated,Machine pin,Single Hole

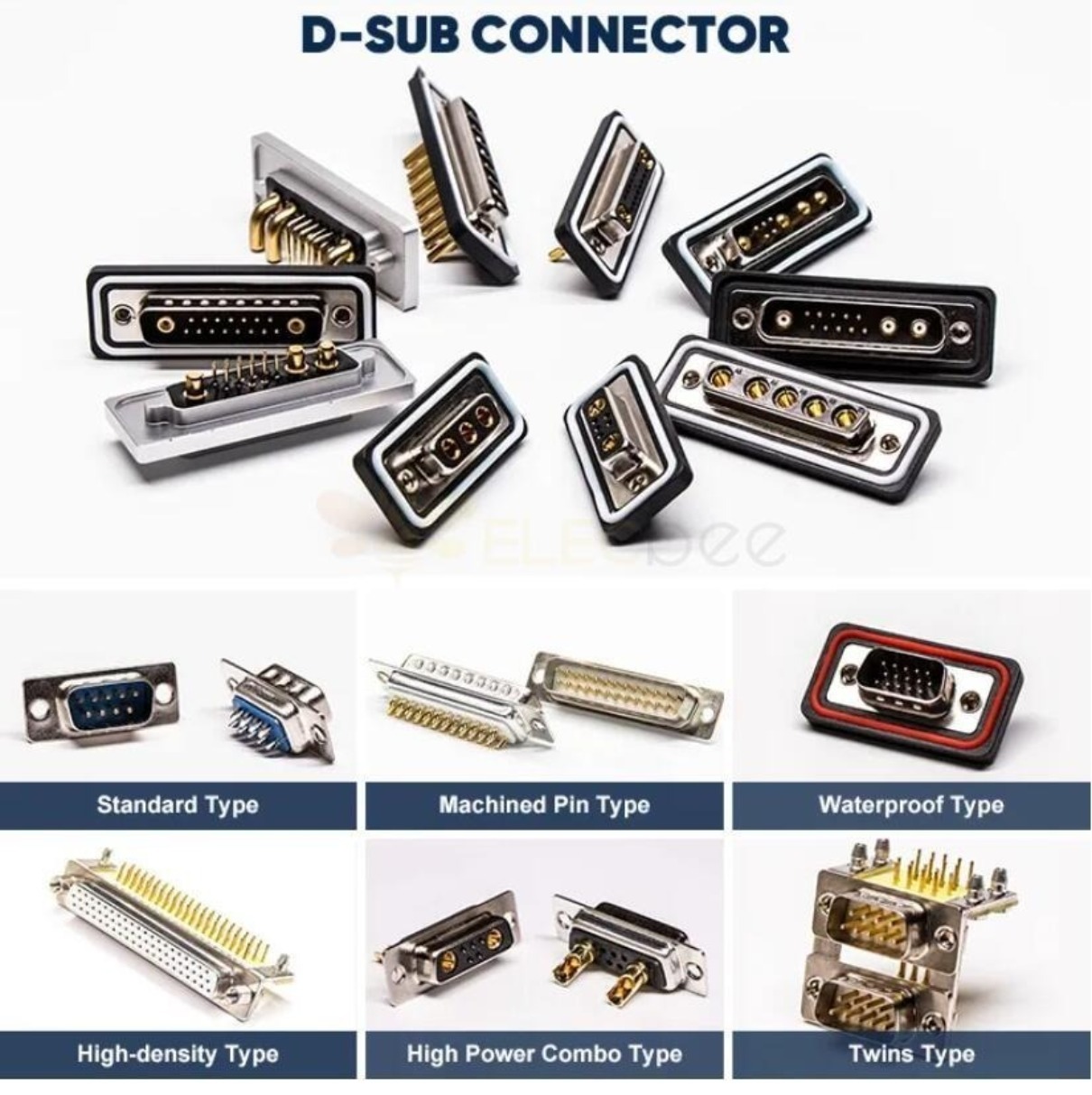

  • D-Sub connectors are worldwide known as standardized V/Cinterfaces for several applications
  • lndirect mating system lnternational approvals UL & CSA
  • 3 different connector types available: vertical,angled and cable connectors
  • Number of Pins：A=15 Pin , B=25 Pin , C=37 Pin , D=50 Pin , E=9 Pin
- Write a review
from
$6.07
Ex Tax: $6.07
  • Stock: In Stock
  • Model: JE00003759
  • Weight: 35.22g
  • SKU: JE00003759
Products Sold: 0
Product Views: 165

Available Options

Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list

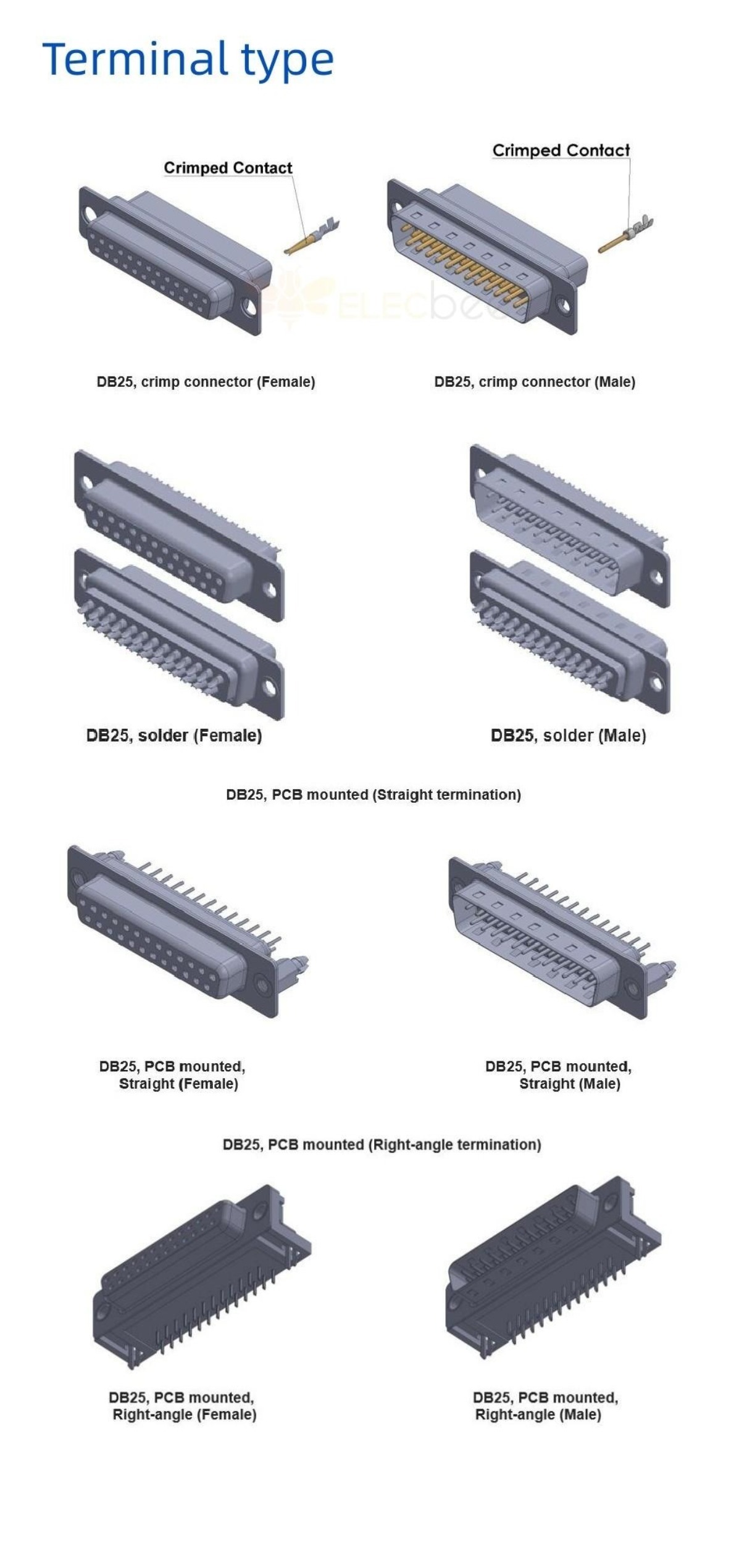

Terminal type OffsetType/Through Hole
Installation characteristics Screw Locks
Gender Male
Number of Positions 8W8
Continuous plating Gold
Direction Right Angle
Number of Rows 1
Waterproof level Not Waterproof
Installation method Cable/PCB Mount/Panel Mount
  • Description



Applications：

  • Commercial equipment
  • Electronic office system
  • Data communication
  • Medical equipment
  • Mobile communication
  • Consumer electronics

8W8 DB Male 90° Through Hole 10A 20A 30A 40A Machine pin Single Hole8W8 DB Male 90° Through Hole 10A 20A 30A 40A Machine pin Single Hole













Electrical Characteristics

  • Voltage Rating：300V AC/ rms 50Hz
  • Withstanding Voltage：1000V AC/ rms 50Hz for one minute
  • Insulation Resistance：1000MΩ at 500V DC
  • Contact Resistance ：20 MΩ max.

Mechanical Characteristics

  • Single Contact Insertion Force：1.19 lb. (0.54 kg.) max.
  • Single Contact Withdrawal Force：0.13 lb. (0.06 kg.) min.

Material:

Part Material Finish
Body Steel -------
Center Contact Pin Brass Gold
Insulator Glass-filled thermoplastic
------
