- Stock: In Stock
- Model: JE00006495
- Weight: 5.80g
- SKU: JE00006495
Ask a Question About This Product
- Description

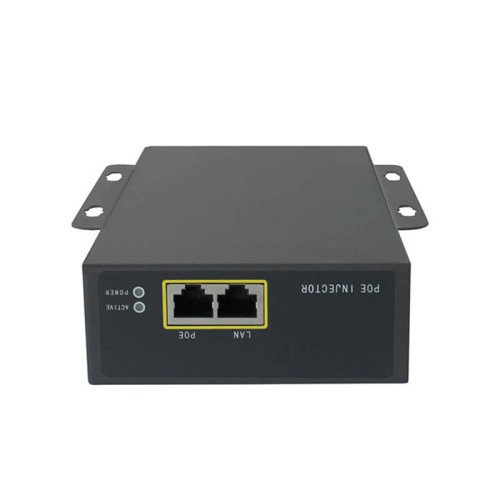

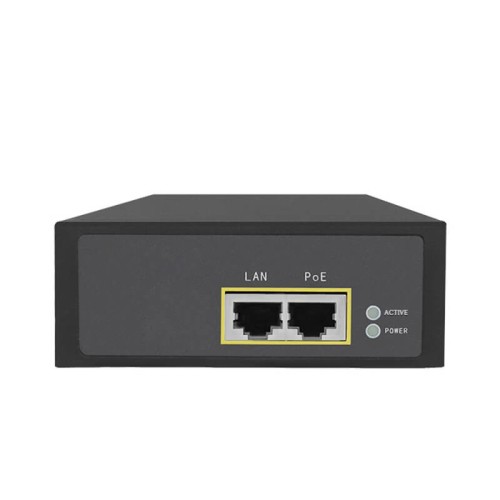

Designed for the PoE++ powered 75W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radios, IoT applications, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.
Enclosed in an IP20 high-impact metal case, designed for indoor use but can work outdoor by covered with a waterproof case. It works with a wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. The effective distance limitation is 100 meters over Cat5e/Cat6 cables.
| Parameter | Description |
| Key Features | Industrial PoE can be outdoor use by being covered with a waterproof case |
| Extend temperature from -40℃ to 65℃ | |
| Lighting Protection both at AC and PoE port | |
| Gigabit data rates | |
| IP20 high-impact metal enclosure | |
| AC power cord with optional US or EU plug or another standard plug | |
| Diagnostic LEDs | |
| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3bt |
| RoHS Compliance | |
| WEEE Compliance | |
| Pass-Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: |
| 4/5(+), 7/8(-) and 3/6(+),1/2(-) | |
| Output Power Voltage: 55Vdc | |
| User Port Power: 75W Guarantee | |
| Input | AC Input Voltage:90 to 264Vac(100 to 240Vac Rated) |
| AC Input Current: 1.5A | |
| Frequency: 47 to 63Hz (50/60Hz Typ.) | |
| Working Environment | Operating Temperature: -40℃ to 65℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Storage Temperature: -40℃ to 85℃ | |
| Storage Humidity: 10% to 90%, non-condensation | |
| Operating Altitude: up to 5000meters | |
| PoE Surge Protection | Protected lines: 1,2,3,4,5,6,7,8 |
| Common mode surge protection(10/700us): 6KV | |
| Differential mode surge protection (10/700us): 1.5KV | |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 6KV |
| Line-Line 1.2/50us (8/20us): 4KV | |
| Mechanical Characteristics | Case: Metal |
| Color: Black | |
| Mounting: Wall-mounted | |
| IP Rated: IP20 | |
| Connectors: Shielded RJ-45*2 | |
| Size:204 X 130 X 41mm | |
| Weight: 737g（1.62lb） | |
| LED Indicator | Power Indicator: Green |
| PoE Load Indicator: Green | |
| Safety Approvals | CE, FCC |
