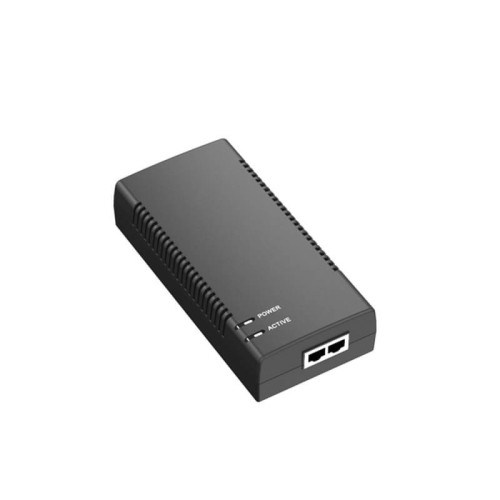

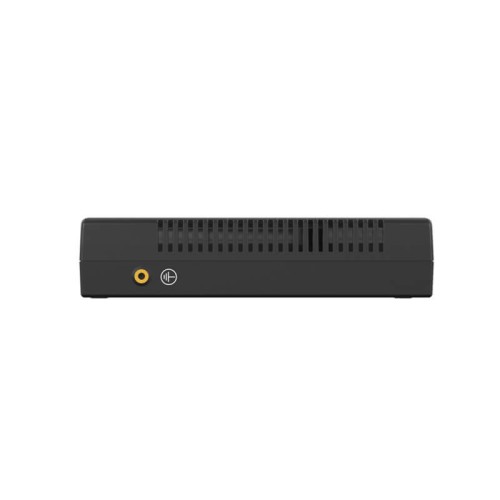

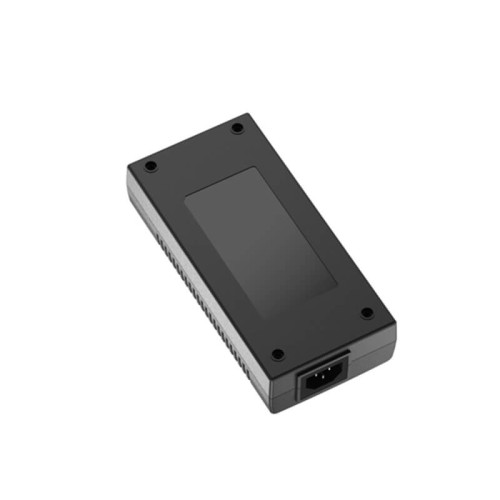

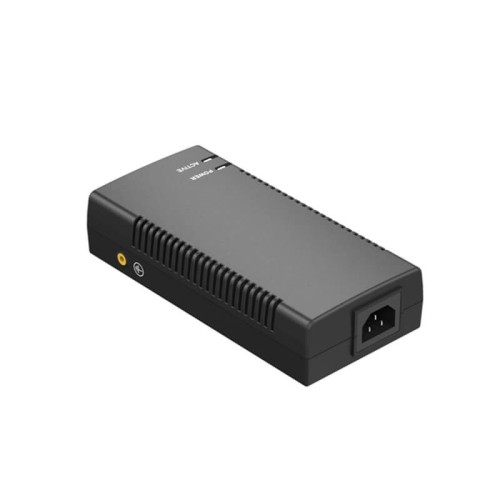

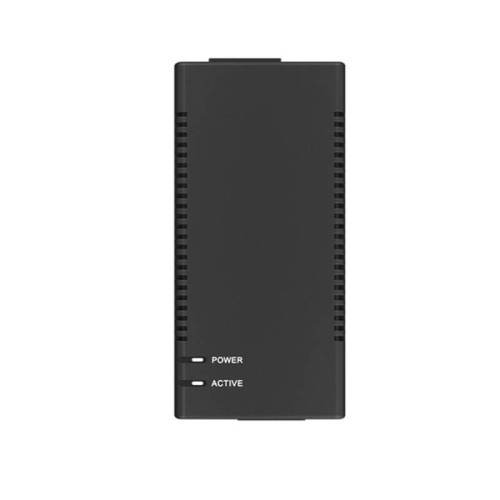

5G/10G POE Intector 55V 90W 2.0A Indoor thunder Single Port Midspan Injector 10Gbps
from
$106.46
Ex Tax: $106.46
- Stock: In Stock
- Model: JE00006491
- Weight: 5.80g
- SKU: JE00006491
Products Sold: 0
Product Views: 110
Ask a Question About This Product
- Description
Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radios, IoT applications, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.
Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with Wall-mounted. It operates with a wide input voltage of 100-240 VAC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).
| Parameter | Description |
| Key Features | Wall-mounted |
| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3bt |
| RoHS Compliance | |
| WEEE Compliance | |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: |
| 4/5 (+), 7/8 (–) and 3/6 (+), 1/2 (–) | |
| Output Power Voltage: 55Vdc | |
| User Port Power: 60W Guaranteen | |
| Input | AC Input Voltage: 100-240 Vac |
| Frequency: 47 to 63Hz (50/60Hz Typ.) | |
| AC Input Current:1.5A | |
| Working Environment | Operating Temperature: 0℃ to 40℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Storage Temperature: -20℃ to 70℃ | |
| Storage Humidity: 10% to 90%, non-condensation | |
| Operating Altitude: up to 5000meters | |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 |
| Common mode surge protection(10/700us): 6KV | |
| Differential mode surge protection (10/700us): 1.5KV | |
| Line-Earth 1.2/50us (8/20us): 6KV | |
| Line-Line 1.2/50us (8/20us): 4KV | |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV |
| Line-Line 1.2/50us (8/20us): 1KV | |
| Mechanical Characteristics | Case: Plastic |
| Color: Black | |
| Mounting: Wall-mounted | |
| IP Rated: IP40 | |
| Connectors: Shielded RJ-45*2 | |
| Size: 193mmX 85mmX 41mm | |
| Weight: 425g（15.0oz） | |
| LED Indicator | Power Indicator : Green |
| PoE Load Indicator: Green @≤30W | |
| Blue @＞30W≤60W | |
| Safety Approvals | cUL/UL/FCC/CE/PSE/SAA/BIS |
