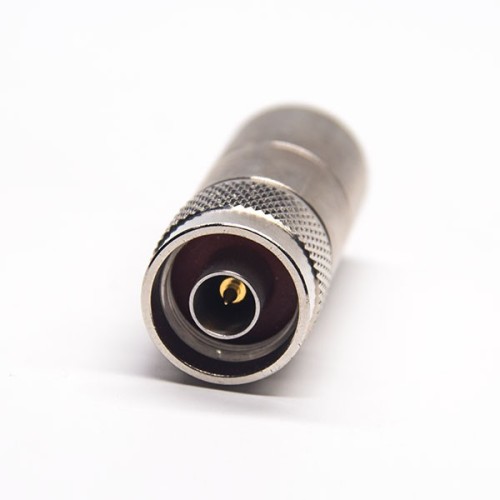

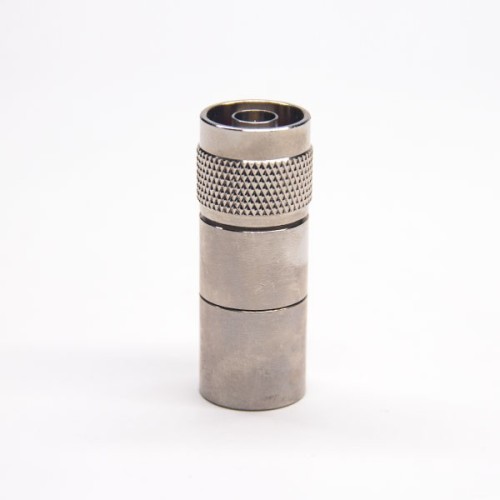

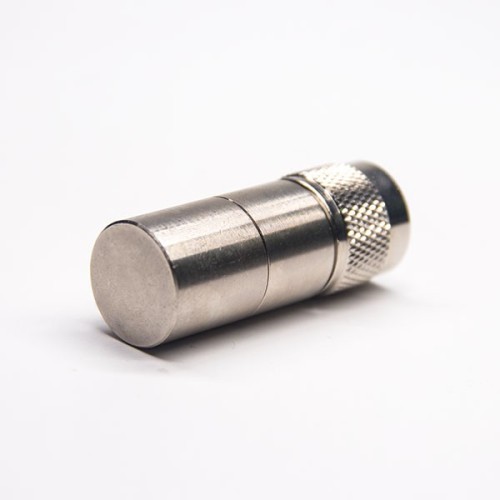

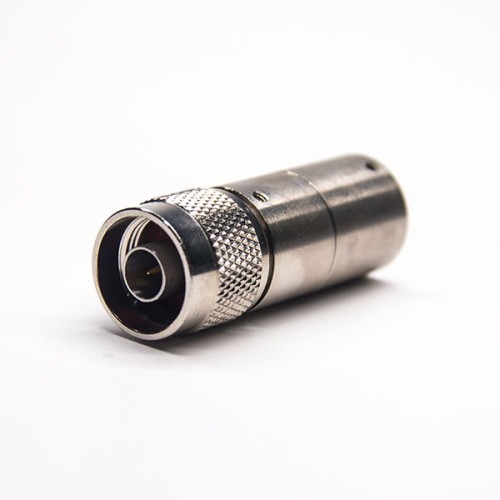

50Ohm N Type Connector Straight Type High Frequency Male Connector

50Ohm N Type Connector Straight Type High Frequency Male Connector
50Ohm N Type Connector Straight Type High Frequency Male Connector
50Ohm N Type Connector Straight Type High Frequency Male Connector
50Ohm N Type Connector Straight Type High Frequency Male Connector
50Ohm N Type Connector Straight Type High Frequency Male Connector
50Ohm N Type Connector Straight Type High Frequency Male Connector
50Ohm N Type Connector Straight Type High Frequency Male Connector
50Ohm N Type Connector Straight Type High Frequency Male Connector
50Ohm N Type Connector Straight Type High Frequency Male Connector

Features:

  • High Frequency Connector,Microwave Connector,N Connector,Male,50 Ohm,Standard,Straight,for cable,Crimp type,Waterproof
  • Excellent performance DC to 18 GHz
  • Low VSWR
  • Low Insertion Loss
  • Low RF LeakageSuperior reliability
- Write a review
from
$18.33
Ex Tax: $18.33
  • Stock: In Stock
  • Model: SAUTO-50-M-ST-S-CR-13130
  • Weight: 40.00g
  • SKU: SAUTO-50-M-ST-S-CR-13130
Products Sold: 0
Product Views: 229
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Steel
Terminal type Solder Type
Gender Male
Function Waterproof
Direction Straight
Polarity Standard
Impedance 50 Ω
Installation method Cable
Outer conductor connection Crimp
  • Description

Applications:

  • High Speed Digital
  • Instrumentation
  • Military
  • Aerospace
  • Satellite Communication Equipment (SATCOM)
  • Cable Assemblies
  • Test and measurement

50Ohm N Type Connector Straight Type High Frequency Male Connector

Electrical Characteristics

  • Impedance: 50 Ohm
  • Frequency range: DC~18 GHz
  • Voltage rating: 500 V(rms)
  • Center contact resistance: <1.0mΩ
  • Outer contact resistance: <0.2mΩ
  • Insertion loss: <.1 sqrt(f(GHz)) dB
  • VSWR: <1.30

Mechanical Characteristics

  • Center contact retention force: >20 N
  • Coupling test torque: 1.70 Nm
  • Durability: >500 cycles

Environmental Characteristics

  • Temperature Range：-55 ℃~+155 ℃
