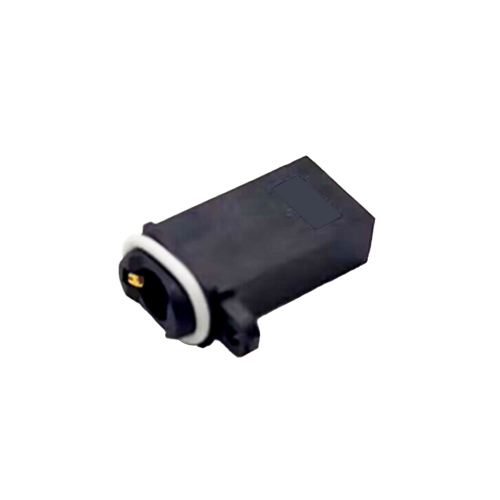

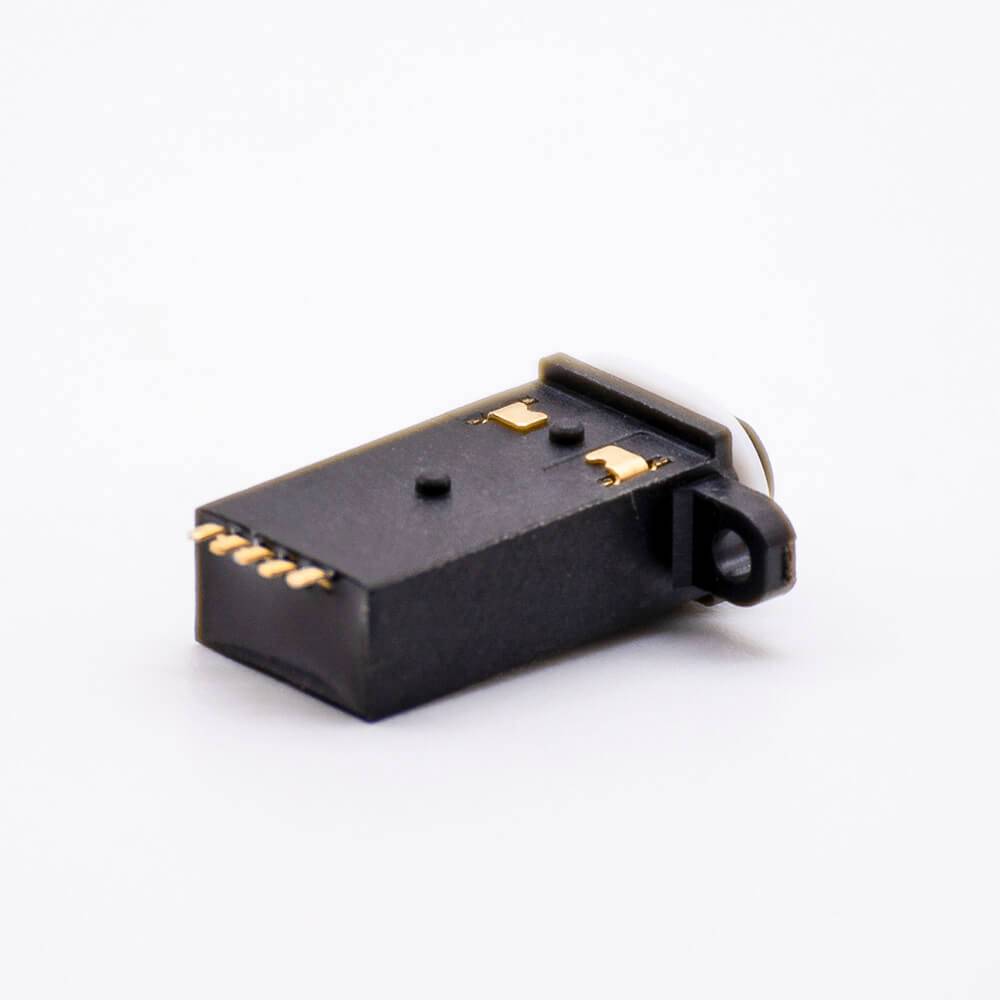

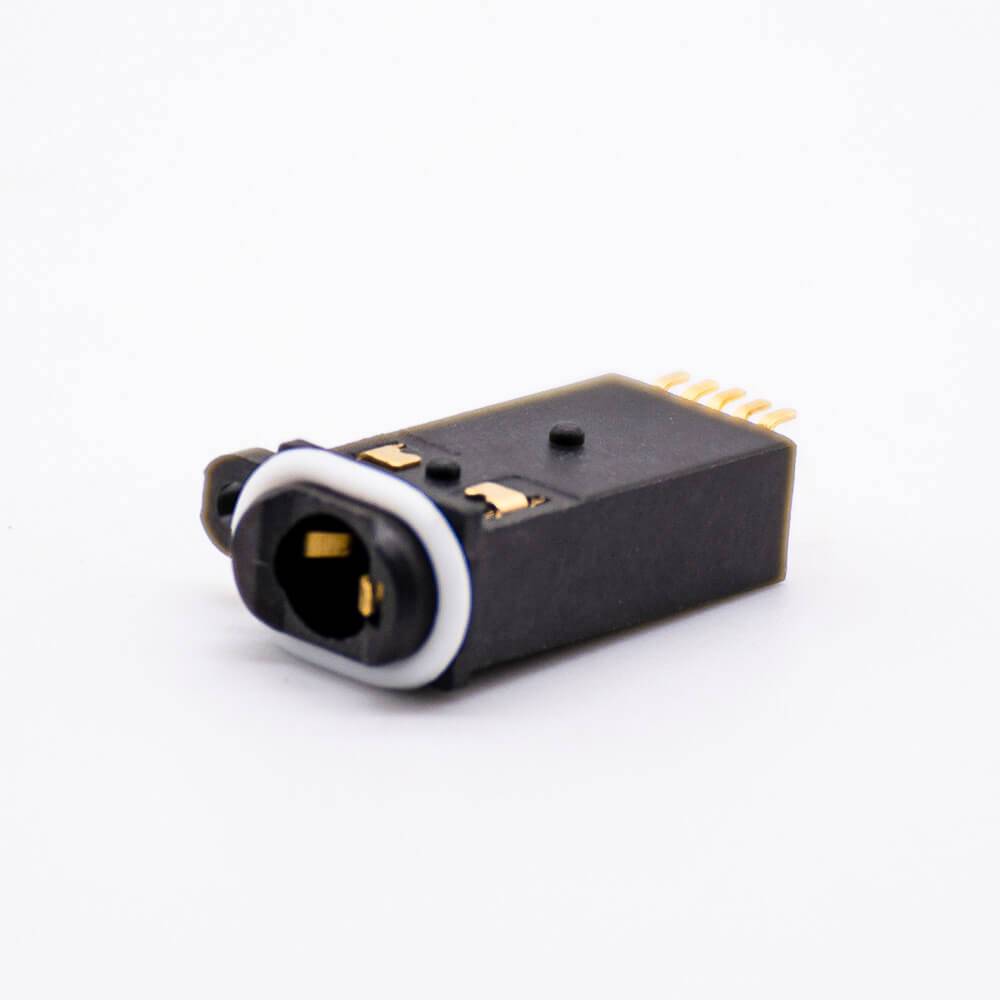

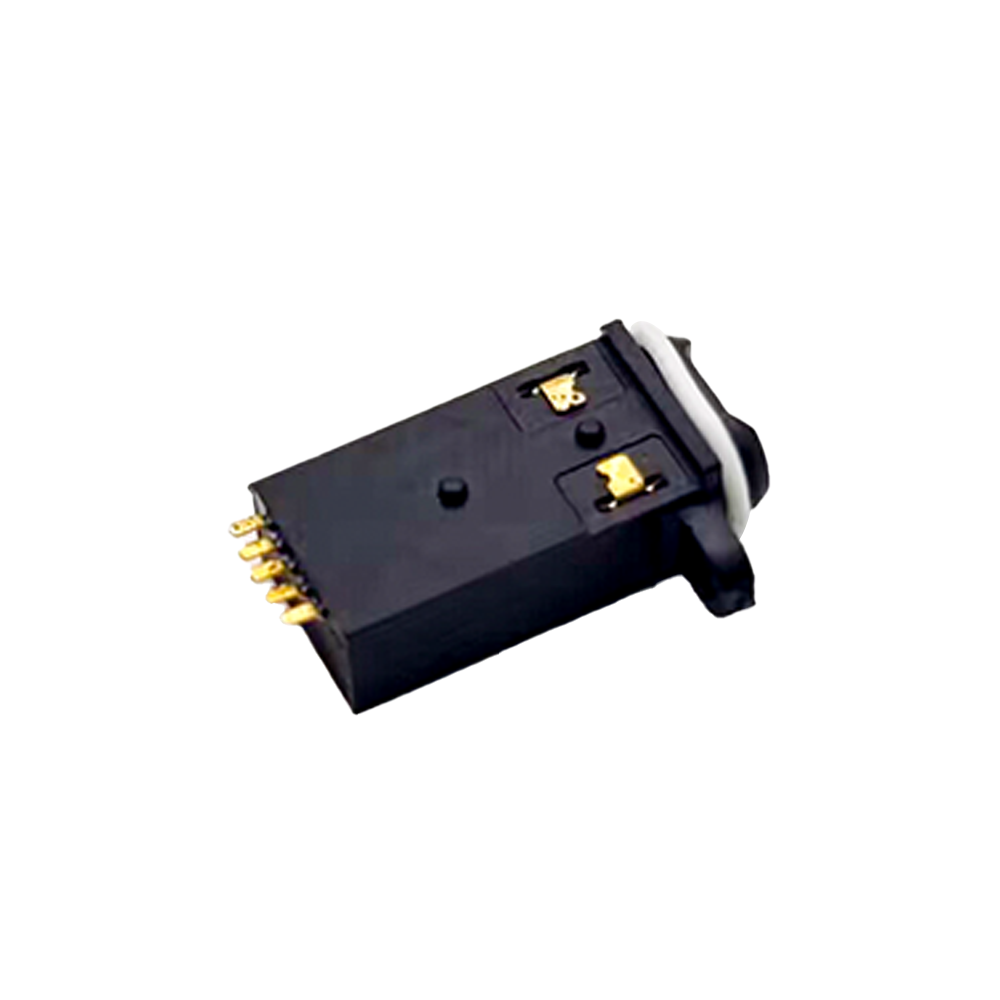

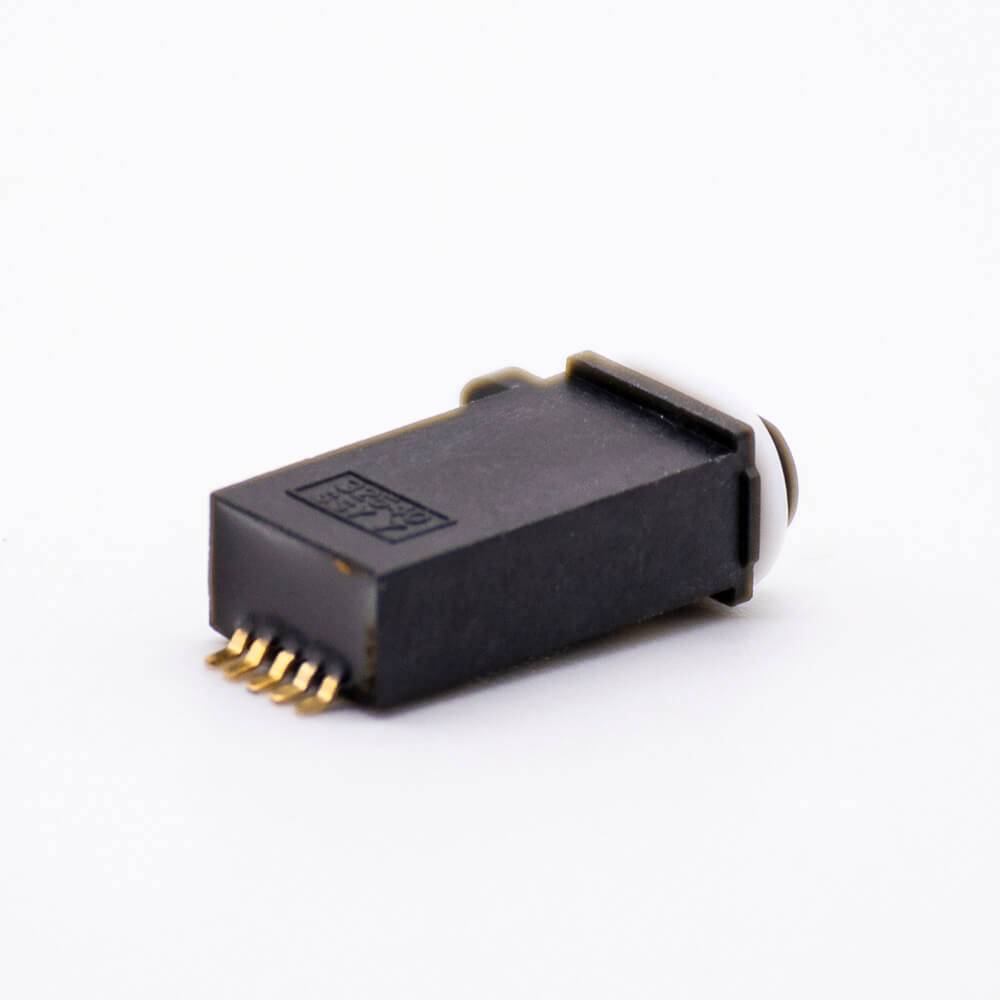

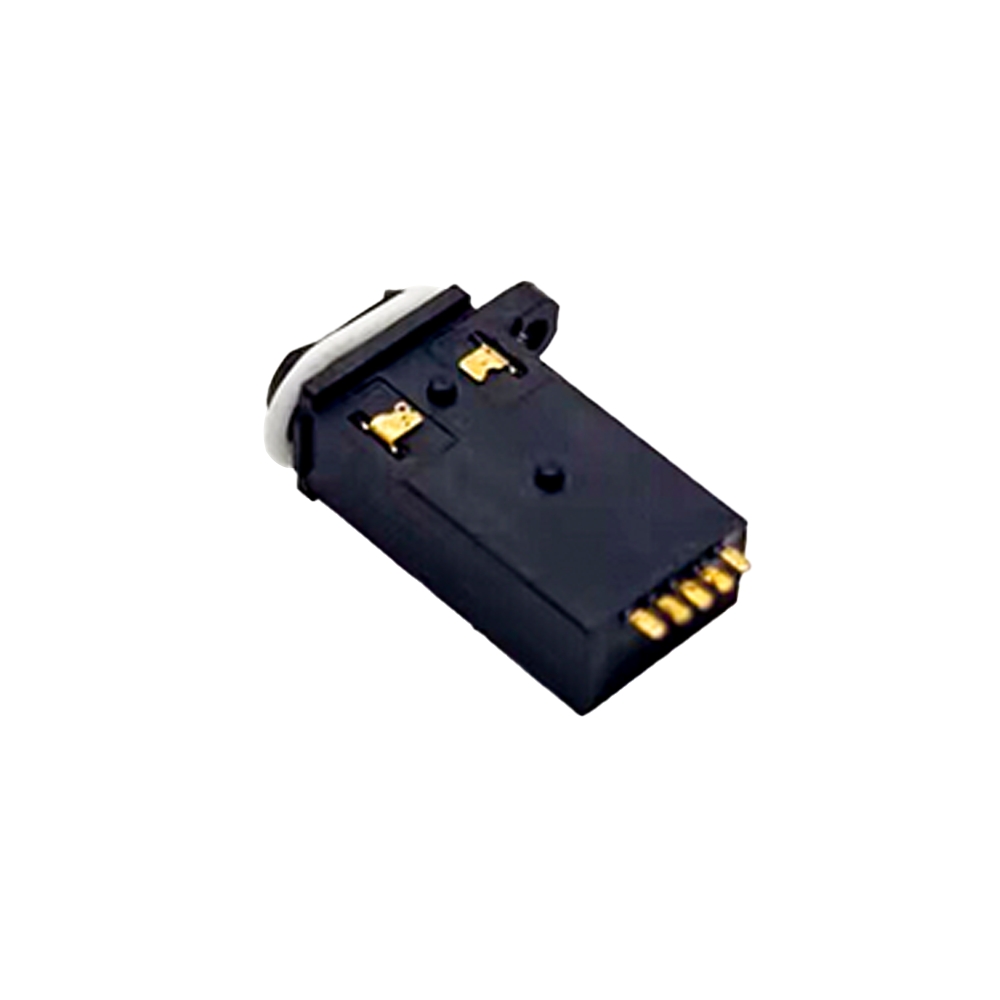

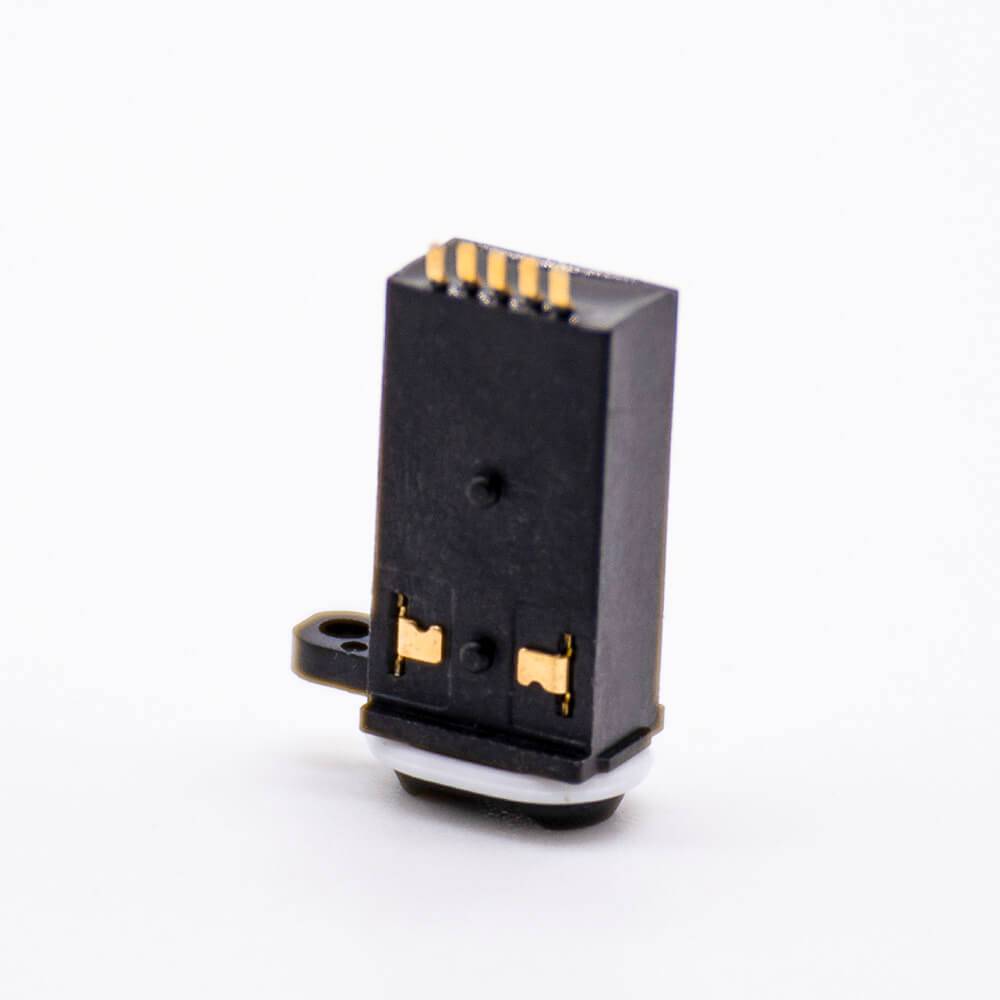

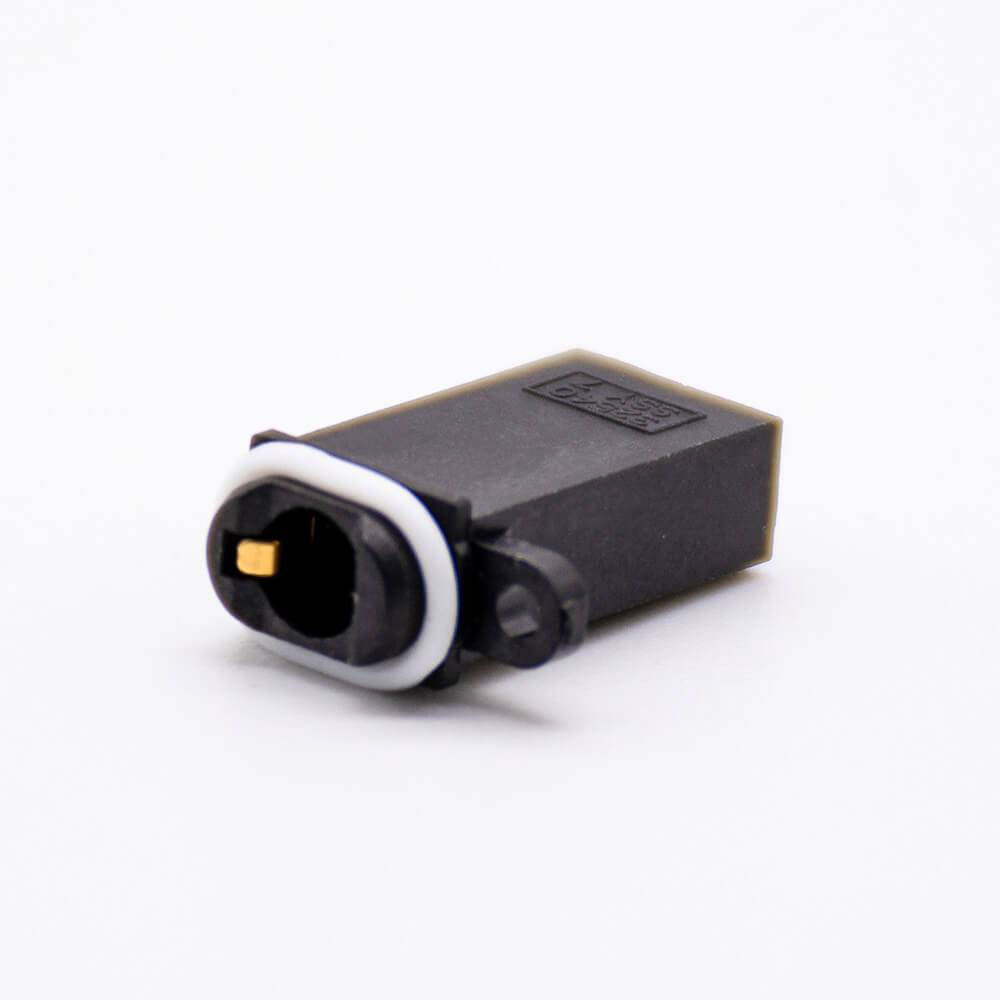

4 Pole headphone Jack Waterproof Earphone Jack 3.5mm 4 Pole SMT IP67
from
$1.75
Ex Tax: $1.75
10 or more $1.61
30 or more $1.49
50 or more $1.40
100 or more $1.31
200 or more $1.23
- Stock: In Stock
- Model: JE00006594
- Weight: 0.62g
- SKU: JE00006594
Products Sold: 0
Product Views: 20
Ask a Question About This Product
- Description
Main Application:
- Audio Products: MP3,MP4,DVD. Audio;
- Digital Products: digital camera, digital video and so on;
- Remote Control: the remote control of automobile domestic security products;
- Communication Products: mobile phone, vehicle-mounted phone, telephone set, building equipment, PDA and so on;
Technical Datasheet:
- Rated Load : 0.5A 50VDC
- Contact Resistance : ≤0.03Ω
- Insulation Resistance : ≥100MΩ DC250V
- Withstand Voltage : AC 500V(50/60Hz)/min
- Electrically life :100,000 cycles Min
- Operating Force : 160-250GF+-50GF
- Soldering Temperature : 260±5° 3s
- Material:Plastic
Environmental Characteristics:
- Environment Temperature :-25°C~+85°C
