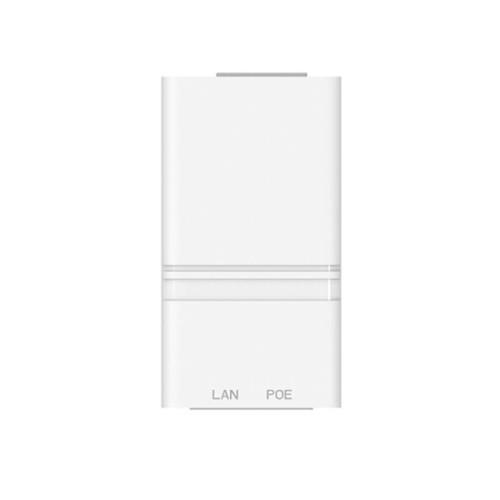

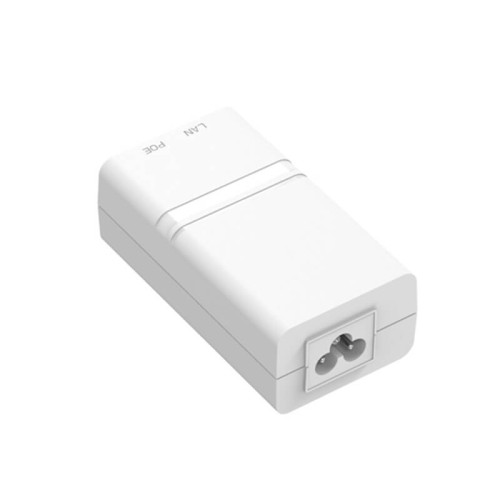

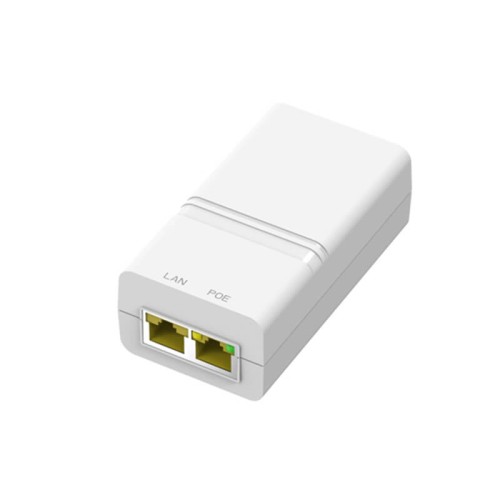

30W PoE Injecter single port midspan Injector with 2 Pair output to 30watts 48Vdc 0.625mp
from
$19.07
Ex Tax: $19.07
- Stock: In Stock
- Model: SAUTO-1-F-CBL-IP40-RO
- Weight: 5.80g
- SKU: SAUTO-1-F-CBL-IP40-RO
Products Sold: 0
Product Views: 196
Ask a Question About This Product
- Description

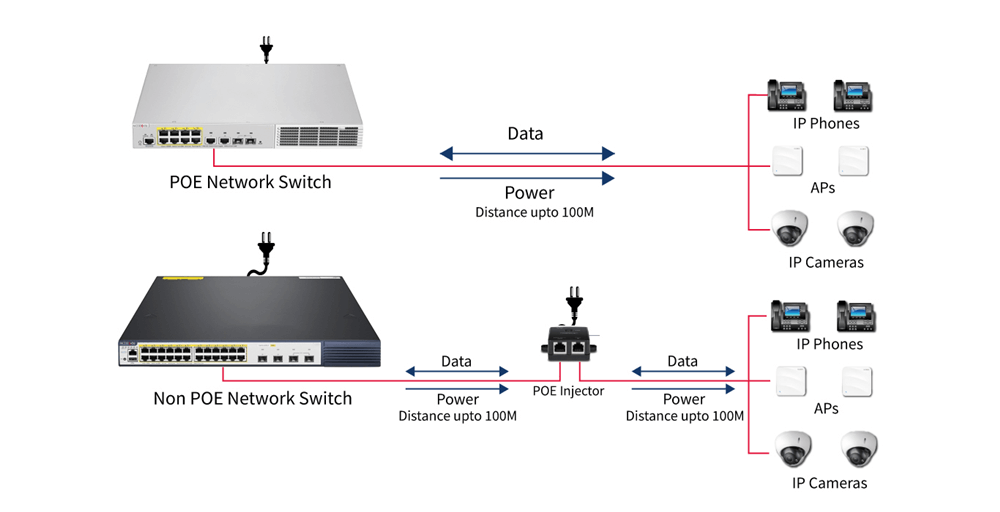

Designed for the passive powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.
Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with a Wall-plug mouted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables
| Parameter | Description |
| Key Features | Single-port |
| 10/100/1000Mbps | |
| Input 100-240Vac 1.0A 50/60Hz | |
| output 48Vdc 0.625A 30W | |
| Power pin: 4/5+,7/8- | |
| Power cable with US/EU optional | |
| AC input: 3wire | |
| Ports condition | LAN Port*1, PoE Output Port*1,AC input port*1 |
| Regulatory Compliance | passive |
| RoHS Compliance | |
| WEEE Compliance | |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: |
| 4/5(+), 7/8(-) | |
| Output Power Voltage: 48Vdc | |
| User Port Power: 30W Guaranteen | |
| Input | Input Voltage: 100-240Vac |
| Frequency: 50/60Hz Typ | |
| Working Environment | Operating Temperature: 0℃ to 40℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Storage Temperature: -20℃ to 70℃ | |
| Storage Humidity: 10% to 90%, non-condensation | |
| Operating Altitude: up to 2000meters | |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV |
| Line-Line 1.2/50us (8/20us): 1KV | |
| Mechanical Characteristics | Case: Plastic |
| Color: White | |
| Mounting: Wall-plug | |
| IP Rated: IP40 | |

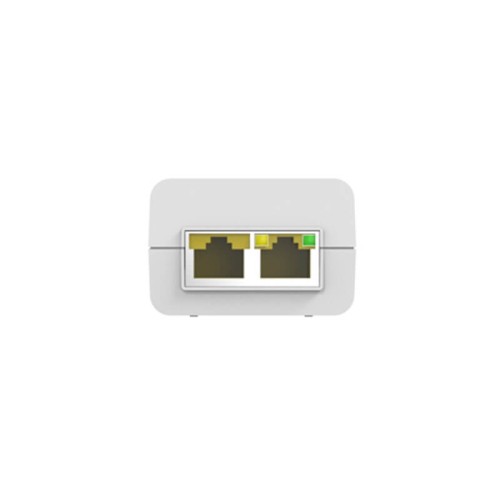

| Connectors: Shielded RJ-45*2 | |
| Size: 92*51*32mm | |
| Weight: 130g(0.35lb) | |
| LED Indicator | Power Indicator: Yellow |
| PoE Load Indicator: Green | |
| Safety Approvals | CE, FCC |
