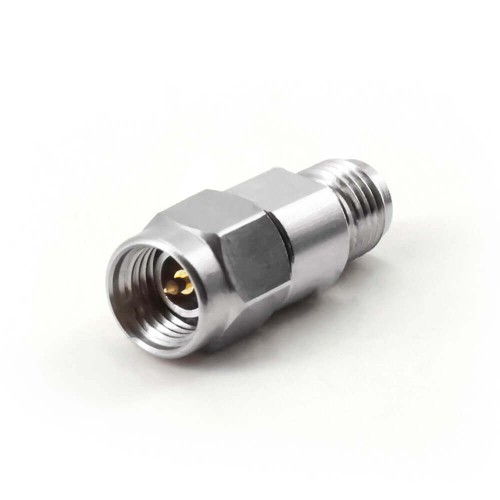

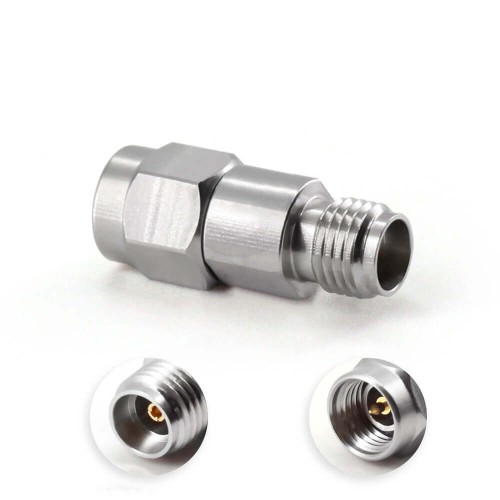

3.5Mm Male To Female Rf Coax Connector 33Ghz Stainless Steel Test Adapter

3.5Mm Male To Female Rf Coax Connector 33Ghz Stainless Steel Test Adapter
3.5Mm Male To Female Rf Coax Connector 33Ghz Stainless Steel Test Adapter
3.5Mm Male To Female Rf Coax Connector 33Ghz Stainless Steel Test Adapter
3.5Mm Male To Female Rf Coax Connector 33Ghz Stainless Steel Test Adapter
3.5Mm Male To Female Rf Coax Connector 33Ghz Stainless Steel Test Adapter

Features:

  • 3.5mm Connector, 3.5Mm male to 3.5 female , Straight,  Stainless Steel, High frequency RF coax connector;
  •  Operation from 0 to 34 GHz
  • Impedance: 50 Ω
  • Dielectric: Air
  • Outer conductor diameter:3.5mm
  • Compatible with SMA and 2.92mm
  • VSWR: ≤ 1.13 up to 26.5 GHz
- Write a review
from
$68.91
Ex Tax: $68.91
  • Stock: In Stock
  • Model: SRF-3-M-ST-S
  • Weight: 0.06kg
  • SKU: SRF-3-M-ST-S
Products Sold: 0
Product Views: 225
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Steel
Connector A Direction Straight
Connector B Direction Straight
Connector A Gender Male
Connector A Type 3.5mm
Connector B Type 3.5mm
Connector B Gender Female
  • Description

Appliance:

  • Cellular/Broadband amplifiers
  • Radar systems
  • High-speed routers and switches
  • Microwave filters
  • Wireless infrastructures
  • Remote sensing and metering
  • RFID
  • GPS antennas

3.5Mm Male To Female Rf Coax Connector 33Ghz Stainless Steel Test Adapter

Electrical Characteristics

  • Impedance：50 ohm
  • Frequency Range:0 to 34 GHz
  • Rated Voltage:1500 VRMS
  • Insulation Resistance:1000MΩ  (min.) at 500V DC
  • Contact Resistance:3m Ω（max.)
  • Outer C ontact  Resistance:2m Ω（max.)
  • Shielding Effectiveness:≥ 100 dB
  • Inter-mate ability: SMA, 2.92mm

Mechanical Characteristics

  • Connector Durability：1000 mating cycles min
  • Mating Torque: 8 lb inches / 90 N cm

Environmental Characteristics

  •  Temperature Range：-65°C to +165°C



Material:

Part Material Finish
Body Stainless Steel Stainless stee
Center Contact  Pin Copper Alloy Au Plating
Insulator PTFE white
