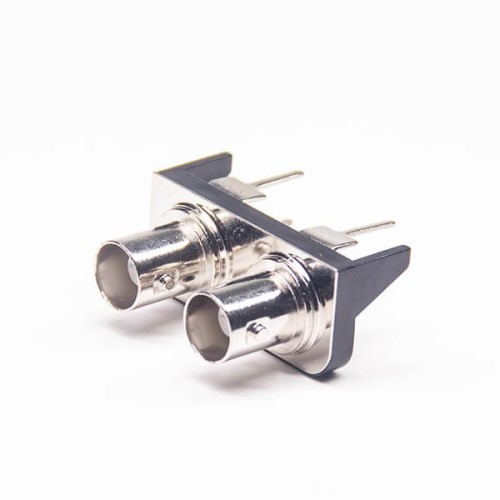

20pcs 2pcs Dual BNC Connector Female Straight For PCB

Electrical Characteristics

• Impedance：75 ohm
• Frequency Range: 0~3Ghz
• VSWR: Straight type ≦ 1.2max / R/A type ≦ 1.3max
• Withstanding Voltage: 500 V rms
• Working Voltage: 170 V rms
• Center Contact Resistance ≦ 10 mΩ
• Outer Contact Resistance ≦ 5 mΩ
• Insultation Resistance ≧ 1000 mΩ
• RF Leakage -100dB min @1GHz

Mechanical Characteristics

• Coupling: 3/8-32 thread
• Cable Retention: 20 lbs min.
• Durability(mating) ≧ 500 cycles

Environmental Characteristics

• Temprature Range: -40°C ~ +60°C

Material:
