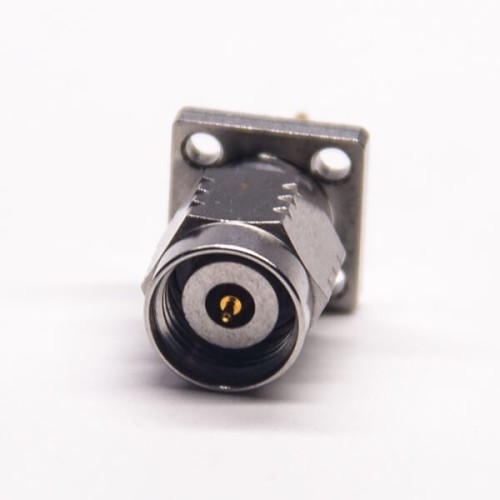

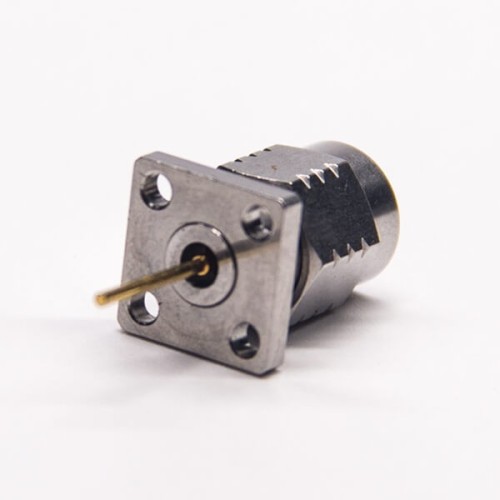

2.4mm Microwave Connector Male Flange with 4 Holes

2.4mm Microwave Connector Male Flange with 4 Holes
2.4mm Microwave Connector Male Flange with 4 Holes
2.4mm Microwave Connector Male Flange with 4 Holes
2.4mm Microwave Connector Male Flange with 4 Holes
2.4mm Microwave Connector Male Flange with 4 Holes
2.4mm Microwave Connector Male Flange with 4 Holes
2.4mm Microwave Connector Male Flange with 4 Holes

Features:

  • High frequency connector,Microwave connector,2.4mm,Male, 50 Ohm，Straight,PCB/Panel Mount,Flange Mounting,Through Hole,Stainless Steel
  • Excellent performance DC to 50 GHz
  • Compatible with 1.85mm Connector Series
  • Air Dielectric
  • Ruggedized Construction for Repeatability and Reliability

Appliance:

  • High Speed Digital
  • Instrumentation
  • Military
  • Aerospace
  • Satellite Communication Equipment (SATCOM)
  • Cable Assemblies
  • Test and measurement
- Write a review
from
$39.99
Ex Tax: $39.99
  • Stock: In Stock
  • Model: SM2-4-4-M-FF-S
  • Weight: 4.00g
  • SKU: SM2-4-4-M-FF-S
Products Sold: 0
Product Views: 234
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Steel
Terminal type Solder Type
Installation characteristics 4 Hole Flange/Through Hole
Gender Male
Function Other
Direction Straight
Polarity Standard
Impedance 50 Ω
Installation method Cable/PCB Mount/Panel Mount
Outer conductor connection Without
  • Description

2.4mm Microwave Connector Male Flange with 4 Holes

Electrical Characteristics

  • Impedance: 50 Ohm
  • Frequency range: DC~50GHz
  • Voltage rating: 150 V(rms)
  • Center contact resistance: <4.0mΩ
  • Outer contact resistance: <2.5mΩ
  • Insertion loss: <.1 sqrt(f(GHz)) dB
  • VSWR: <1.30

Mechanical Characteristics

  • Center contact retention force: >20 N
  • Coupling test torque: 1.65 Nm
  • Recommended torque: 0.8 Nm to 1.10 Nm
  • Durability: >500 cycles

Environmental Characteristics

  • Temperature Range：-65 ℃~+165 ℃
