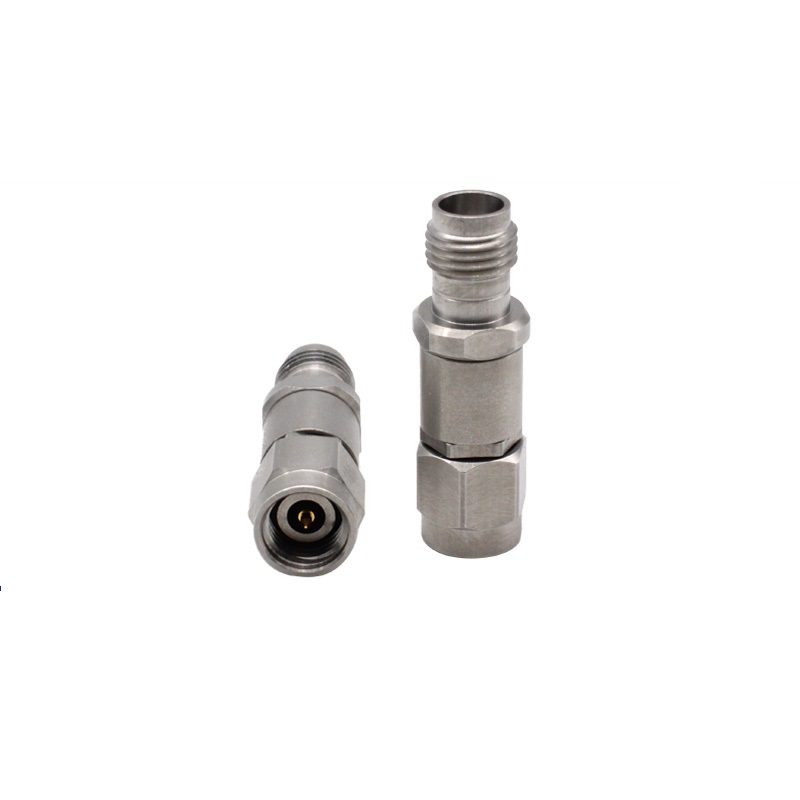

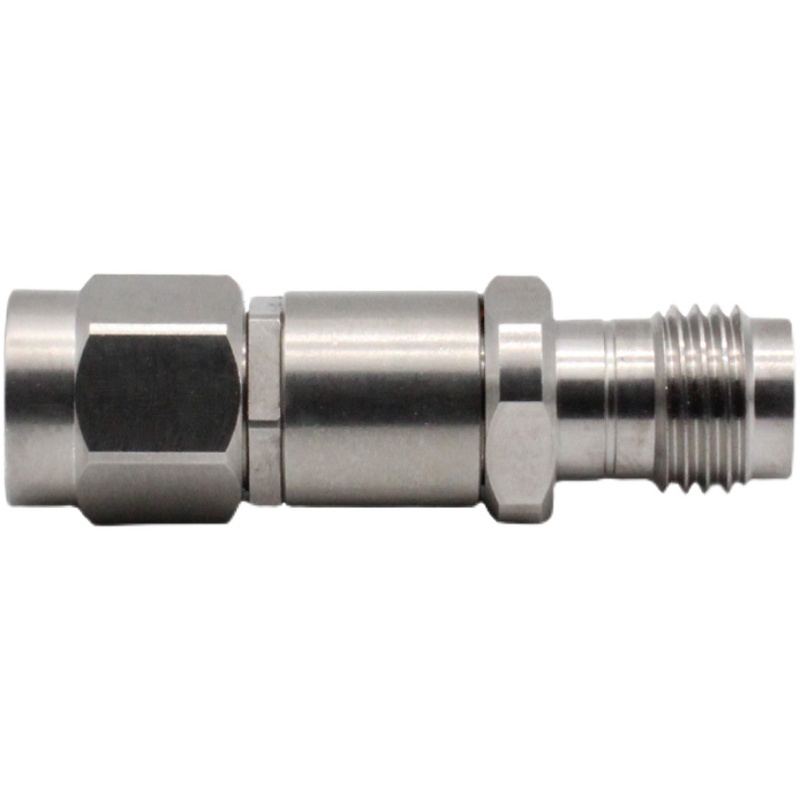

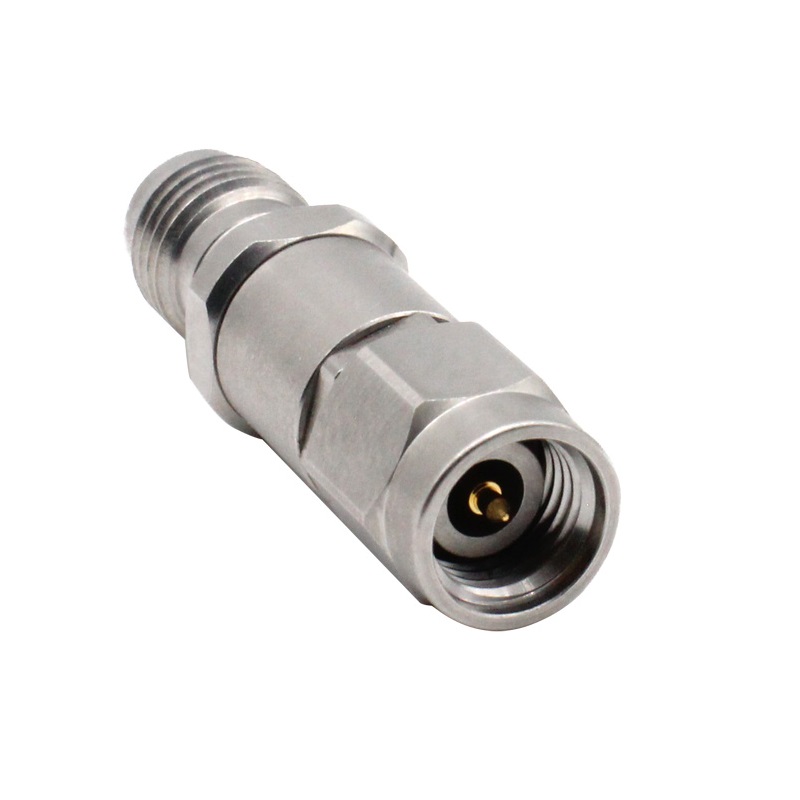

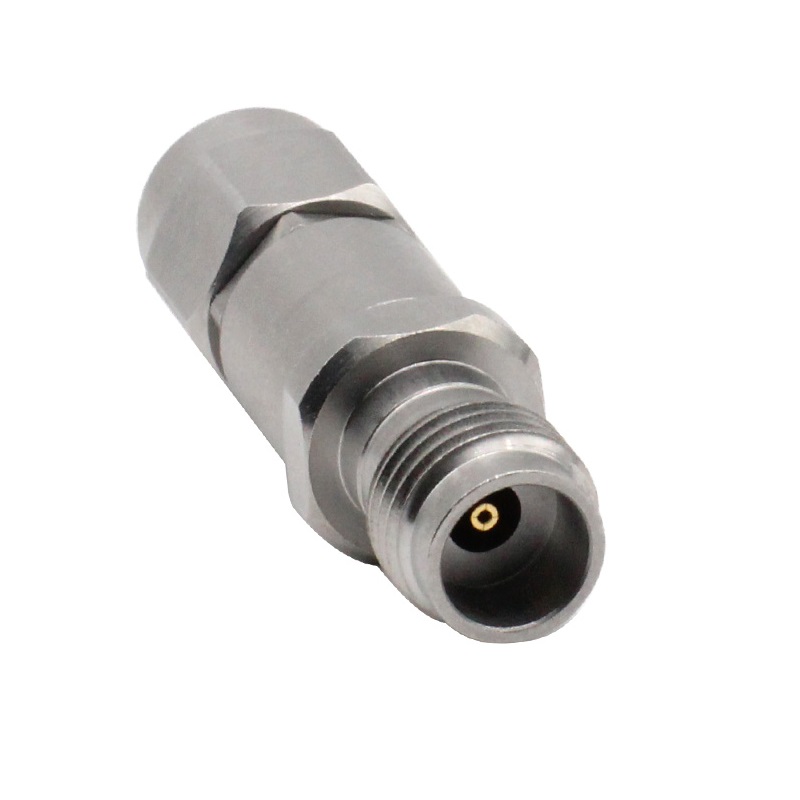

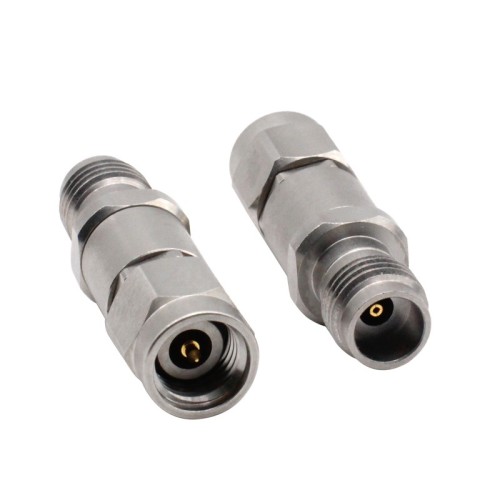

2.4mm female to 2.92 Male Microwave Adapter DC to 40GHz 50 Ohm Stainless Steel Body
from
$35.29
Ex Tax: $35.29
- Stock: In Stock
- Model: SMICRO-2-4-2-92-M-STR-DC-40GHZ
- Weight: 300.00g
- SKU: SMICRO-2-4-2-92-M-STR-DC-40GHZ
Products Sold: 0
Product Views: 243
Ask a Question About This Product
- Description
Part Number: EB-DRF-0112-C
High Frequency; DC to 40 GHz, VSWR : 1.20 : 1 (Max) @ 40 GHz, Material: Stainless Steel
Material : Body :Stainless Steel(Passivated), Pin : Berylllium Copper(Gold plated), Impedance : 50 Ohm
These precision Microwave Adapter interfaces ensure an excellent microwave performance up 40 GHz
Advantages
- Small Size
- High Reliable
- Good Mechanical Performance
- Wide Frequency Range from DC to 40GHz
Applications
- General Purpose Test
- Field Replacement Connector
- Rack and Panel Mount Application
Key Features
| Polarity | Standard |
| Interface | 2.92mm to 2.4mm |
| Connector Type | Adapter |
| Connector Gender | Male to female |
| Impedance | 50Ω |
| Body Shape | Straight |
| Attachment Method | Field Replacement |
Performance Features
| Frequency Range | DC~40GHz |
| VSWR： | DC~40GHz: 1.15:1 (Max) |
| Contact Resistance | Centre Conductor ≤3.0mΩ |
| Outer Conductor ≤2.0mΩ | |
| Insulation Resistance | ≥3000mΩ |
| Withstanding Voltage | 750V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
Material Specifications
| Housing | Type 303 Stainless Steel |
| Polished & Passivated | |
| Centre Contact | Beryllium Copper Plated |
| Gold (MIL-G-45204) | |
| Insulators | PEI or PEI & PTFE |
