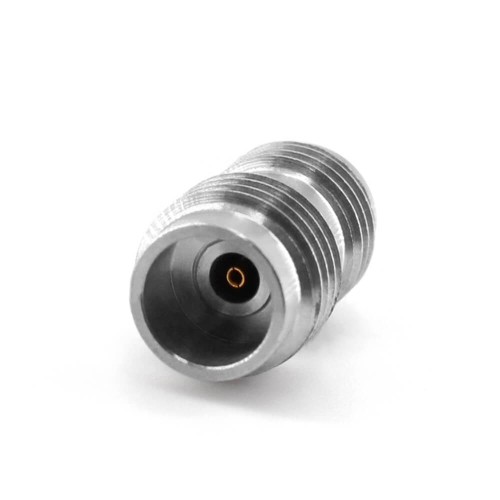

1.85mm Female 1.85-Kfd Rf Connector 67Ghz Threaded
from
$106.89
Ex Tax: $106.89
- Stock: In Stock
- Model: S1-85MM-F-ST-CBL-67G
- SKU: S1-85MM-F-ST-CBL-67G
Products Sold: 0
Product Views: 264
Ask a Question About This Product
- Description
DC to 27.0 GHz …........1.10:1 max
27.0 to 40.0 GHz ……...1.15:1 max
40.0 to 50.0 GHz ……...1.18:1 max
50.0 to 67.0 GHz ……...1.25:1 max
- Outer conductor diameter: 1.85 mm
- Interface Standards: IEEE 287-2007
Appliance:
- Mil-Aero
- Telecommunication
- RFID
- Antennas
- Test and measurement
- Radar systems
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range:DC to 67 GHz
- VSWR:1.03 + .005 f
- Insertion Loss:.04 √ f
- Shielding Effectiveness:≥ 100 dB
Mechanical Characteristics
- Mating Torque:5 - 7 in - lbs
- Connector Durability：500 mating cycles min
- Inter-mate ability:2.4mm
Environmental Characteristics
- Temperature Range：-65°C to +165°C
Material:
| Part | Material | Finish |
| Body | Stainless Steel | sliver |
| Center Contact Pin | cube gold plated | gold |
| Insulator | PEI | white |
